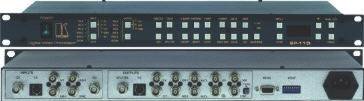

SP-11D,
Multi-Standard/Multi-Format Video Processor SP11D SP11-D
|
|
|
|
|
The SP-11D is a
broadcast quality, video processor that functions as a proc-amp, a
TBC, a format converter and a standards converter for composite
video, s-Video (Y/C), RGB/component video (YUV or RGBS) and SDI
video signals. The original and processed image can be viewed
simultaneously with the split screen output enabled.
Typical
Applications:
|
|
|
FEATURES
|
|
-
Bandwidth - 5MHz (-
0.5dB).
-
Multi-Format -
Selected input is simultaneously output as composite video,
s-Video, component video (YUV or RGBS) and SDI.
-
Mult-Standard - NTSC
(3.58.4.43), PAL (B/D/G/H/I/M/N), & SECAM.
-
Standards Conversion
- Any input format and standard can be converted to any output
format and standard
-
Proc Amp Control -
Contrast, brightness, H/V sharpness, level/gain (R, G, B, R-Y,
& B-Y).
-
Time Base
Corrector.
-
Screen Splitter -
Simultaneous display of original video and processed video on a
single screen (adjustable).
-
Timing Control -
Video delay, H/V delay, & SCH phase.
-
Switching
Synchronization - Synchronize either to external reference or
internal genlock sync generator.
-
Looping Sync
Input.
-
Selectable Sync
Signal Termination.
-
Resolution -
10-bits.
-
Memory Locations -
Store 15 multiple switches as presets to be recalled and executed
when needed.
-
Control - Front
Panel and RS-232.
-
Front Panel
Lockout.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
| CV INPUT/OUTPUT: |
1Vpp/75Ω on BNC connectors. |
|
|
s-VIDEO
INPUT/OUTPUTS: |
1Vpp/75Ω (Y), 0.3Vpp/
75Ω on 4p connectors. |
|
| COMPONENT INPUT/OUTPUT: |
Y/R-Y/B-Y (1Vpp/0.7Vpp/0.7Vpp)/ 75Ω (or RGB/S) on BNC
connectors. |
|
|
SDI INPUT/OUTPUT: |
SMPTE-259M, ITUR BT.601 on BNC
connectors. |
|
| GENLOCK INPUT: |
Looped 75Ω/Hi-Z on BNC connectors. |
|
|
VIDEO STANDARDS: |
PAL-B/D/G/H/I/M/N, NTSC-3.58/4.43,
SECAM. |
|
| DIGITAL RESOLUTION: |
10 bit. |
|
|
VIDEO BANDWIDTH: |
0.5dB to 5MHz. |
|
| SIGNAL TO NOISE RATIO: |
60dB. |
|
|
K-FACTOR: |
0.4%. |
|
| DIFF. GAIN: |
1% Deg. |
|
|
DIFF. PHASE: |
1%. |
|
| LUMA NON-LINEARITY: |
1%. |
|
|
CHROMA/LUMA DELAY: |
< 15ns. |
|
| MEMORY: |
Non-volatile memory for storage of 16
setups. |
|
|
CONTROLS: |
Front-panel and RS-232: Contrast,
brightness, video gain, color, hue, H/V sharpness, SCH phase,
delay, H/V shift; R, G, B, R-Y, B-Y level; screen splitter (process
to bypass); freeze; panel lock |
|
| POWER SOURCE: |
Universal, 90-240VAC,
50/60Hz. |
|
|
Dimensions: |
19" 1U,
rack-mountable. |
|
|
Weight: |
2.6kg. (5.7 lbs.)
approx. |
|
|
Accessories: |
Power cord, Null-modem
adapter. |
|
| |
|
|
|
|
