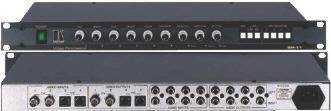

SP-11, Video
Audio Processor SP11
|
|
|
|
|
The SP-11 is a high
performance video processor for composite and s-Video (Y/C) signals
with unbalanced stereo audio. The original and processed image can
be viewed simultaneously with the split screen output enabled.
Typical
Applications:
-
Video control and
correction in duplication and production studios
-
Camera control,
luminance and white balance correction.
-
Medical, industrial
and military image enhancement.
-
Composite to YC
switching and bi-directional transcoding.
|
|
|
FEATURES
|
|
-
Bandwidth (Y) -
65MHz (- 3dB).
-
Built-in
Bi-Directional Format Conversion - The SP-11 outputs two composite
video and two s-Video signals simultaneously, regardless of input
selection.
-
Proc Amp Control -
Level (Gain), contrast, definition (sharpness), color (saturation),
red, green blue, black level, and adjustable screen
splitter
-
Screen Splitter -
Simultaneous display of original video and processed video on a
single screen (adjustable).
-
Linear or
Logarithmic Control - Contrast and/or sharpness
(selectable).
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
| Inputs: |
2 composite video, 1Vpp/75Ω on BNC connectors, 2 YC -
1Vpp/75Ω (Y), 0.3V/75Ω (C), on 4p connectors.4 stereo
audio, 1Vpp/50kΩ on RCA connectors. |
|
|
Outputs: |
2 composite video, 1Vpp/75Ω on
BNC connectors, 2 YC - 1Vpp/75Ω (Y), 0.3V/75Ω (C), on
4p connectors.4 stereo audio, 1Vpp/100Ω on RCA
connectors. |
|
| Bandwidth (-3dB): |
65MHz; (Y) (video).20kHz. (audio). |
|
|
DIFF. GAIN: |
1.15%. |
|
| DIFF. PHASE: |
0.24Deg. |
|
|
K-FACTOR: |
1.7%. |
|
| VIDEO S/N: |
73dB. |
|
|
INPUT SELECTOR: |
Vertical Interval. |
|
| AUDIO S/N RATIO: |
86dB. |
|
|
CONTROL: |
Video gain (Fade to + 6dB), black
level, contrast, definition, color saturation (- 30B to + 6dB) red,
green, blue controls (- 40dB to + 6dB), screen splitter (process to
bypass). |
|
| COUPLING: |
DC (video); AC (audio.) |
|
|
AUDIO THD: |
0.019%. |
|
| POWER SOURCE: |
230VAC, 50/60Hz, (115VAC, U.S.A.)
13.8VA. |
|
|
Dimensions: |
19 inch (W), 7 inch (D), 1 U (H)
rack mountable. |
|
|
Weight: |
2.9kg. (6.4lbs.)
approx. |
|
|
Accessories: |
Power
cord. |
|
| |
|
|
|
|
