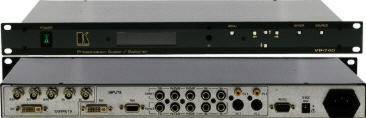

VP-740,
Presentation Switcher / Scaler VP740
|
|
|
|
|
The VP-740 ProScale
(industrial version) and the VP-740 ScaleMagix (consumer version)
are 8-input scaler/switchers. They scale any composite, s-Video
(Y/C), component video (YUV), DVI video or computer graphics video
signal up or down to a selectable graphics or HDTV output
resolution, and provide glitch-free switching between sources
through FTB™ (fade-thrublack)switching technology.
Typical
Applications:
|
|
|
FEATURES
|
|
-
K-Storm™
Scaling Technology – Kramer’s extremely high
performance scaling technology. High quality 3: K-Storm™
Scaling Technology – Kramer’s extremely high
performance scaling technology. High quality 3: 2 and 2:2 pull down
de-interlacing and full up and down scaling of computer graphics
video input signals. 2 and 2:2 pull down de-interlacing and full up
and down scaling of computer graphics video input
signals.
-
Fade-Thru-Black
(FTB™) Switching - The video fades to black and then the new
input fades from black for glitch-free and smooth switching. The
output signal provides constant sync so the display never
glitches.
-
K-ITT™
Picture-in-Picture Image Insertion Technology - Ultra stable
picture-in-picture image insertion capability. Any video source can
be inserted into a computer graphics video source and vice versa
with positioning and sizing controls. A unique splitscreen mode (2
images side-by-side) is also available.
-
VP-740
ScaleMagix™ - Consumer version cabinet.
-
8 Video Inputs - 2
composite video, 2 s-Video (Y/C), 2 component video (RGBHV/YUV) on
5 BNCs, 1 HD-15F, and 1 DVI-D (on a DVI-I
connector).
-
Dual Output
Connectors - 1 DVI-D (on a DVI-I connector) and 1 RGBHV/YUV (on 5
BNC’s).
-
HDTV Output
Resolutions - 480p, 720P and 1080i in component format on 3 BNCs,
and a DVI output connector simultaneously.
-
Multiple Computer
Graphics Output Resolutions - including a user-defined output
resolution with selectable refresh rates.
-
Multi-Standard Video
Signal Compatibility - PAL, SECAM, & NTSC
(3.58/4.43).
-
Multiple Aspect
Ratio Selections - 4x3 or 16x9, anamorphic, letter box, and user
definable settings.
-
HDTV Compatible
Component Inputs.
-
Built-in Time Base
Corrector - Stabilizes video sources with unstable
sync.
-
Multiple Color Space
- Output RGB or YUV (Selectable).
-
Built-in Proc-Amp -
Color, hue, sharpness, contrast, and brightness are set
individually for each input.
-
Front Panel
Lockout.
-
Front Panel
Display.
-
Freeze
Frame.
-
Audio
Mute.
-
Video Blanking -
Blue or black screen.
-
Zoom (100% to
400%).
-
Flexible Control
Options - Front panel buttons, IR. remote (with on-screen menus)
& RS-232.
-
Worldwide Power
Supply -100-240V AC.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
2 x CV on RCA connectors; 2 x YC on
4p connectors; 2 x RGBHV/YUV on RCA connectors; 1 x VGA/UXGA on an
HD-15F connector; 1 x DVI-D (Not HDCP Compliant); 1x RS-232 on a
DB-9 connector. |
|
|
OUTPUTS: |
1 x DVI-D (Not HDCP Compliant); 1 x
RGBHV/YUV on BNC connectors. |
|
|
SIGNAL FORMAT: |
Video NTSC, NTSC4.43, PAL, PAL-M,
PAL-N, PAL-60, SECAM. HDTV 480i/480p, 540p, 576i/576p, 720p, 1080i
Graphics: VGA, SVGA, XGA, SXGA, UXGA,Mac, SUN. |
|
|
SCANNING FREQUENCY: |
Pixel Clock 170MHz. Horizontal 15.63
~ 91kHz, auto/manual select. Vertical 50 ~ 100Hz, auto/manual
select. |
|
|
FEATURES: |
Display Aspect Ratio 16:9, 4:3,
Anamorphic, Letter Box, Film-mode Detection 3:2/2:2 Pull-Down
Recovery; Y/C separation 3D Y/C Comb Filter; Picture-in-Picture
Graphic-on-Video, Video-on-Graphic; Any size, Any location, Direct
Swap; Image Parameters Factory-defined x 3 sets; User-definable x 3
sets per channel. |
|
|
CONTROLS: |
Front panel; OSD; IR Remote Control;
RS-232. |
|
|
POWER SOURCE: |
Input Voltage 90 ~ 240Vac +/- 10%,
50/60 Hz, 40VA. |
|
|
DIMENSIONS: |
48.2cm x 23.6cm x 4.4cm (19"
x 9.3" x 1.72") W, D, H. |
|
|
WEIGHT: |
3.35 kg. (7.4 lbs.)
approx. |
|
|
ACCESSORIES: |
Power Cord, IR Remote control, null
modem adapter. |
|
| |
|
|
|
|
