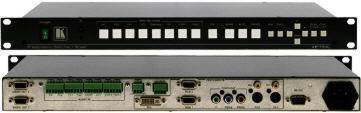

VP-724XL,
ProScale™ Digital Switcher / Scaler VP724XL VP724-XL
|
|
|
|
|
The VP-724xl is an
8-input scaler/switcher with unbalanced stereo audio. It scales any
composite, s-Video (Y/C), component video (YUV), DVI video or
computer graphics video signal up or down to a selectable graphics
or HDTV output resolution and provides glitch-free switching
between sources through FTB™ (fade-thru-black) switching
technology.
Typical
Applications:
-
Projection systems
in conference rooms, boardrooms, auditoriums, hotels and
Churches
-
Production studios,
rental and staging
-
Any application
where high quality conversion and switching of multiple and
different video signals to graphical data signals is required for
projection purposes
|
|
|
FEATURES
|
|
-
K-Storm™
Scaling Technology - Kramer’s extremely high performance
scaling technology. High quality 3:2 and 2:2 pull down
de-interlacing and full up and down scaling of computer graphics
video input signals.
-
Fade-Thru-Black
(FTB™) Switching - The video fades to black and then the new
input fades from black for glitch-free and smooth switching. The
output signal provides constant sync so the display never
glitches.
-
K-ITT™
Picture-in-Picture Image Insertion Technology - Ultra stable
picture-in-picture image insertion capability. Any video source can
be inserted into a computer graphics video source or vice versa
with positioning and sizing controls. A unique Split-Screen mode (2
images side-by side) is also available
-
8 Video Inputs -
including 2 15-pin HD computer graphics video
inputs.
-
Dual Output
Connectors - 2 computer graphics video outputs on 15-pin HD
connectors.
-
HDTV Output
Resolutions - 480p, 720P and 1080i in component format on the HD-15
output connectors with selectable refresh rates.
-
Multiple Computer
Graphics Output Resolutions - including a user-defined output
resolution with selectable refresh rates.
-
Multi-Standard Video
Signal Compatibility - PAL, SECAM, & NTSC
(3.58/4.43).
-
Multiple Aspect
Ratio Selections.
-
HDTV Compatible
Component Input.
-
Companion AFV (audio
follow video) Stereo Audio for Every Input.
-
Built-in 5 Watt RMS
per Channel Audio Amplifier with Speaker Output
connectors
-
Built-in Time Base
Corrector - Stabilizes video sources with unstable
sync.
-
Multiple Color Space
- Output RGB or YUV (selectable).
-
Built-in Proc-Amp -
Color, hue, sharpness, contrast, and brightness are set
individually for each input.
-
Front Panel
Lockout.
-
Front Panel Audio
Mute & Video Blanking (blue or black screen
selectable).
-
Freeze Frame &
Zoom (100% to 400%)
-
Flexible Control
Options - Front panel buttons, IR Remote (with on-screen menus)
& RS-232.
-
Worldwide Power
Supply - 100-240V.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
Video (8): 2xCV (1Vpp/75Ω) on
RCAs; 2xY/C (Y=1Vpp/75Ω, C=0.3Vpp/75Ω) on 4-pin
connectors; 1xComponent (Y, Pb/Cb, Pr/Cr) on RCA connectors - both
progressive and interlaced signals accepted; 1xDVI-D on a DVI-I
connector; 2xVGA on HD-15F Connectors (VGA through UXGA + HDTV);
Audio: 8 unbalanced stereo audio inputs on terminal block
connectors. |
|
|
OUTPUTS: |
Video: 2 VGA on HD-15F connectors
for computer output resolutions (RGBHV) and component output
resolutions (HDTV). Audio: 1 line-level stereo and 1 stereo
loudspeaker (5 Watts RMS per channel) on terminal block
connectors. |
|
|
OUTPUT RESOLUTION: |
Computer (RGBHV): VGA (640x480),
SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200),
1024x852, 1024x1024, 1366x768, 1365x1024, 1280x720, 720x483,
852x480, 1400x1050, 1280x768. HDTV (Component): 480p, 720p,
1080i. |
|
|
CONTROLS: |
Front Panel and Infrared remote with
on-screen display; RS-232 (on a DB-9 connector). |
|
|
ADDITIONAL CONTROLS: |
Picture-In-Picture: Video in
graphics (or vice versa) in sizes up to quarter screen at any
location, or split-screen (2 images side-by-side); freeze frame,
zoom, selectable vertical refresh rates, audio and video proc amp,
output image scaling, and aspect ratio. |
|
|
MAX AUDIO IN: |
1.9 Vpp |
|
|
MAX AUDIO OUT: |
4.8 Vpp |
|
|
POWER SOURCE: |
110-240V AC, 50/60Hz,
50VA. |
|
|
DIMENSIONS: |
19” (W), 9.3” (D), 1U
(H) rack mountable |
|
|
WEIGHT: |
3kg (6.6lbs) approx |
|
|
ACCESSORIES: |
IR remote control, power cord, null
modem adapter. |
|
| |
|
|
|
|
