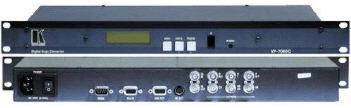

VP-706SC,
VGA/SVGA/XGA/SXGA/UXGA Scan Converter with RS 232 and Gen
Lock
|
|
|
|
|
The VP-706SC is a
scan converter for computer graphics video signals. It converts
computer graphics video signals up to UXGA (1600x1200) to
composite, s-Video (Y/C) and RGB (YUV, RGBS or RGBHV) signals
simultaneously in either PAL or NTSC formats.
Typical
Applications:
-
Multimedia, board
rooms, video conferencing.
-
Any application
where high quality conversion of graphical data signals to video
signals is required.
|
|
|
FEATURES
|
|
-
AutoTrak™ Auto
Set Up Technology - One button auto setup that automatically sizes,
shifts, and centers any input image on the display
device.
-
Output Setup - H/V
shift and sizing to adjust output to display.
-
Flicker Reduction -
2, 4 or 6-line flicker reduction (selectable).
-
Input Compatibility
- 24-100kHz (H) and 40- 100Hz (V).
-
Selectable Sync
Input Signal Termination.
-
Genlock - Looping
analog sync input
-
Selectable Input
Signal Termination or Auto Sensing Termination.
-
Multi-Standard
Output - PAL or NTSC (selectable).
-
Multi-Format Output
- Composite video, s- Video (Y/C) , and RGB (YUV, RGBS or RGBHV)
simultaneously
-
Resolution - 24-bit
color sampling.
-
Control - Front
panel and IR Remote (included) with on screen menus, and
RS-232.
-
Front Panel LED
display.
-
Over Scan or Under
Scan (selectable).
-
Freeze
Frame
-
Front Panel Lock
Out.
-
Zoom & Pan -
2X.
-
Standard 19”
Rack Mount Size
-
Worldwide Power
Supply - 100-240V AC
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
1 VGA/SVGA/XGA/SXGA input on an
HD-15F connector. |
|
|
OUTPUTS: |
NTSC or PAL (selectable). 1
composite video on a BNC connector. 1 s-Video on a 4p connector. 1
RGBS or RGBHV output on BNC connectors. 1 component video (YUV)
output (Y, R-Y, B-Y) on BNC connectors. 1 VGA/SVGA/XGA/SXGA/UXGA on
an HD-15F connector (for local monitor). |
|
|
RESOLUTION: |
VGA (640 x 480), SVGA (800 x 600),
XGA (1024 x 768), and UXGA (1600x1200) compatibility with 24-bit
color sampling (16.8 million colors). |
|
|
BANDWIDTH (-3dB): |
24-100 KHz horizontal, auto
scanning. 40-150 Hz Vertical, auto scanning. |
|
|
IMPEDANCE: |
All 75Ω. |
|
|
GENLOCK: |
Standard 1V p-p Composite signal
Blackburst. |
|
|
CONTROLS: |
IR and RS 232. |
|
|
POWER SOURCE: |
100-240 Volt (50/60 Hz) supply with
IEC power connector. |
|
|
DIMENSIONS: |
48.2cm x 17cm x 4.5cm (19” x
6.75” x 1.75” W,D,H). |
|
|
WEIGHT: |
2.3 kg. (5 lbs)
approx. |
|
|
ACCESSORIES: |
Includes one 6’ (1.8m)
composite video cable, one 6’ (1.8m) s-Video cable, one
6’ (1.8m) VGA cable, an IR remote control, and an IEC power
cable. |
|
| |
|
|
|
|
