5015 Surround
Microphone Kit
|
| |
Product
Code:5015
|
Model:5015
Surround Matched
Microphone Kits
Intended for use in WCSA (Wide
Cardioid Surround Array)
|
|
| |
|
|
| |
|
| |
|

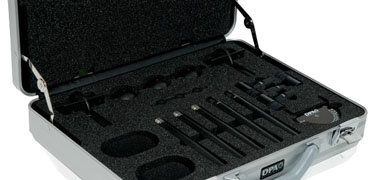

5015 Surround Microphone
Kit
The 5015 4015-TL
Surround Kit consists of:
5 x 4015-TL Wide Cardioid Microphone, P48 (match
within ±1 dB in sensitivity and frequency response in the
microphone's entire frequency range)
5 x
UA0898 Shock Mount
5 x UA0896 Windscreen
1 x
PSM5000 Protractor for Shock Mount
Intended for use in WCSA
(Wide Cardioid Surround Array), this kit
offers:
Five identical microphones; sensitivity and overall response and
sound character
Optimal blend between desired ambience control (cardioids) and room
tone (omnis)
Very stable front image and excellent localization accuracy
Intense, dynamic, and enveloping sound character
Rear cardioids can be angled upwards to blend in important height
information
Expand this array with two left/right omni outriggers and you get a
beautiful coherent, precise, and rich surround sound
|
|
General
Specifications |
|
Directional characteristics: |
Wide Cardioid |
| Principle of
operation: |
Pressure
gradient |
|
Cartridge type: |
19 mm (0.75 in) pre-polarised
condenser |
| Frequency
range: |
On-axis: 40 Hz to 20
kHz |
|
Sensitivity, nominal +/- 2 dB at 250
Hz: |
10 mV/Pa; -40 dB re. 1 V/Pa
unloaded (at 1 kHz) |
| Equivalent noise level,
A-weighted: |
Typ. 19 dB(A) re. 20 µPa
(max. 20 dB(A)) |
|
Equivalent noise level, ITU-R
BS.468-4: |
Typ. 25 dB (correct with the
attenuator in 0 dB or -20 dB setting) |
| Dynamic
range: |
Typ. 97 dB |
|
Total Harmonic Distortion
(THD): |
<0.5% up to 110 dB SPL peak,
<1% up to 116 dB SPL peak |
| Output
impedance: |
<200 Ohm |
|
Max. SPL, peak before
clipping: |
158 dB SPL (attenuator set to
either 0 dB or -20 dB) |
| Power
supply: |
48 V Phantom
power |
|
Cable drive capability: |
Up to 100 m (328
ft) |
| Capsule
diameter: |
19 mm
(0.75) |
|
Weight: |
165 g (5.8
oz) |
|
Temperature range: |
-10 to +55°C (+14
to 131°F) |
|
Microphone
length: |
175 mm (6.9
in) |
|
| |
|
|
|
|
|
