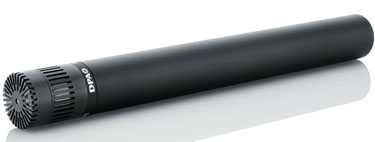

4015-TL Wide
Cardioid Microphone, P48
|
| |
Product
Code:4015TL
|
Model:4015TL
Other Microphones -
Wide Cardioid
The 4015-TL wide cardioid
microphone is an upgraded version of the original DPA 4015. The
wide cardioid polar pattern (also known as hemisphere) is the
perfect fill-in between an omni and a more directional
microphone.
|
|
| |
|
|
| |
|
| |
|
4015-TL Wide Cardioid
Microphone, P48
-
for grand piano,
guitar, marimba and percussion
-
as a spot mic for
groups in a symphony orchestra
-
as a speech, dubbing or
vocal mic
The 4015-TL wide
cardioid microphone is an upgraded version of the original DPA
4015. The wide cardioid polar pattern (also known as hemisphere) is
the perfect fill-in between an omni and a more directional
microphone.
The wide cardioid covers a greater sound angle and is an excellent
choice for grand piano, guitar, marimba and percussion or as a spot
mic for groups in a symphony orchestra. Likewise it is an excellent
speech, dubbing or vocal mic as its enhanced richness on the bass
end nicely complements many voices.
The 4015-TL has a linear on-axis frequency response from 40 Hz to
20 kHz and is intentionally designed with a soft, high frequency
boost to offer a more brilliant sound in close miking applications
and a linear response in the diffuse field.
It is phantom powered (P48), transformerless and can handle 158 dB
SPL peak before clipping occurs. A 20 dB pad switch in the center
of the XLR connector can be used to attenuate the output of the
microphone.
Accessories: The 4015-TL comes with windscreen and
holder.
|
|
General
Specifications |
| Directional
characteristics: |
Wide Cardioid |
| Principle of
operation: |
Pressure
gradient |
| Cartridge type: |
19 mm (0.75 in) pre-polarized
condenser |
| Frequency
range,
± 2 dB: |
On-axis: 40 Hz to 20
kHz |
| Sensitivity, nominal, ±2
dB: |
10 mV/Pa; -40 dB re. 1 V/Pa unloaded (at 1
kHz) |
| Equivalent
noise level A-weighted: |
Typ. 19 dB(A) re. 20 µPa
(max. 20 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 25 dB (correct with the attenuator in 0 dB
or -20 dB setting) |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
75 dB(A) |
| Total harmonic distortion
(THD): |
<0.5% up to 110 dB SPL peak, <1% up to 116
dB SPL peak |
| Dynamic
range: |
Typ. 97 dB |
| Output impedance: |
<200
ohm |
| Max. SPL,
peak before clipping: |
158 dB SPL (attenuator set to
either 0 dB or -20 dB) |
| Cable drive
capability: |
Up to 100 m (328 ft) |
| Current
consumption: |
2.6 mA |
| Switchable attenuator: |
0 dB, -20
dB |
| Weight: |
165 g (5.8
oz) |
| Microphone Length: |
175 mm (6.9 in) |
| Capsule
diameter: |
19 mm (0.75) |
| Power supply: |
48 V Phantom power |
| Operating temperature
range: |
-40 to +55° C (-40 to
131° F) |
|
| |
|
|
|
|
|
