4026/27/28 Compact
Wide Cardioid
|
| |
Product
Code:40262728
|
Model:4026/27/28
Other Microphones -
Wide Cardioid
The Compact Wide Cardioid is a
phantom powered (P48) condenser microphone using the same type of
cartridge as the DPA 4015, but is preamplified using a build-in
ultra-small thick-film mounted FET-preamplifier.
|
|
| |
|
|
| |
|
| |
|
4026/27/28 Compact Wide
Cardioid
-
great choice for grand
piano, guitar, marimba, percussion set-ups or as support
mic
-
pure and clear sound
for speak/dub
-
comes in three
variants: with rear cable, side cable or connector
The Compact Wide
Cardioid is a phantom powered (P48) condenser microphone using the
same type of cartridge as the DPA 4015, but is preamplified using a
build-in ultra-small thick-film mounted FET-preamplifier.
The linear frequency response together with the nice and subtle
high frequency lift give that brilliant sparkle of purity, which
will bring your sound to a higher level. The ultra-small design
makes the Compact Wide Cardioid the perfect choice whenever high
definition audio and insignificant size is paramount. With
unbelievable depth and precision, the DPA Compact Wide Cardioids
will exceed your expectations on choirs, percussion, grand pianos,
reed and brass instruments and much more.

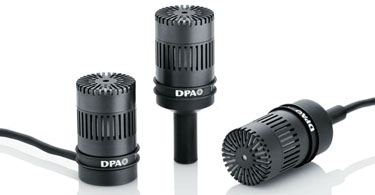

Three variants
There are three variants of the DPA Compact Wide Cardioid:
4026
has a rear-mounted cable
4027
has a side-mounted cable
4028
has a standard LEMO
connector
|
| |
|
General
Specifications |
| Directional
characteristics: |
Wide Cardioid |
| Principle of
operation: |
Pressure
gradient |
| Cartridge type: |
Pre-polarized condenser |
| Frequency
range,
± 2 dB: |
40 Hz – 20 kHz, with a
max. 3 dB soft boost at 10 – 15 kHz |
| Sensitivity, nominal, ±2
dB: |
8mV/Pa; -42 dB re 1V/Pa |
| Equivalent
noise level A-weighted: |
Typ. 20 dB(A) re. 20
µPa |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 25 dB (max. 28 dB) |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
74 dB(A) |
| Total harmonic distortion
(THD): |
< 1% THD up to 116 dB SPL
peak |
| Dynamic
range: |
Typ. 96 dB |
| Output impedance: |
<300 ohm |
| Max. SPL,
peak before clipping: |
145 dB SPL
peak |
| Cable drive
capability: |
Up to 100 m (328 ft) after XLR
connector |
| Current
consumption: |
2.6 mA |
| Connector: |
3-pin XLR-M (Standard P48) |
| Weight: |
33 g (1.2 oz) (without
cable) |
| Microphone Length: |
30 mm (1.2 in); 71 mm (2.8 in) incl.
connector |
| Capsule
diameter: |
19 mm (0.75) |
| Power supply: |
Phantom P48 |
| Operating temperature
range: |
-40 to +55° C (-40 to
131° F) |
|
| |
|
|
|
|
|
