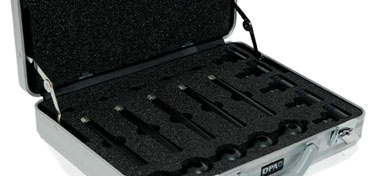

5006 Surround Microphone
Kit
The 5006 4006-TL
Surround Kit consists of:
5 x 4006-TL Omnidirectional Microphones, P48,
Transformerless (match within ±0.5 dB in sensitivity and
frequency response in the microphone’s entire frequency
range)
5 x
L50B Acoustic Pressure Equalizers, 50 mm (1.97 in)
Ball
5 x DD0251 Free-field Grid, Silver
5 x DD0297 Diffuse-field Grid, Black
5 x
UA0961 Microphone Holder
Intended for use in
spaced omni configurations, this kit offers:
Five identical microphone types, with the same sensitivity and
overall response and sound character
Intense sensation of envelopment created by time-of-arrival
differences and suitable decorrelation
The excellent sound color and authentic reproduction that is unique
for omni microphones
Full frequency range in all channels
The choice of altering the frequency response and directional
character to the unique vintage sound color created in the early
Decca releases by mounting the supplied Acoustic Pressure
Equalizers without adding noise and preserving the clarity, phase,
and impulse responses of the state-of-the-art DPA
microphone.
|
|
General
Specifications |
|
Directional characteristics: |
Omnidirectional |
| Principle of
operation: |
Pressure |
|
Cartridge type: |
16 mm (0.63 in) pre-polarised
condenser |
| Frequency range, +/- 2
dB: |
15 Hz - 20
kHz |
|
Sensitivity, nominal +/- 2 dB at 250
Hz: |
35 mV/Pa; -29 dB re. 1
V/Pa |
| Equivalent noise level,
A-weighted: |
Typ. 15 dB(A) re. 20 µPa
(max. 17 dB(A)) |
|
Equivalent noise level, ITU-R
BS.468-4: |
Typ. 27 dB (max. 29
dB) |
| S/N ratio (A-weighted),
re. 1 kHz at 1 Pa (94 dB SPL): |
79 dB |
|
Total Harmonic Distortion
(THD): |
<1% THD up to 135 dB SPL
peak |
| Dynamic
range: |
Typ. 120 dB |
|
Max. SPL, peak before
clipping: |
143 dB |
| Output
impedance: |
<200 Ohm |
|
Cable drive capability: |
Up to 100 m (328
ft) |
| Power
supply: |
Phantom P48 |
|
Current consumption: |
2.60 mA |
| Connector: |
3-pin XLR-M (Standard
P48) |
|
Weight: |
150 g (5.29
oz) |
| Capsule
diameter: |
16 mm (0.63 in) pre-polarised
condenser |
|
Microphone length: |
165 mm (6.5
in) |
| Temperature
range: |
-10 to +70° C (+14 to
158° F) |
|
| |
|
|
|
