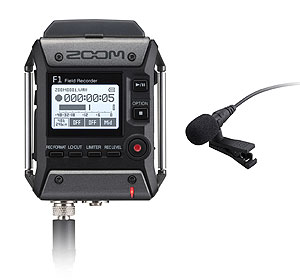

The Zoom F1-LP comes with Zoom’s newly engineered LMF-1 lavalier mic, designed for capturing every nuance. Combined with the F1, you can
record high-resolution audio up to 24 bit/96 kHz, perfect for interviews, wedding vows, and more.
With its minimal profile, the Zoom F1-LP attaches neatly
on belts, waistbands, or slipped into a pocket so the recorder can be easily concealed.
The LMF-1 Lavalier mic connects directly to the F1 and records
to a micro SD card. By recording directly to the F1, interference or noise commonly experienced when using a wireless beltpack system is eliminated.
The Zoom F1’s one-touch buttons gives you easy access to record levels, limiter control, lo-cut filter and volume output. It’s newly designed monochromatic LCD
display ensures visibility even in bright sunlight.
The Zoom F1 records audio in WAV or MP3 formats. WAV files are automatically time-stamped, making them Broadcast Wave Format (BWF) compliant.
Features
• Two-channel audio recorder
• Compatible with Zoom microphone capsules
• Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
• One-touch button controls
• 1.25” monochrome LCD display
• Rec Hold function to avoid accidental operation of buttons
• Stereo ⅛" Mic/Line In mini phone jack with Plug-in power (2.5V)
• Stereo ⅛" Phone/Line Output jack with dedicated volume control
• Built in limiter and auto level control to avoid clipping
• Pre-Record function
• Tone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cable
• Sound marker function that outputs quick tone to make syncing audio and video easy
• Records directly to micro SD and SDHC cards up to 32 GB
• Micro USB port for data exchange to and from computer and use as an audio interface with computer or iOS device
• Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
| Recording Media |
| Recording media: |
microSD/microSDHC cards
(Class 4 or higher, up to 32 GB) |
| Recording formats: |
WAV
44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit
MP3
48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Mono/stereo ID3v1 tags supported |
| Display: |
1.25" monochrome LCD |
| INPUTS: |
| MIC IN: |
ZOOM mic capsule input |
| MIC/LINE IN: |
Connector: 3.5 mm stereo mini (with screw lock)
Supports plug-in power (2.5 V)
Input gain: −12 dB – +36 dB
Input impedance: 2 kΩ or more |
| Lavalier mic : |
Plug: 3.5 mm stereo mini (with screw lock)
Directionality: Omnidirectional
Sensitivity: -32 dB/1 Pa at 1kHz
Maximum sound pressure input: 115 dB spl
Cable length: 160 cm |
| OUTPUTS: |
| PHONE OUT : |
Connector: 3.5 mm stereo mini (with screw lock)
Maximum output level: 11 mW + 11 mW (into 32 Ω load) |
| USB: |
microUSB
Mass storage operation: USB 2.0 High Speed
Audio interface operation: USB class compliant
44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out
Transfer method: asynchronous |
| POWER SUPPLIES |
| POWER: |
2 AAA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A |
| Recording time using batteries: |
Lavalier mic (48 kHz/24-bit, mono, plug-in power on):
Alkaline batteries: about 10 hours
NiMH batteries 750 mAh): about 9 hours
Lithium batteries: about 16 hours
*The above values are approximate. |
| GENERAL |
| External Dimensions |
64 mm (W) x 79.8 mm (D) x 33.3 mm (H) |
| Weight |
120g (without batteries) |
• F1 Field Recorder
• LMF-1 Lavalier microphone
• WSL-1 Windscreen
• MCL-1 Mic clip
• BCF-1 Belt clip
• 2 AAA batteries
• Quick guide
|
