 Panasonic AW-HE2 Full-HD Integrated Camera

Panasonic AW-HE2
Product Code: AWHE2
Discontinued
review button



The Panasonic AW-HE2 high quality, low cost AW-HE2 is a compact HD camera with electronic pan/tilt/zoom functionality, remote IP monitoring, HDMI output, and IP control capability. Its no-moving-parts design is ideal for remote monitoring in athletics, conference rooms, and in classrooms for lecture capture and distance learning.

The Panasonic AW-HE2 incorporates a highly-accurate non-mechanical pan-tilt function that offers precise, fast, fluid movement in all directions, The camera provides a wide horizontal angle of view of approximately 96 degrees. A new Panasonic 2X Super Resolution zoom function operates in conjunction with the digital P/T to provide crisp images of the selected area. With its full HD MOS sensors, the HE2 produces 1920 x1080 resolution images in 1080/60p (1080/59.94p) and a wide range of other formats. For live remote preview and control, the HE2 delivers IP-preview MJPEG video imbedded in the camera's Browser control page, at resolutions up to 640x480 and frame rates of up to 30fps.

The Panasonic AW-HE2 supports both direct and Web-based IP remote control. Direct IP control is possible using Panasonic's AW-RP50N, as well as appropriately programmed systems from Crestron, AMX and other manufacturers. The unit may also be controlled using an AW-RM50G wireless handheld IR remote.

• IP live video image monitoring for remote preview and control
• IP control via AW-RP50, computer with Browser, or 3rd party controllers
• Compatible with the AW-RM50G wireless infrared remote
• Picture-in-Picture functionality
• Nine pre-set memories
• Adjustable shutter speed, Auto Gain, white balance and back light compensation
• Stereo microphone, stereo audio imbedded in HDMI output
• Dimensions--Five inches in length with a diameter of approx. two inches
• Weight: less than 9 ounces
• Table/wall/ceiling mount included, as well as a ¼-20 screw thread mount.
• HDMI output provides: 1080/60P, 1080/50P, 1080/59.94i, 1080/50i (30P & 25P), and 720/60P and 720/50P
• Horizontal Resolution: 850 Lines
• DC Connector / USB Connector, A.C power supply included
Ultra-compact body integrated with wide-angle lens, microphone, tally lamp and various interfaces
The camera unit is small, but comes equipped with an ultrawide-angle lens, microphone, tally lamp, HDMI and LAN terminals. This model is suitable for P.O.V. (point of view) applications and Internet broadcasting. It can also be used in a variety of other situations. The compact and lightweight body can be installed easily (indoor use) by one person.

Panasonic AW-HE2

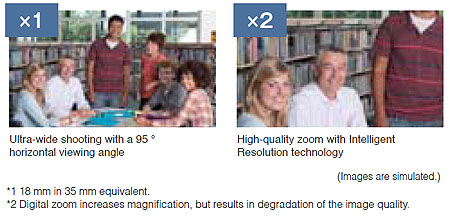

Full-HD MOS, 95 °*1 ultrawide-angle lens, Intelligent zoom and digital pan-tilt for flexible image acquisition
Featuring a 1/4.37 type (effective size) 3.9 mega pixels MOS sensor and ultrawide-angle lens with 95 °*1 horizontal viewing angle. The Intelligent Zoom enlarges the picture two times normal size while maintaining high image resolution. When combined with the digital zoom, images can be enlarged up to four times.*2 This model is suitable for a variety of image acquisition uses ranging from wide-area shooting to telephoto

Panasonic AW-HE2

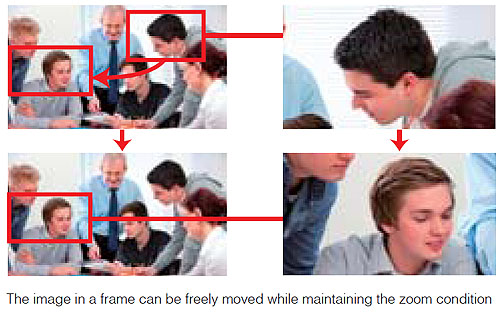

• Digital pan/tilt
When zooming, the image area chosen by the AW-RP50N/E or wireless remote control can be moved within the shooting range
Panasonic AW-HE2

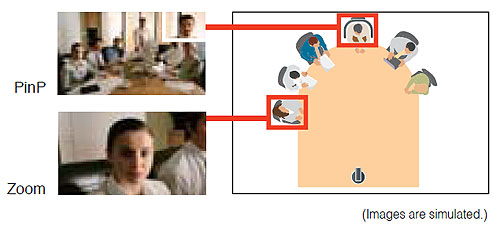

• PinP (Picture in Picture) mode
A specific area can be chosen from the shooting range and displayed. The PinP image position also can be changed and zooming.

• Preset memory
The Preset Memory function can store settings such as zoom magnification, brightness, PinP display, etc. (up to 9 settings). Settings can be easily accessed from the AW-RP50N/E and wireless remote control.

IP control simplifies connection and setup, and ensures comfortable operation.

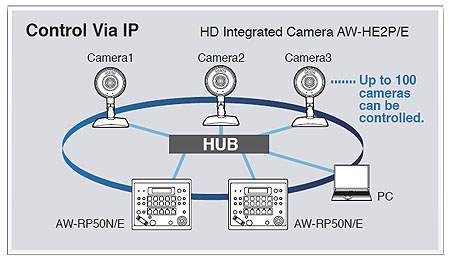

• IP control for easy connection and setup
IP connection allows control of up to 100 x AW-HE2P/E units from an AW-RP50N/E Remote Camera Controller or a PC via a switching hub.

• IP image monitoring supported
Features an image compression and IP transmission LSI. The IP image output function allows transmission of images from one camera to one terminal through IP networks. When combined with IP control, the camera can be controlled from a distant location.

Other features
• Dynamic Range Strech(DRS)
Minimizes blown highlights and blocked shadows to deliver clear images in a wide range of applications.

• Setting camera menus with a PC
Camera menus can be set up via a web browser by connecting the AW-HE2P/E to a PC.

• Wireless remote controller for easy operation (option)
Up to 4 cameras can be controlled by an optional wireless remote controller (AW-RM50G). The basic operations and menu settings can be done by using the wireless remote controller.
General
Power Requirements DC 5.0 V (AC adaptor supplied)
Power Consumption 3.6 W
Operating Temperature 0°C to 40°C (32°F to 104°F)
Allowable Humidity Range -10 % to 80 % (no condensation)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Storage Humidity Range 0 % to 90 % (no condensation)
Weight Approx.0.244 kg (Approx.0.538 lbs)
Dimensions (W × H × D) 80 mm x 118 mm x 138 mm
(3-5/32 inches x 4-5/8 inches x 5-7/16 inches)
Camera
Image Sensors 1/4.37 type MOS
Effective pixels: Motion picture Approx.3.9 mega pixels
Lens iA Approx.2x zoom, Digital Approx.4x zoom
F2.0 (f=2.15 mm, 35 mm equivalent: 18 mm)
Field of view: 95°(horizontal), 56°(vertical)
Minimum focus distance: Approx.80 cm (25℃/77°F)
Standard Illumination 1 400 lx
Minimum Illumination 20 lx (1/60 in Auto mode)(AW-HE2P),
20 lx (1/50 in Auto mode)(AW-HE2E)
Horizontal Resolution 850 TV line Typ (Center area)
Electronic Shutter Speed 1/60 to 1/12000 (AW-HE2P),
1/50 to 1/12000 (AW-HE2E)
White Balance ATW, AWB A, AWB B, Sunny, Cloudy,
Indoor1, Indoor2, Fluorescent(TTL type)
Output Format HD 1080/59.94p, 1080/59.94i, 1080/50p,
1080/50i, 720/59.94p, 720/50p
SD 576/50p, 480/59.94p
Synchronization System Internal synchronization
Video Output Connector HDMI x 1
Audio Output Connector HDMI x 1, Linear PCM
Network 10BASE-T, 100BASE-TX, RJ-45
Automatic recognition of straight/crossover cable
Network output image: JPEG, 640x480 (640x360) or 320x240 (320x180),
up to 30fps (16:9 video is transmitted in the Letter Box format).
USB Micro-B terminal x 1, Power supply function
(power supplied from the USB terminal when
there is no power provided from DC input terminal)
Microphone 2 ch stereo
Pan-Tilt Mechanism
Panning Range Approx. ±23°[iA Approx.2x zoom]
Approx. ±35°[Digital Approx.4x zoom]
Tilting Range Approx. ±14°[iA Approx.2x zoom]
Approx. ±21°[Digital Approx.4x zoom]
Standard Accessories
Standard Accessories CD-ROM (Operating Instructions Basics, Operations and Setting),
Drop-prevention wire, Drop-prevention wire mounting screw
(with washer) M4 x 20 mm, pedestal, pedestal cover,
pedestal mounting screws M4 x 20 mm,
Cable Ties, Power cable, AC adaptor
