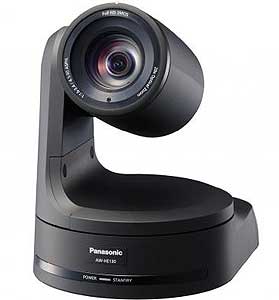

Introducing
the AW-HE130, a pan/tilt/zoom camera
incorporating recently-developed
high-sensitivity, low-noise 1/3"
3-MOS imagers that produce stunning
pictures even in low light
conditions. Revolutionary new
features include Power over
Ethernet+ (POE+) for easier
integration and multi-stream
transmission of H.264 HD video/audio
(up to 1080/60p at 25Mbps.) The
HE130 adds many innovative features
to Panasonic's AW-HE120 PTZ which
has become the de facto standard
remote control camera for
educational, government, and house
of worship use and is likewise
prevalent in news, staging, sports
and reality television production.
Additional new features in the HE130
are a 3G-SDI output (up to
1080/60p), stereo mic/line-level
inputs for embedded and streaming
audio, a Night Mode for hi-res near
IR video acquisition (using an
optional IR-illuminator in the 900nm
range), an Optical Image Stabilizer
(O.I.S) and IP-Live Preview for
remote control and management of up
to 16 cameras via Browser.
With an exceptional signal to noise
ratio of 60dB (F8/2000lx minimum
illumination 2.0 1x), 1000 TV lines
of resolution and such advanced
features as 12-axis color correction
and Panasonic's exclusive DRS
(Dynamic Range Stretch) and Hybrid
Digital Noise Reduction, the HE130
continues to set performance
standards for integrated pan-tilt
cameras. The HE130 includes the same
new three 2.4 megapixel MOS imagers
and Digital Signal Processor (DSP)
used in Panasonic's latest broadcast
camcorders such as the AJ-PX270.
Equipped with a fast F1.6 20X zoom
lens plus a new high-res 1.4X
digital extender; the compact HE130
is ideally matched to demanding
applications in sports,
rental/staging, news and business
and institutional video.
|
| Dimensions (W x H x D)
|
180 mm x 228 mm x 234 mm
(7-3/32 inches x 9 inches x 9-3/16 inches)
(excluding protrusions, cable cover, direct ceiling mount bracket) |
| General
|
- |
| Storage Temperature
|
–20 °C to 50 °C (–4 °F to 122 °F) |
| Power Requirements
|
DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply)
1.8 A (AC adaptor supplied) 0.6 A (PoE+ power supply) |
| Ambient Operating Temperature
|
0 °C to 40 °C (32 °F to 104 °F) |
| Finish
|
AW‑HE130WP/AW-HE130WE: Pearl white
AW‑HE130KP/AW-HE130KE: Metallic black |
| Allowable Humidity Ranges
|
20 % to 90 % (no condensation) |
| Mass
|
Approx. 3.1 kg (6.83 lb) [Including mount bracket] |
| Controller supported*1
|
AW-RP120G, AW‑RP50, AK-HRP200G |
| LENS
|
Motorized 20 zoom, F1.6 to F3.4
(f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm) |
| MINIMUM ILLUMINATION
|
2 lx (50 IRE, F1.6, 36 dB) |
| Synchro scan
|
59.94 Hz: 60.15 Hz to 642.21 Hz
50 Hz: 50.15 Hz to 535.71 Hz |
| Horizontal Resolution
|
1000 TV lines Typ (Center area) |
| Gain Selection
|
Auto, 0 dB to 36 dB |
| WHITE BALANCE
|
AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K) |
| Color separation optical system
|
3MOS |
| Focus
|
Switching between auto and manual |
| Focus Distance
|
Entire zooming range: 800 mm (2.62 ft)
Wide end: 400 mm (1.31 ft) |
| Gamma
|
HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3
0.30 to 0.75 (Manual setting) |
| Scene File
|
Scene1, Scene2, Scene3, Scene4 |
| Electronic Shutter Speed
|
59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
29.97p: 1/30, 1/60, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000
23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Imaging Sensors
|
1/2.86-type Full-HD 3MOS |
| Chroma Amount Variability
|
OFF, -99 % to 40 % |
| Camera Unit
|
- |
| Frame Mix*2
|
0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| STANDARD ACCESSORIES
|
Mount bracket for installation surface (Hanging*6 / Desktop): 1, Drop-prevention wire: 1, Drop-prevention wire mounting screw (comes attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer,spring washer) M3 x 6 mm: 1, Cable cover: 1, Power cable: 1, AC adaptor: 1, CD-ROM |
| Input Connector
|
DC 12 V IN, G/L IN (BNC)
• BBS (Black Burst Sync), tri-level sync supported
• Locking to a color subcarrier is not possible with BBS.
PoE+ (IEEE802.3at standard) |
| Panning range
|
±175° |
| Quietness
|
NC35 or less |
| Note
|
*1: It may be necessary to upgrade the version of the controller in order to support the unit. For details on upgrading, visit the support page on the following website. http://pro-av.panasonic.net/
*2: This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF 1080/23.98PsF, 1080/25p, or 1080/25PsF.
*3: To ensure safety, the unit must be secured using the mount bracket supplied.
*4: Use of an STP (shielded twisted pair) cable is recommended.
*5: Depending on the pan or tilt position, the camera may be reflected in the image.
*6: To ensure more safety, AW-HE130W/K can be secured by using the direct ceiling mount bracket (WV-Q105A). |
| Installation Method
|
Stand-alone (Desktop) or suspended (Hanging)*3 |
| OUTPUT
|
- |
| INPUT/OUTPUT
|
- |
| Pan-tilt Head Unit
|
- |
| Camera/pan-tilt head control
|
IP connecting cable
• When connecting through a PoE+ hub:
LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft)
• When a PoE+ hub is not used:
LAN cable*4 (category 5 or above, crossover cable) max.100 m (328 ft)
RP connecting Cable
LAN cable*4 (category 5 or above, straight cable), max. 1000 m (3280 ft)
RS-422A, AW series protocol |
| VIDEO OUTPUT
|
HDMI: HDMI connector
• HDCP is not supported.
• Viera Link is not supported.
HD/SD-SDI OUT: SMPTE424/SMPTE292/SMPTE259 standards 75 Ω (BNC x 1)
VIDEO OUT: NTSC/PAL 1.0 V [p-p]/75 Ω (BNC x 1) |
| Input/Output Connector
|
LAN: LAN connector for IP control (RJ‑45), PoE+
RS-422: CONTROL IN RS-422A (RJ‑45)
MIC/LINE input: ø3.5 mm stereo mini jack Input impedance: High impedance
• During MIC input Supported mic: Stereo mic
(plug-in power, on/off switching via menu)
• Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. -10 dBV ±3 dBV |
| Pan-tilt Operation Speed
|
0.08°/s to 60°/s |
| Tilting Range*7
|
–30° to 210°*5 |
|
