Upgrade & Future Proof Your Remote
Camera Systems

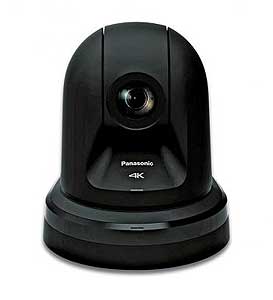

The
professional video industry's first
integrated 4K PTZ camera, the
AW-UE70 is your key to best-in-class
pan/tilt/zoom 4K IP streaming and
in-camera 4K recording. It delivers
3840 x 2160 resolution images at
29.97p/25p via HDMI, and is capable
of doing it via IP streaming or
in-camera. Featuring key production
orientated features such as genlock,
Optical Image Stabilization (O.I.S)
and remote switchable ND filters.
It's All About the Image
The AW-UE70 features a
next-generation 1/2.3-type MOS
sensor and DSP (Digital Signal
Processor) for high sensitivity and
high resolution up to UHD/30p. With
the four-drive lens system, three
zoom lenses and one focus lens are
driven independently and
simultaneously achieving a smaller
body and a zoom mechanism with high
magnification and high image
quality. The AW-UE70W/K has a
high-resolution 20x optical zoom and
a high-performance iA 22x zoom (4K
mode). Built-in optical image
stabilization excels in vibration
caused by wind,
subwoofers/loudspeakers, ventilation
systems, and more.
Broadcast & Production Ready
The AW-UE70 is quite a step up from
the AW-HE40 introducing
broadcast/production oriented
feature-sets including a motorized
ND filter wheel for varied lighting
environments, 3G SDI for up to
1080/59.94p output, external sync
input (genlock), and more. Even for
HD usage, a higher image quality is
achieved with a higher quality lens
system which has better focus
tracking and evenness throughout the
image.
Versatile,
Smooth & Lightweight
The
pan range of ±175° and the tilt
range of -30° to +90° cover a wide
shooting area. Pan and tilt operate
at a maximum speed of 90°/second and
respond quickly to remote control
operation. They operate quietly at a
sound level of NC35 or lower. Up to
100 preset positions and camera
settings are stored in the camera,
more than enough for the most
demanding large venue installation.
The camera weighs only 3.3 lbs. and
consumes just over 15.6 watts at 12
VDC.
Connected – Professional
Interfacing for all sorts of remote
production
Video
Outputs:
Standard professional interfaces
include HD/SD-SDI, HDMI, as well as
IP/Network for single cable delivery
of high-quality content up to
1080/60p.
Serial
Control: RS-422 serial
compatibility is available for
serial based control workflows (i.e.
connection to AW-RP50/120 or
previous controllers). RS-232 and
RS-422 VISCA protocol is available
when introducing a Panasonic camera
into an existing control structure.
USB or microSD Card
Recording: The mini-USB
connector allows the AW-UE70 to be
utilized as a USB camera utilizing
standard USB Video/Audio class
drivers. Many applications that
connect to USB cameras, such as
teleconferencing or software
switching solutions, will be able to
connect to the UE70 without external
converters. Alternatively, microSD
recording enables ISO MP4/H.264
recording internally in the UE70,
transfer of content over the network
via web browser or FTP.
Network Connected: The LAN
port on the UE70 unleashes the
possibilities
• Power of
Ethernet+ (PoE+) for easier system
installation and setup
• Control the camera via
the network with an AW-RP50/120
hardware controller or Panasonic
software solutions
• Access the built-in
web interface to monitor and control
all aspects of the camera
• Utilize a supported
third party control system from
broadcast control systems,
switchers, lecture capture systems,
AV Control system and more
• By default, the camera
has a built-in H.264/MJPEG encoder
for 7 channels of encoding up to
25Mbps. Pair with a supported
hardware or software decoder
• Available NDI|HX
upgrade (a technology of NewTek
Inc.) for the ultimate single cable
production workflow with Ultra low
latency video, audio, control,
tally, and power over a single cable
(new.tk/ndi_panasonic) or choose the
AW-UN70 for out-of-the-box support
for NDI|HX
Flexible
Installation & Mounting
Blend-in: The
camera is exceptionally easy to
integrate and is available in two
colors (-W: pearl white and -K:
black matte) to suit a wide range of
applications.
Ceiling
Mount: A twist-lock ceiling
mount is included as a standard
accessory.
Tripod
Mount for Mobile Production:
The UE70 is also equipped
with a 1/4-20 tripod mounting screw
receptacle and a safety lanyard for
use with many mounting and grip
systems.
Wall Mount:
An optional heavy-duty wall mount is
available in either black
(FEC-40WMK) or white (FEC-40WMW).
|
| General
|
|
| Power Requirements
|
DC 12 V (Supplied AC adaptor)
DC 42 V to 57 V (PoE+ power supply) |
| Current consumption
|
1.3 A (Supplied AC adaptor)
0.5 A (PoE+ power supply) |
| Ambient Operating Temperature
|
0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature
|
–20 °C to 50 °C (–4 °F to 122 °F) |
| Allowable Humidity Ranges
|
20 % to 90 % (no condensation) |
| Mass
|
Approx. 1.5 kg (3.30 lb) |
| Dimensions (W x H x D)
|
60 mm x 186 mm x 179 mm
(6-5/16 inches x 7-41/128 inches x 7-3/64 inches) [excluding protrusions, direct ceiling mount bracket] |
| Finish
|
[AW-UE70W] Pearl white [AW-UE70K ] Metallic black |
| Controller Supported*
|
AW-RP50, AW-RP120G, AK-HRP200G |
| Camera Unit
|
- |
| Imaging Sensors
|
1/2.3-type MOS |
| LENS
|
Motorized 20x zoom, F1.8 to F3.6
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches)equivalent: 29.5 mm (1-5/32 inches) to 612.0 mm (24-3/32 inches)] |
| Focus
|
Switching between auto and manual |
| Focus Distance
|
Entire zooming range:1.5 m (4.92 ft) Wide end: 10 cm (0.33 ft) |
| Color separation optical system
|
On-chip color filter system |
| MINIMUM ILLUMINATION
|
59.94 Hz:
0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation [Frame Mix 6 dB])
Pv6:
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS,NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
| Horizontal Resolution
|
4K : 1300 TV lines Typ (Center area) HD: 1000 TV lines Typ (Center area) |
| Gain Selection
|
Auto, 0 dB to 48 dB (3 dB step) |
| Frame mix*3
|
Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB |
| ND filter
|
Auto 4, Through, 1/4, 4/16, 1/64 |
| Electronic Shutter Speed
|
During Full Auto:
1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz]
During Auto:
1/60 to 1/2000 [59.94 Hz]
1/50 to 1/2000 [50 Hz]
During Manua:
1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz]
1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz] |
| Synchro scan
|
59.94 Hz:
59.94 Hz to 660.09 Hz (255 step) |
| Gamma
|
Off, Normal (Low, Mid, High), Cinema |
| WHITE BALANCE
|
ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K) |
| Chroma Amount Variability
|
- |
| Scene File
|
Full Auto, Manual1, Manual2, Manual3 |
| Synchronization System
|
Internal synchronization/External synchronization (BBS, Tri-level sync) |
| Image Stabilization
|
Optical (FHD, 4K)/4-axis hybrid image stabilizer
(FHD) for stable |
| INPUT
|
- |
| Power
|
DC 12 V IN, PoE+ (IEEE802.3at standard) |
| Mic/line input
|
Stereo mini-jack (?3.5 mm)
Input impedance: Approx. 2 k |
| G/L IN
|
Compatible with BBS (Black Burst Sync) signals and ternary synchronizing signals (BNC x 1) |
| OUTPUT
|
- |
| VIDEO OUTPUT
|
HDMI connector
? HDCP is not supported.
? VIERA Link is not supported.
3G/HD SDI OUT:
Compliant with the SMPTE424/SMPTE292M standards/75 |
| INPUT/OUTPUT
|
- |
| Input/Output Connector
|
LAN: LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function
RS-232C: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
RS-422: CONTROL IN RS422A (RJ-45)
USB: Mini-B port
SD Card: microSD card slot |
| USB connection * This may vary depending on the operating environment.
|
- |
| Video Output (USB)
|
USB Video Class Ver1.0 |
| Video Compression Format
|
Motion JPEG |
| Resolution
|
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Frame rate
|
max 30 fps (59.94 Hz)
max 25 fps (50 Hz) |
| AUDIO OUTPUT
|
USB Audio Class Ver1.0 |
| Audio Compression Format
|
Linear PCM, 48 kHz, 16-bit, 2 channels |
| Transfer Modes (JPEG)
|
3840 x 2160
59.94 Hz: 5fps, 50 Hz: 5fps |
| Supported models
|
Devices standardly equipped with a USB 2.0 compatible port |
| Pan-tilt Head Unit
|
- |
| Installation Method
|
Stand-alone (Desktop) or suspended (Hanging) 5 |
| Pan/Tilt Operation Speed
|
Maximum speed during preset: 300 |
| Panning range
|
- |
| Tilting Range*5
|
–30° to 90°*6 |
| Quietness
|
During preset: NC40 or less During manual: NC35 or less |
| Camera/pan-tilt head control
|
- |
| IP connecting cable
|
• When connecting through a PoE+ hub:
LAN cable*7 (category 5e or above), max. 100 m (328 ft)
• When a PoE+ hub is not used:
LAN cable*7 (category 5 or above) max.100 m (328 ft) |
| AW protocol connecting cable
|
LAN cable (category 5 or above,straight cable), max. 1000 m (3280 ft) |
| Standard protocol connecting cable
|
Mini DIN 8-pin cable, male |
| SD card recording
|
MPEG-4 AVC file standard compliant (.MP4) |
| Video compression format (SD)
|
MPEG-4 AVC/H.264 High Profile |
| Audio compression format (SD)
|
AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps) |
| Recording format/Bit rate
|
59.94 Hz:
3840 x 2160/29.97p (Up to 72 Mbps),
1920 x 1080/59.94p (Up to 28 Mbps), 1920 x 1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280 x 720/59.94p (Average 15 Mbps),
1280 x 720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 Mbps) |
| Network
|
- |
| Transfer modes
|
JPEG:
1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 59.94 Hz (30fps/15fps/5fps)*8, 50 Hz (25fps/12.5fps/5fps)*8
H.264:
3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 59.94 Hz (60fps*9/30fps/15fps/5fps)*8, 50 Hz (50fps*9/25fps/12.5fps/5fps)*8 |
| Supported protocol
|
Pv4:
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
| iOS, Android Support
|
JPEG image display |
| STANDARD ACCESSORIES
|
Mount bracket for installation surface (Hanging*10 / Desktop): 1, Drop-prevention wire (already attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1, Power cable (1.5 m [4.92 ft]): 1, AC adaptor: 1, CD-ROM: 1 |
| Note
|
*1: It may be necessary to upgrade the version of the controller so that the controller will support the unit.
*2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting.
*3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting.
*4: |
|
