The compact
4K PTZ Camera is equipped with an
ultra-wide-angle lens with a
111°Feld of view to capture the
entire scene. The unit supports PoE*
supply and can be powered via USB
from a computer to realize a single
cable solution for video
transmission, camera control and
power supply. The camera is perfect
for a wide range of applications
including lecture captur ing, v ideo
conferencing and e-Sports live
streaming.
* Abbreviation of
Power over Ethernet.
High-Quality 4K/30p Video Output
Supports 3840x2160/30p 4K video
output and a variety of other
formats for use in a wide range of
environments.
* HDMI output
requires PoE HUB or AC adaptor
(5V/1A or more).
Ultra-Wide-Angle Lens with a 111°
Field of View
Equipped
with an ultra-wide-angle lens with a
111° field of view to capture every
part of even the largest spaces and
transmit wide-angle video in limited
installation space.
Single Cable Solution
In
addition to PoE*1 supply, power
supply from a computer via USB cable
is also supported to enable
operation without connecting an AC
adaptor, realizing a single cable
solution for video transmission,
camera control and power supply.
Digital Pan, Tilt and
Zoom
Equipped with
digital zoom for magnification up to
four times to capture distant
subjects clearly. Once images are
zoomed in, digital pan/tilt is
available, offering fiexibility to
shoot from different angles.
RTMP/RTMPS*1
Supports RTMP/RTMPS*1 for direct
upload and streaming of video on
services such as YouTube Live or
Facebook Live. Video can be uploaded
and streamed directly from the
camera to live streaming services.
*1: RTMP: Real-Time Messaging
Protocol, RTMPS: Real-Time Messaging
Protocol Secure.
*2: A computer
is required for connection to the
streaming server.
*3: PoE
support. |
| General |
| Power Requirements: |
DC 5 V±5 % (4.75 V to 5.25 V) |
| PoE: |
IEEE802.3af standard: DC37 V to 57 V (camera) |
| Current Consumption: |
1.0A (USB input), 0.2A (PoE power supply) |
| Ambient Operating Temperature: |
0 °C to 40 °C (32 °F to 104 °F) |
| Ambient Operating Humidity: |
20 % to 90 % (no condensation) |
| Storage Temperature: |
-20 °C to 50 °C (-4 °F to 122 °F) |
| Weight: |
Approx. 0.5 kg (1.1 lb) (excluding mount bracket) |
| Dimensions (W x H x D): |
123 mm x 131 mm x 139 mm (4-53/64 inches x 5-5/32 inches x 5-29/64 inches)
(excluding protrusions, mount bracket) |

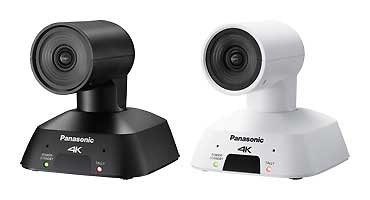

| Finish: |
AW-UE4WG:White
AW-UE4KG:Black |
| Controller Supported: |
AW-RP60GJ*1, AW-RM50G |
| Camera Unit |
| Imaging Sensors: |
1/2.5-type MOS |
| Lens: |
F2.4 (f=2.21 mm, 35 mm conversion: 13.4 mm) |
| Digital Zoom: |
4x |
| Field of View Range: |
LDC*2 Off:
Horizontal field of view 111°, vertical field of view 75°, diagonal field of view 120° |
LDC*2 On:
Horizontal field of view 108°, vertical field of view 75°, diagonal field of view 116° |
| Focus: |
Single focus |
| Focus Distance: |
700 mm |
| Minimum Illumination: |
4 lx (conditions: 50 IRE, gain 42 dB, shutter speed 1/60) |
| Horizontal Resolution: |
HDMI output: 4K format: 1,400 TV typ (center area) |
| HDMI output: HD format: 900 TV typ (central area) |
| Digital Pan and Tilt Angle: |
2x digital zoom: Pan approx. ± 34°, tilt approx. ± 21°
4x digital zoom: Pan approx. ± 45°, tilt approx. ± 30° |
| Gain selection: |
Auto, 0 to 42 dB* Can be set in 3 dB increments |
| Electronic Shutter Speed: |
■ Full Auto Mode with Slow Shutter On / Shutter Priority Mode / Manual Mode
1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60 Hz/59.94 Hz]
1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50 Hz] |
■ Full Auto Mode with Slow Shutter Off
1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60 Hz/59.94 Hz]
1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50 Hz] |
| White Balance: |
ATW, AWB A, AWB B, 3200 K, 5600 K |
| Chroma Amount Variability: |
11 steps (0 to 10) |
| Internal Mic |
| Internal Mic: |
Stereo microphone |
| Audio On/Off: |
Available (mute function) |
| ALC Function: |
Available |
| Output |
| HDMI*3*4: |
HDMI connector, 4:4:4/8 bit |
| Input/Output |
| LAN: |
LAN terminal for IP control (RJ-45) |
| USB: |
Type-C terminal |
| USB Web Camera Unit |
| Video Output: |
USB Video Class Ver1.1 |
| Video Compression Format: |
YUV, MJPEG |
| Resolution: |
YUV 640 x 360
MJPEG 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Frame Rate: |
YUV
[60 Hz/59.94 Hz]:15fps
[50 Hz]:10fps |
MJPEG
[60 Hz/59.94 Hz]:30fps*5/15fps*5/5fps
[50 Hz]:25fps*5/10fps*5/5fps |
| Audio Output: |
USB Audio Class Ver1.0 |
| Audio Compression Format: |
Linear PCM, 48 kHz/16 bit/2 ch |
| IP Streaming |
| Video Compression Format: |
MJPEG (HTTP), H.264 (RTSP/RTMP/RTMPS), H.265 (RTSP) |
| Resolution: |
MJPEG 1280 x 720, 640 x 360
H.264/H.265 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Frame Rate: |
MJPEG
Max. 30fps (25fps)*6 |
H.264
[60 Hz/59.94 Hz]:5fps/15fps/30fps/60fps (4K up to 30fps)
[50 Hz]:5fps/10fps/25fps/50fps (4K up to 25fps) |
H.265
[60 Hz/59.94 Hz]:5fps/15fps/30fps/60fps (4K up to 30fps)
[50 Hz]:5fps/10fps/25fps/50fps (4K up to 25fps) |
| Streaming Bitrate: |
MJPEG Not specified*6 |
| H.264/H.265 1024kbps to 32768kbps |
| Audio Compression Format: |
AAC-LC, 48 kHz/16 bit/2 ch |
| Supported Protocol: |
IPv4
TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, DHCP, DNS, ICMP, ARP, RTMP, RTMPS |
IPv6
TCP/IP, UDP/IP, HTTP, RTSP, RTP, RTP/RTCP, DNS, ICMPv6 |
| Pan-tilt Unit |
| Installation Method: |
Stand-alone (Desktop) or suspended (Hanging)*7 |
| Panning Range: |
±110° (manual) |
| Tilting Range: |
±25° (manual) |
| Cameral Control |
| IP Connecting Cable: |
■ When a PoE ethernet hub is used: LAN cable*8
(category 5e or above), max. 100 m (328 ft)
■ When a PoE ethernet hub is not used: LAN cable*8
(category 5 or above), max.100 m (328 ft) |
| Standard Accessories |
USB Cable: 1, Drop-prevention wire: 1, Mount kit: 1, L-Mount kit: 1,
Tripod screw (I-head type, 1/4 x 20 UNC): 1, M4 screw (10 mm length): 4, M4 screw(5 mm length): 4 |
|
