| General
|
- |
| Power Requirements
|
DC 12 V (Supplied AC adaptor)
DC 42 V to 57 V (PoE+ power supply) |
| Current consumption
|
1.3 A (Supplied AC adaptor)
0.5 A (PoE+ power supply) |
| Ambient Operating Temperature
|
0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature
|
-20 °C to 50 °C (-4 °F to 122 °F) |
| Mass
|
Approx. 1.5 kg (3.30 lb) |
| Dimensions (W x H x D) (mm)
|
160 mm x 186 mm x 179 mm[excluding protrusions, direct ceiling mount bracket] |
| Dimensions (W x H x D) (inch)
|
6-5/16 inches x 7-41/128 inches x 7-3/64 inches[excluding protrusions, direct ceiling mount bracket] |

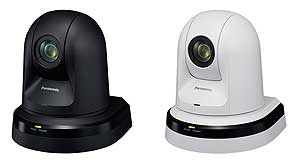

| Finish
|
[AW-HE42W] Pearl white
[AW-HE42K] Metallic black |
| Controller supported*1
|
AW-RP150GJ*1, AW-RP50, AK-HRP1000GJ*1, AK-HRP1005GJ*1 |
| INPUT
|
- |
| Power
|
DC 12 V IN, PoE+ (IEEE802.3at standard) |
| Mic/line input
|
Stereo mini-jack (?3.5 mm)
Input impedance: Approx. 2 kOhm(unbalanced)
[Mic input]
Supported microphones: Stereo mic
(plug-in power, on/off switching via menu)
Supplied voltage: 2.5 V ± 0.5 V
Mic input level: -60 dBV ± 3 dBV (0 dB=1 V/Pa,1 kHz)
[Line input]
Input level: -10 dBV ± 3 dBV |
| G/L IN
|
- |
| Genlock
|
Maximum speed during manual: 90°/s |
| OUTPUT
|
- |
| Video Output | HDMI
|
HDMI connector
* HDCP is not supported. * VIERA Link is not supported. |
| Video output | 3G/HD-SDI OUT
|
Compliant with the SMPTE424/SMPTE292M standards/75 (BNC x 1) |
| INPUT/OUTPUT
|
- |
| Input/Output Connector | LAN
|
LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function |
| Input/Output connector | RS232C
|
Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT) |
| Input/Output connector | RS422
|
CONTROL IN RS422A (RJ-45) |
| INPUT/OUTPUT connector | USB
|
Mini-B port |
| INPUT/OUTPUT connector | SD card
|
microSD card slot |
| FUNCTIONS AND PERFORMANCE
|
- |
| [Camera unit]
|
- |
| Imaging Sensors
|
1/2.3-type MOS |
| LENS
|
Motorized 20x zoom, F1.8 to F3.6
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches) equivalent: 29.5 mm (1-5/32 inches)to 612.0 mm (24-3/32 inches)] |
| Focus
|
Switching between auto and manual |
| Focus Distance
|
Entire zooming range:1.5 m (4.92 ft)
Wide end: 10 cm (0.33 ft) |
| Color separation optical system
|
On-chip color filter system |
| Minimum illumination | 59.94 Hz
|
0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation[Frame Mix 6 dB]) |
| Minimum illumination | 50 Hz
|
0.7 lx (50 IRE, F1.8, 48 dB,1/50 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/25 with accumulation[Frame Mix 6 dB]) |
| Horizontal Resolution
|
HD: 1000 TV lines Typ (Center area) |
| Gain selection*2
|
Auto, 0 dB to 48 dB (3 dB step) |
| Frame mix*3
|
Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB |
| ND filter
|
Auto*4, Through, 1/4, 1/16, 1/64 |
| Electronic shutter speed | During Full Auto
|
1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz] |
| Electronic shutter speed | During Auto
|
1/60 to 1/2000 [59.94 Hz] 1/50 to 1/2000 [50 Hz] |
| Electronic shutter speed | During Manual
|
1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz]
1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz] |
| Synchro scan
|
59.94 Hz : 59.94 Hz to 660.09 Hz (255 step) 50 Hz : 50.00 Hz to 570.12 Hz (255 step) |
| Gamma
|
Off, Normal (Low, Mid, High), Cinema |
| WHITE BALANCE
|
ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K) |
| Chroma Amount Variability
|
±3 step |
| Scene File
|
Full Auto, Manual1, Manual2, Manual3 |
| Output Format
|
HD
1080:59.94p/50p
1080:59.94i/50i
1080:29.97p/25p
1080:29.97PsF/25PsF
720:59.94p/50p |
| Synchronization System
|
Internal synchronization/External synchronization (BBS, Tri-level sync) |
| Image Stabilization
|
Optical /4-axis hybrid image stabilizer for stable |
| [USB connection]
|
* This may vary depending on the operating environment. |
| VIDEO OUTPUT
|
USB Video Class Ver1.0 |
| [USB connection]Video compression format
|
Motion JPEG |
| Resolution
|
1920 x 1080, 1280 x 720, 640 x 360 |
| Frame rate
|
max 30 fps (59.94 Hz)
max 25 fps (50 Hz) |
| AUDIO OUTPUT
|
USB Audio Class Ver1.0 |
| [USB connection]Audio compression format
|
Linear PCM, 48 kHz, 16-bit, 2 channels |
| Transfer modes(JPEG)
|
1920x1080/1280x720/640x360 |
| Supported models
|
Devices standardly equipped with a USB 2.0 compatible port |
| [Pan-tilt head unit]
|
- |
| Installation Method
|
Stand-alone (Desktop) or suspended (Hanging)*5 |
| Pan/Tilt Operation Speed
|
Maximum speed during preset: 300°/s |
| Panning range
|
±175° |
| Tilting Range
|
-30°to 90°*6 |
| Quietness
|
During preset: NC40 or less
During manual: NC35 or less |
| [Camera/pan-tilt head control]
|
- |
| IP connecting cable
|
When connecting through a hub:
LAN cable*7 (category 5 or above),max. 100 m (328 ft)
When using a PoE+ hub:
LAN cable*7 (category 5e or above),max. 100 m (328 ft)
When a hub is not used:
LAN cable*7 (category 5 or above),max. 100 m (328 ft) |
| AW protocol connecting cable
|
LAN cable*7 (category 5 or above,straight cable), max. 1000 m (3280 ft) |
| Standard protocol connecting cable
|
Mini DIN 8-pin cable, male |
| [SD card recording]
|
- |
| SD card recording
|
MPEG-4 AVC file standard compliant (.MP4) |
| Video Compression Format
|
MPEG-4 AVC/H.264 High Profile |
| Audio Compression Format
|
AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps) |
| Recording format/Bit rate | 59.94 Hz
|
1920x1080/59.94p (Up to 28 Mbps),
1920x1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/59.94p (Average 15 Mbps),
1280x720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 bps/Average 1 Mbps) |
| Recording format/Bit rate | 50 Hz
|
1920x1080/50p(Up to 28 Mbps),
1920x1080/25p(Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/50p(Average 15 Mbps),
1280x720/25p(Average 8 Mbps/Average 4 Mbps/Average 2 Mbps/Average 1 Mbps) |
| [Network]
|
- |
| Transfer modes | JPEG
|
1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (30fps/15fps/5fps)*8,
50 Hz (25fps/12.5fps/5fps)*8 |
| Transfer modes | H.264
|
1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (60fps*9/30fps/15fps/5fps)*8,
50 Hz (50fps*9/25fps/12.5fps/5fps)*8 |
| Supported protocol | IPv4
|
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,
IPv4 DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP,
RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
| Supported protocol | IPv6
|
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS,
IPv6 NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
| iOS, Android Support
|
JPEG image display |
| Accessories
|
Mount bracket for installation surface (Hanging*10 / Desktop): 1
Drop-prevention wire (already attached to the unit): 1
Bracket mounting screws (bind-head) M4 x 10 mm: 4
Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1
Power cable (1.5 m [4.92 ft]): 1
AC adaptor: 1
CD-ROM: 1 |
| Note
|
*1: It may be necessary to upgrade the version of the controller so that the controller will support the unit. *2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting.
*3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting. *4: “Auto” is available when “Scene” setting is “Full Auto”.
*5: To ensure safety, the unit must be secured using the mount bracket supplied. *6: Depending on the pan or tilt position, the camera may be reflected in the image.
*7: Use of an STP (shielded twisted pair) cable is recommended. *8: The frame rate may be lower than the setting depending on the operating conditions.
*9: When the image resolution is “640x360” or“320x180”, 60fps or 50fps cannot be selected for the frame rate.
*10: To ensure more safety, AW-HE42W/K can be secured by using the direct ceiling mount bracket (WV-Q105A). |

| General
|
- |
| Power Requirements
|
DC 12 V (Supplied AC adaptor)
DC 42 V to 57 V (PoE+ power supply) |
| Current consumption
|
1.3 A (Supplied AC adaptor)
0.5 A (PoE+ power supply) |
| Ambient Operating Temperature
|
0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature
|
-20 °C to 50 °C (-4 °F to 122 °F) |
| Mass
|
Approx. 1.5 kg (3.30 lb) |
| Dimensions (W x H x D) (mm)
|
160 mm x 186 mm x 179 mm[excluding protrusions, direct ceiling mount bracket] |
| Dimensions (W x H x D) (inch)
|
6-5/16 inches x 7-41/128 inches x 7-3/64 inches[excluding protrusions, direct ceiling mount bracket] |
| Finish
|
[AW-HE42W] Pearl white
[AW-HE42K] Metallic black |
| Controller supported*1
|
AW-RP150GJ*1, AW-RP50, AK-HRP1000GJ*1, AK-HRP1005GJ*1 |
| INPUT
|
- |
| Power
|
DC 12 V IN, PoE+ (IEEE802.3at standard) |
| Mic/line input
|
Stereo mini-jack (φ3.5 mm)
Input impedance: Approx. 2 kOhm(unbalanced)
[Mic input]
Supported microphones: Stereo mic
(plug-in power, on/off switching via menu)
Supplied voltage: 2.5 V ± 0.5 V
Mic input level: -60 dBV ± 3 dBV (0 dB=1 V/Pa,1 kHz)
[Line input]
Input level: -10 dBV ± 3 dBV |
| G/L IN
|
- |
| Speeds
|
Maximum speed during manual: 90°/s |
| OUTPUT
|
- |
| Video Output | HDMI
|
HDMI connector
* HDCP is not supported. * VIERA Link is not supported. |
| Video output | 3G/HD-SDI OUT
|
Compliant with the SMPTE424/SMPTE292M standards/75 (BNC x 1) |
| INPUT/OUTPUT
|
- |
| Input/Output Connector | LAN
|
LAN connector for IP control (RJ-45) Equipped with straight/crossover cable auto detection function |
| Input/Output connector | RS232C
|
Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT) |
| Input/Output connector | RS422
|
CONTROL IN RS422A (RJ-45) |
| INPUT/OUTPUT connector | USB
|
Mini-B port |
| INPUT/OUTPUT connector | SD card
|
microSD card slot |
| FUNCTIONS AND PERFORMANCE
|
- |
| [Camera unit]
|
- |
| Imaging Sensors
|
1/2.3-type MOS |
| LENS
|
Motorized 20x zoom, F1.8 to F3.6
[f=4.08 mm (5/32 inches) to 81.6 mm (3-7/32 inches); 35 mm (1-3/8 inches) equivalent: 29.5 mm (1-5/32 inches)to 612.0 mm (24-3/32 inches)] |
| Focus
|
Switching between auto and manual |
| Focus Distance
|
Entire zooming range:1.5 m (4.92 ft)
Wide end: 10 cm (0.33 ft) |
| Color separation optical system
|
On-chip color filter system |
| Minimum illumination | 59.94 Hz
|
0.7 lx (50 IRE, F1.8, 48 dB,1/60 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/30 with accumulation[Frame Mix 6 dB]) |
| Minimum illumination | 50 Hz
|
0.7 lx (50 IRE, F1.8, 48 dB,1/50 without accumulation)
0.35 lx (50 IRE, F1.8, 48 dB,1/25 with accumulation[Frame Mix 6 dB]) |
| Horizontal Resolution
|
HD: 1000 TV lines Typ (Center area) |
| Gain selection*2
|
Auto, 0 dB to 48 dB (3 dB step) |
| Frame mix*3
|
Auto, Off, 6 dB, 12 dB, 18 dB, 24 dB |
| ND filter
|
Auto*4, Through, 1/4, 1/16, 1/64 |
| Electronic shutter speed | During Full Auto
|
1/60 to 1/2000 (Auto Slow Shutter: Off)[59.94 Hz] 1/30 to 1/2000 (Auto Slow Shutter: On)[59.94 Hz] 1/50 to 1/2000 (Auto Slow Shutter: Off)[50 Hz] 1/25 to 1/2000 (Auto Slow Shutter: On)[50 Hz] |
| Electronic shutter speed | During Auto
|
1/60 to 1/2000 [59.94 Hz] 1/50 to 1/2000 [50 Hz] |
| Electronic shutter speed | During Manual
|
1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [59.94 Hz]
1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 [50 Hz] |
| Synchro scan
|
59.94 Hz : 59.94 Hz to 660.09 Hz (255 step) 50 Hz : 50.00 Hz to 570.12 Hz (255 step) |
| Gamma
|
Off, Normal (Low, Mid, High), Cinema |
| WHITE BALANCE
|
ATW, AWB A, AWB B, ATW, 3200K,5600K, VAR (2400K to 9900K) |
| Chroma Amount Variability
|
±3 step |
| Scene File
|
Full Auto, Manual1, Manual2, Manual3 |
| Output Format
|
HD
1080:59.94p/50p
1080:59.94i/50i
1080:29.97p/25p
1080:29.97PsF/25PsF
720:59.94p/50p |
| Synchronization System
|
Internal synchronization/External synchronization (BBS, Tri-level sync) |
| Image Stabilization
|
Optical /4-axis hybrid image stabilizer for stable |
| [USB connection]
|
* This may vary depending on the operating environment. |
| VIDEO OUTPUT
|
USB Video Class Ver1.0 |
| [USB connection]Video compression format
|
Motion JPEG |
| Resolution
|
1920 x 1080, 1280 x 720, 640 x 360 |
| Frame rate
|
max 30 fps (59.94 Hz)
max 25 fps (50 Hz) |
| AUDIO OUTPUT
|
USB Audio Class Ver1.0 |
| [USB connection]Audio compression format
|
Linear PCM, 48 kHz, 16-bit, 2 channels |
| Transfer modes(JPEG)
|
1920x1080/1280x720/640x360
59.94 Hz: 30fps/15fps/5fps, 50 Hz: 25fps/12.5fps/5fps Supported |
| Supported models
|
Devices standardly equipped with a USB 2.0 compatible port |
| [Pan-tilt head unit]
|
- |
| Installation Method
|
Stand-alone (Desktop) or suspended (Hanging)*5 |
| Pan/Tilt Operation Speed
|
Maximum speed during preset: 300°/s
Maximum speed during manual: 90°/s |
| Panning range
|
±175° |
| Tilting Range
|
-30°to 90°*6 |
| Quietness
|
During preset: NC40 or less
During manual: NC35 or less |
| [Camera/pan-tilt head control]
|
- |
| IP connecting cable
|
When connecting through a hub:
LAN cable*7 (category 5 or above),max. 100 m (328 ft)
When using a PoE+ hub:
LAN cable*7 (category 5e or above),max. 100 m (328 ft)
When a hub is not used:
LAN cable*7 (category 5 or above),max. 100 m (328 ft) |
| AW protocol connecting cable
|
LAN cable*7 (category 5 or above,straight cable), max. 1000 m (3280 ft) |
| Standard protocol connecting cable
|
Mini DIN 8-pin cable, male |
| [SD card recording]
|
- |
| SD card recording
|
MPEG-4 AVC file standard compliant (.MP4) |
| Video Compression Format
|
MPEG-4 AVC/H.264 High Profile |
| Audio Compression Format
|
AAC-LC (48 kHz, 16 bit, 2 ch, 128 kbps) |
| Recording format/Bit rate | 59.94 Hz
|
1920x1080/59.94p (Up to 28 Mbps),
1920x1080/29.97p (Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/59.94p (Average 15 Mbps),
1280x720/29.97p (Average 8 Mbps/Average 4 Mbps/Average 2 bps/Average 1 Mbps) |
| Recording format/Bit rate | 50 Hz
|
1920x1080/50p(Up to 28 Mbps),
1920x1080/25p(Average 15 Mbps/Average 10 Mbps/Average 6 Mbps),
1280x720/50p(Average 15 Mbps),
1280x720/25p(Average 8 Mbps/Average 4 Mbps/Average 2 Mbps/Average 1 Mbps) |
| [Network]
|
- |
| Transfer modes | JPEG
|
1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (30fps/15fps/5fps)*8,
50 Hz (25fps/12.5fps/5fps)*8 |
| Transfer modes | H.264
|
1920x1080, 1280x720, 640x360, 320x180,
59.94 Hz (60fps*9/30fps/15fps/5fps)*8,
50 Hz (50fps*9/25fps/12.5fps/5fps)*8 |
| Supported protocol | IPv4
|
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,
DHCP, DNS, NTP, IGMP, UPnP, ICMP, ARP, RTSPoverTCP,
RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
| Supported protocol | IPv6
|
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS,
NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS), MultiCast/UniCast |
| iOS, Android Support
|
JPEG image display |
| Accessories
|
Mount bracket for installation surface (Hanging*10 / Desktop): 1
Drop-prevention wire (already attached to the unit): 1
Bracket mounting screws (bind-head) M4 x 10 mm: 4
Main unit mounting screw (with flat washer, spring washer) M3 x 6 mm: 1
Power cable (1.5 m [4.92 ft]): 1
AC adaptor: 1
CD-ROM: 1 |
| Note
|
*1: It may be necessary to upgrade the version of the controller so that the controller will support the unit. *2: During Auto, 6 dB to 48 dB (6 dB step) are available for AGC Max Gain setting.
*3: During Auto, 0 dB, 6 dB, 12 dB and 18 dB are available for Auto F.Mix Max Gain setting. *4: “Auto” is available when “Scene” setting is “Full Auto”.
*5: To ensure safety, the unit must be secured using the mount bracket supplied. *6: Depending on the pan or tilt position, the camera may be reflected in the image.
*7: Use of an STP (shielded twisted pair) cable is recommended. *8: The frame rate may be lower than the setting depending on the operating conditions.
*9: When the image resolution is “640x360” or“320x180”, 60fps or 50fps cannot be selected for the frame rate.
*10: To ensure more safety, AW-HE42W/K can be secured by using the direct ceiling mount bracket (WV-Q105A). |
