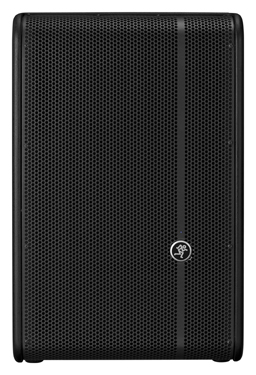

Mackie HD1221

Model: HD1221
12" 2-Way High-Def. Powered Loudspeaker

Never before has there been such a perfect blend of power, portability and professional sound. The HD1221 2-Way High-Definition Powered Loudspeaker delivers class-leading power, unmatched clarity and extreme flexibility in a design that looks as good as it sounds. Class-D Fast Recovery™ amplification produces 1200W of peak system power. High-Definition Audio Processing incorporates next-generation Mackie Active electronics and re-defines powered loudspeakers by implementing Mackie’s patented acoustic correction processing for an experience that is unrivaled in the world of portable powered PA systems. The flexible design lets you stack it, pole-mount it, fly it or even use it as a premium stage monitor. The world of live sound can be complicated...at least your loudspeaker choice is an easy one.




MAXIMIZE YOUR OUTPUT
This potent bi-amplified system is extremely compact (even smaller than the legendary SRM450), but still very powerful, providing a beefy 500W RMS low-frequency amplifier and a 100W RMS high-frequency amplifier that, when combined, can deliver a max SPL up to 133 dB (calculated, measured maximum SPL of 124 dB). There is a lot of debate regarding SPL measurements, and what you see on paper doesn’t always tell the whole story. To forever eliminate confusion and prove that Mackie is dedicated to providing real, testable specs, we have worked up a handy (and somewhat nerdy) guide to the shady world of SPL measurements: Will the Real Maximum SPL Please Stand Up?. Measurements and calculators aside, it only takes one listen to know that the HD1221 delivers more bang for your buck that any other ultra-portable 12" 2-way loudspeaker out there.

The HD1221 incorporates the latest in Class-D amplifier technology to deliver a chest-pounding 1200W of peak system power. Both internal amps are designed using Mackie’s legendary Fast Recovery™ circuitry. Other amplifiers can “latch” when pushed to clipping, leading to distorted audio, but Fast Recovery™ amplification reacts instantly to the occasional aggressive transient, drastically reducing the time it takes for the amp to recover, ensuring clean audio under the most demanding of situations.

DEFINE THE EXPERIENCE
Mackie created the “Active” electronics game long ago, incorporating precision crossovers and transducer time/phase alignment processing into the loudspeaker. This instantly took the guesswork out of setting up a perfectly tuned system and the world of loudspeakers irreversibly changed. HD Series High-Definition Powered Loudspeakers not only advance Active technology, they take it to an entirely new level, marking the next major advancement for powered loudspeakers: High-Definition Live Sound.

Even the most expensive loudspeakers on the market have inherent sonic issues that arise from the very nature of loudspeaker design. Horn-loaded drivers tend to have “honkiness” to them and there are physical resonances in the upper range of cone drivers that can sound nasty.

Introducing Mackie High-Definition Audio Processing. The key to high-definition live sound is the detailed measurement and analysis of the inherent problems of horns and woofers. After that, the creation and application of some seriously NASA-esque (and patented) acoustic correction algorithms work to correct these very issues. Vocals become clean and intelligible and the highs are smooth and never harsh. The resulting experience is not only high-definition, it is truly a moment of clarity for anyone within earshot.

FRIENDS WITH BENEFITS
The HD1221 is a perfectly tuned system that is truly greater than the sum of its parts. Mackie benefits from collaborative engineering efforts with the most high-end, professional gear makers out there. For the HD1221, we worked closely with both Eastern Acoustic Works (EAW) and Martin Audio. The engineering team at EAW played a big role in designing this diminutive sonic wonder. They fine-tuned the system for complete optimization and created custom-designed transducers, ensuring maximum efficiency and performance. There’s also an innovative horn design straight from the award-winning engineers at Martin Audio.

The high-end 12" neodymium woofer features a 3" voice coil and is built to handle the massive power delivered by the low-frequency amplifier. The magnet is made using neodymium, which provides a greater magnetic field with far less material. This makes the woofer extremely lightweight without sacrificing one bit of performance. And the large 3" voice-coil is built to handle and dissipate far more heat than traditional designs.

The 1.75" compression driver brilliantly reproduces high-frequencies with a diaphragm made using heat-treated titanium. Heat-treating increases the rigidity of the diaphragm, eliminating nasty distortion that can occur due to inconsistencies on its surface. It also greatly increases the life of the driver, so you can count on stunning high-frequency production for years. The HF driver is mounted to a custom-designed 90 x 50 horn by Martin Audio that not only delivers superior performance for its ultra-compact size, it is also user-rotatable by 90-degrees to work best for the application at hand.

USER-ADJUSTABLE VOICING
The HD1221 delivers professional tone that is easily adjustable to suit the application at hand. On the back, you’ll find a three-position voicing switch which provides the right tone for the job. Leave it in the “Normal” position for standard PA applications. It’s the perfect setting to use when cranking the HD1221 to its optimum volume. The “Contour” position adds a small boost to both the high and low end. This is great for getting the best full-range tone when running at lower levels. And if you’re using the HD1221 as a stage monitor, you’ve got the “Monitor” position, which really lets the vocals cut through a monitor mix while keeping stage rumble and feedback to a minimum.

HIGHLY CONFIGURABLE
The above acoustic wizardry (more LOTR than Harry Potter) has been engineered to fit into one of the smallest, most portable cabinets on the market. It would have been easy enough to simply jam all these premium components into a flimsy enclosure, slapped on a flashy logo and some plastic end caps and called it a day. That’s what everyone else is doing. However, Mackie has long been dedicated to providing affordable gear that can go toe-to-toe with the most expensive gear on the market and the HD1221’s all-wood enclosure is no exception. The 15 mm thick birch plywood cabinets are extremely rugged, with substantial internal bracing and a coating of durable, textured black paint. A cold-rolled, powder-coated steel grill provides a sleek, modern look that is designed to blend into the environment. You can even turn off the trademark blue LED on the front of the speaker if stealth is your thing. A work of modern art? Maybe. Rugged and handsome? Absolutely.

These professional features combine to make the HD1221 one of the most versatile boxes around. It can be easily pole-mounted, either directly onto an HD1501 Powered Subwoofer, or atop a standard tripod. If you’re feeling all fancy, there are 12 integrated flypoints for vertical or horizontal rigging. Not enough flexibility? Fine...the cabinet design also makes the HD1221 one of the best stage monitors available...not only due to the specific monitor voicing mode (see above), but also because of the steep asymmetrical design that directs all that sonic goodness at your head, not your belt buckle. If you’ve read down this far, you either love the engaging writing style of our copywriter or, more likely, you are interested in the HD1221. Use the handy Find a Dealer function above to locate a dealer and get a demo. Or, just click on Buy Now Online and get down to business.

  • 1200W of ultra-efficient Class-D Fast Recovery™ amplification
    » LF 500W RMS / 1000W peak
    » HF 100W RMS / 200W peak

  • High-definition digital processing includes :
    » Revolutionary patented acoustic correction
    » Transducer time alignment and phase correction
    » Precision 2-way crossover

  • Custom designed transducers by EAW®
    » 12” neodymium woofer with 3” voice coil
    » 1.75” compression driver with heat-treated titanium diaphragm

  • Custom designed user-rotatable 90 x 50 horn by Martin Audio®

  • 60 degree monitor angle for maximum coverage on stage

  • Three user-selectable voicing modes for easy system tuning

  • Ultra-compact and lightweight (50 lb / 22.7 kg)

  • Integrated limiting and protection circuitry

  • Rugged all wood cabinet (15mm birch)

  • 12 integrated fly points for horizontal and vertical rigging

  • Stand / pole mountable

General Specifications
Acoustic Performance: Frequency Response(-3 dB): 65 Hz - 18 kHz
Frequency Response(-10 dB): 55 Hz- 20 kHz
Horizontal Coverage (-6 dB): 90°, 2 kHz to 10 kHz
Vertical Coverage(-6 dB): 50°, 2kHz to 10 kHz
Max SPL peak: 124 dB
Max SPL peak: 133 dB
Crossover Point: 1.5 kHz
Input/ Output: Input Type: Female XLR Balanced
Input Impedance: 11 kΩ balanced
Loop Out: Male XLR balanced
Voicing Mode: Contour: LF, HF boost
Normal: Nominally flat
Monitor: 100 Hz HPF, broad cut @ 3 kHz
Low- Frequency Power Amplifier: Rated Power:  500 watts, 1000 watts peak
Rated THD: <0.03%
Cooling: Convection Extrusion
Design: Class D
High-Frequency Power Amplifier: Rated Power: 100 watts, 200 watts peak
Rated THD: <0.03%
Cooling: Convection Extrusion
Design: Class D
Low-Frequency Transducer: Diameter: 12 in / 305 mm
Voice Coil Diameter: 3 in / 76 mm
Diaphragm Material: Paper
Magnet Material: Neodymium
High-Frequency Transducer: Voice Coil Diameter: 1.75 in / 44 mm
Horn Entry Diameter: 1 in / 25 mm
Diaphragm Material: Heat-treated titanium
Magnet Material: Ferrite
Safety Features: RMS limiting, power supply and amplifier thermal protection
Line Input Power: US: 100 - 120 VAC, 50 - 60 Hz, 200W
EU, CN: 200 - 240 VAC, 50 - 60 Hz, 200W
AC Connector: 3-pin IEC 250 VAC
Construction Features: Basic Design: Asymmetrical Monitor, 60° tilt
Material: 15 mm exterior grade premium birch plywood
Finish: High durability black paint
Handles: One on each side, one on top
Grille: Powder-coated galvanized steel
Display LEDs: Power ON, Voicing Mode selection, Sig / Limit, Thermal Protection, Front Power
                        Light On
Fly Points: Twelve M10 x 1.5  mm
Monitor Angle: 60°
Operating Temperature: 0° - 40°
 Physical Properties: Height: 24.0 in/ 610 mm
Width: 15.2 in / 386 mm
Depth: 15.0 in / 381 mm
Weight: 50 lb / 22.7 kg
Mounting Methods: Floor Mount, or fly via 12 integrated M10 mounting points ( using M10 x 1.5 x 37 mm forged shoulder eyebolts)
