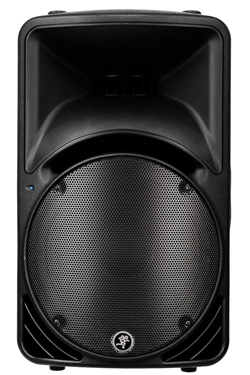

Mackie C300z

Model: C300z
12" Two-Way Passive Loudspeaker

Are you looking for renowned Mackie sound quality in a portable, lightweight package but you've already invested beaucoups cash on pro-level power amps? Want to instantly upgrade the sound of your existing powered mixer or amplifier without breaking the bank?

Good news for you, because our C300z 2-Way Portable Passive Loudspeakers put the superior clarity, wide dispersion, and legendary ergonomics of the SRM Series within reach of any serious musician, DJ, or small club. These compact-yet-loud speakers can be pole-mounted for use as a small full-range PA system, combined with subwoofers as needed, and even employed as high-quality passive floor monitors.




PRECISION TUNED BY THE SPEAKER BRAINS AT EAW
The new C Series passive Loudspeakers represent Mackie's first lightweight passive speakers tuned exclusively by the EAW loudspeaker engineering team. We're talking about the same team with more than 25 years of high-output loudspeaker expertise, having created loudspeaker systems for critical applications as diverse as the Super Bowl, Iron Maiden, and the Pope. And although loudspeakers for these mega-systems cost exponentially more than the stalwart C300z, many of the same concepts applied, namely: designing custom 12" LF drivers with a frequency range from 50 Hz - 3000 Hz and a 3" voice coil that can take a pounding. And a 1.75" High-Frequency titanium Driver and Horn providing a wide, controlled dispersion pattern and precise reproduction of the critical 1000 Hz - 20,000 Hz upper mid-range and high frequencies.

CROSSOVERS TUNED TO PERFECTION
Tuning a crossover (i.e. voicing a system), involves dozens of critical decisions that many manufacturers overlook. In the end, it is all about balancing the design so that you get the best subjective results from the speaker while maintaining a good technical implementation. The crossover in the C Series is a unique Low Impedance Compensated Crossover (LICC) design with an asymmetrical slope. With EQ and crossover points meticulously chosen so that beamwidth patterns match in both drivers, C Series loudspeakers offer natural sound at all volume levels.

ULTRA-WIDE DISPERSION
Ever been to a show where the music sounds great in front, but craps out once you get to the back or sides of the room? We have, and that's why we gave the C300z a multi-cell horn throat aperture. Sure, it's hard to say, but what it does is allow for much wider and more even dispersion of high and mid frequencies—so the wallflowers get the same great listening experience as those up front.

BETTER THAN YOUR AVERAGE BOX
Anyone with a factory can build a box and stick some speakers in it (and that's just what many do). But low-frequency transducers in square boxes can create resonances that reflect off the rear wall and pass through the woofer cone out of phase, and ready to mess up your sound. The C300z enclosure is an asymmetrical monocoque design with no parallel surfaces, causing mid and high frequency resonance's to be reflected at angles into internal damping materials, instead of interfering with the woofer doing its thing. Read more.

SUPERB FLOOR MONITOR
A good floor monitor plays loudly without generating feedback through vocal microphones. A poor floor monitor, on the other hand, will generate feedback just about the time you turn it up to a useable level. Floor monitor feedback is often caused by uneven frequency response and dispersion; some frequencies arrive at the microphone much louder than others. These "spikes" are what trigger feedback as the floor monitor volume is increased. The C300z has incredibly smooth, spike-free response and dispersion over a wide range of treble frequencies. So you can increase its volume without boosting those nasty, feedback-inducing spikes. Without extensive tuning, no passive speaker or specialized floor wedge in this class can even come close.

  • Portable Precision Passive loudspeaker with 1.75" HF compression driver and 12" LF transducer

  • HF compression driver mounted on a multi-celled aperture, with a constant directivity horn for room-wide 90° x 45° dispersion

  • Precise reproduction of critical upper mid-range and high frequencies

  • Tough, impact-resistant enclosure with sturdy handles, pole-mount, and integrated rigging points

  • Designed for optimum performance with Mackie powered mixers and power amplifiers

  • 750W peak power handling

  • Three setup configurations: pole mount, flyable and wedge

  • Passive version of the best-selling SRM450

General Specifications
Acoustic Performance: Frequency Response(-3 dB): 55 Hz - 18  kHz
Frequency Response(-10 dB): 45
Hz - 20 kHz
Max SPL Long-term: 123 dB @ 1m
Low-Frequency Crossover Type: 24 dB / Octave, time offset corrected
High-Frequency Crossover Type: 24 dB / Octave
Crossover Point: 1800 Hz
Audio: Input Type Connector Type: Speakon™-style NL 4-jack, 1/4" TS jack
Input Impedance: 8 Ω
Power Handling
RMS: 300 watts
Music: 550 watts
Peak: 750 watts
Low-Frequency Transducer: Diameter: 12 in / 300 mm
Voice Coil Diameter: 3 in / 75 mm
Magnet Material: Ferrite
High-Frequency Transducer: Diameter: 1.7 in / 44.5 mm
Horn Exit Diameter: 1 in / 24.5 mm
Diaphragm Material: Heat treated titanium
Horn Design: Type: Conical and Exponential
Mouth Size: 12 in / 305 mm (W) x 7 in / 178 mm (H)
Horizontal Coverage: 90° ( 1 kHz - 20 kHz)
Vertical Coverage: 45° ( 2.8 kHz - 20 kHz )
Safety Features: Over-Excursion Protection: Second-order high-pass filter
Driver Protection: Dynamic protection for compression driver
Construction Features: Basic Design: Asymmetrical Trapezoidal
Material: Polypropylene
Finish: Black, textured finish
Handles: One on right side, one on top
Grille: Perforated metal with weather-resistant coating
Operating Temperate Range: -10°C to 45°C, 14°F to 113°F
 Physical Properties: Height: 26.1 in/ 663 mm
Width: 16.0 in / 406 mm
Depth: 14.8 in / 376 mm
Weight: 46 lb / 20.9 kg
Mounting Methods: Floor mount, pole mount, or fly via integrated M10 threaded inserts ( two each located on each side, top, bottom and rear of enclosure)
