Compact, highly
portable XDCAM HD22 (50 Mbps) handheld Camcorder
The PMW-100’s 1/2.9-inch Exmor
CMOS sensor and MPEG HD422 codec offers astonishingly high quality
HD image capture in a compact, light weight chassis. It’s a
perfect partner for the popular PMW-500 XDCAM HD422 shoulder
camcorder, with all the benefits of the established XDCAM
production workflow for speed and reliability. Advanced features
such as slow and quick motion, cache recording and Night Shot also
ensure the PMW-100 is a no-compromise choice when used
independently.
For applications such as news gathering, documentaries and events,
the PMW-100’s low power consumption and dual recording media
slots provide plenty of endurance alongside its exceptional
handheld portability.
PrimeSupport
This product comes with PrimeSupport – fast, hassle-free
repairs and a helpline offering expert technical advice. Which
gives you the peace of mind that Sony is looking after your
equipment, and your business. |
1/2.9-inch type Exmor CMOS sensor for
uncompromising full HD image capture
The PMW-100 is equipped with a 1/2.9-inch type Exmor CMOS sensor,
providing super blow-light sensitivity with a low noise level,
enabling the camcorder to capture beautiful pictures while
remaining light weight and compact.
MPEG 422 /
420 HD and SD recordings ensure compatibility with existing XDCAM
work flows
The PMW-100 supports both MPEG 422 and 420 recording modes, so
footage can be easily intercut with material shot by either optical
or memory-based XDCAM and XDCAM EX camcorders. The PMW-100 also
supports both UDF and FAT shooting modes on SxS cards so you can
use existing XDCAM and XDCAM EX work flows.
Large
3.5-inch WVGA (852x480) LCD panel
The PMW-100 is equipped with a large, easy-to-read, 3.5-inch WVGA
colour LCD panel. This higher resolution LCD panel helps you to
make more precise focusing adjustments as well as to read the
status and markers displayed on the LCD panel. When this LCD panel
is not being used, it is placed above the lens so it’s out of
the way when carrying the camcorder.
Over 4 hours
continuous recording with two 64 GB SxS memory
cards
The PMW-100 uses Sony’s renowned high-speed SxS Express Card
recording media. The PMW-100has two SxS card slots which support
both SxS Pro and SxS-1 recording media. Using a singleSxS-1 64 GB
memory card, you can record approximately120 minutes of 50 Mbps
HD422 video. Using 64 GB SxS cards in both SxS slots enables you to
record approximately 240 minutes of video. While recording to one
card, you can exchange the other full SxS card for an empty one. In
case of an emergency, a Memory Stick*, SD Card* or XQD can be used
as alternative recording media in the PMW-100 with the appropriate
memory card adaptor.
*FAT mode only
Slow and
quick motion recordings
The PMW-100 offers over-cranking and under-cranking, which enables
photographers to create slow- and fast-motion visual effects
in-camera. With this Slow & Quick Motion function, images are
recorded natively with no padded frames and at full resolution. The
quality of the slow- and fast-motion images created in-camera is
significantly higher than those created through an editing
process.

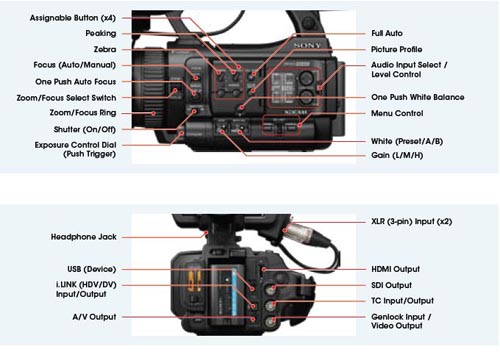

Lens controls
for greater versatility
Focusing and zooming are manually controlled using the focus/zoom
ring. Also, the exposure level can be manually controlled using an
exposure control dial. A wide conversion lens is also available for
close range shooting.
Instant
shooting with video buffer
Never be caught off guard and miss a critical shot. The PMW-100
will start recording within 3.5 seconds after turning the power on.
Also, cache recording enables you to constantly buffer a 15-second
video loop in camera. When you press the record button, the loop is
written to the SxS card while normal recording begins.
SD
operation
The PMW-100
supports DVCAM recording as well as MPEG HD recording. The file
format in DVCAM recording mode is selectable from either MXF or
AVI, and most non-linear editing systems accept these files. The
PMW-100 is also equipped with an i.LINK interface and ingest to
non-linear editing systems can be done via the i.LINK (DV)
interface as well.
Multi-camera
operation
The PMW-100 is
equipped with Gunlock input and time code input/output (selectable)
in order to support multiple camera operation. Video from the
cameras (e.g. through SDI) can be connected to a switcher for live
switching. Or the recorded content on the camcorders can be edited
with a non-linear editing system that offers a multi-camera editing
function. |

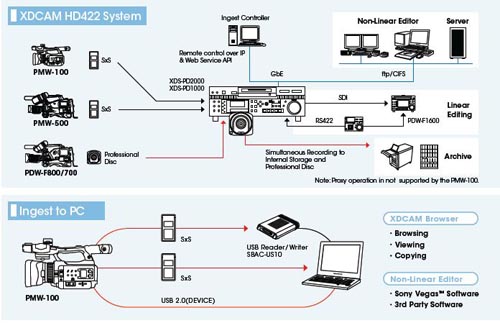

XDCAM
HD422 Workflow
|
|
General
|
| Mass |
Approx 1.5 kg
(body)
Approx. 1.8 kg (with lens hood, eye piece, BP-U30 battery, a SxS
memory card) |
| Power Requirements |
DC 12
V |
| Power Consumption |
"Approx. 12 W (while
recording, EVF On, LCD monitor Off, IO Select Off)" |
| Operating Temperature |
0°C to
40°C |
| Storage Temperature |
-20°C to
+60°C |
| Continuous Operating Time |
Approx. 2 hrs with
BP-U30 battery (while recording, HQ 1920 59.94i mode, EVF On, LCD
monitor Off, I/O Select Off)" |
| Recording Format (Video) |
UDF
•HD422 mode: CBR, maximum bit rate: 50 Mbps, MPEG-2
422P@HL
•HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL
•DVCAM mode: DVCAM
FAT
•HQ 1920 mode: VBR, 35 Mbps, MPEG-2 MP@HL
•HQ 1440 mode: VBR, 35 Mbps, MPEG-2 MP@HL
•SP 1440 mode: CBR, 25 Mbps, MPEG-2 MP@H-14
•DVCAM mode: DVCAM |
| Recording Format (Audio) |
UDF
•HD422 mode: LPCM 24 bits, 48 kHz, 4 channels
•Other mode: LPCM 16 bits, 48 kHz, 4 channels
FAT
•HD mode: LPCM 16 bits, 48 kHz, 4 channels
•SD mode: LPCM 16 bits, 48 kHz, 2 channels
UDF
•HD 422 mode |
| Recording Frame Rate |
UDF
HD422 Mode: MPEG-2 422P@HL, 50Mbps/ CBR
•1920x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
•1280x720/ 59.94p, 50p, 29.97p, 25p, 23.98p
•HD420 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
•1440x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
•1280x720/ 59.94p, 50p, 23.98p
DVCAM Mode
•720x480/ 59.94i, 29.97PsF
•720x576/ 50i, 25PsF |
| |
FAT
HQ 1920 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
•1920x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
HQ 1440 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
•1440x1080/ 59.94i, 50i, 29.97p, 25p, 23.98p
HQ 1280 Mode: MPEG-2 MP@HL, 35Mbps/ VBR
•1280x720/ 59.94p, 50p, 29.97p, 25p, 23.98p
SP 1440 Mode: MPEG-2 MP@H-14, 25Mbps/ CBR
•1440x1080/ 59.94i, 50i, 23.98p (2-3 pull down)
DVCAM Mode
•720x480/ 59.94i, 29.97PsF
•720x576/ 50i, 25PsF
Fixed |
| Recording/Playback |
Approx. 120 min with
SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 60 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 30 min with SBP-16 (16 GB) memory card
HD 420 mode:
Approx. 180 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 90 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 45 min with SBP-16 (16 GB) memory card
DVCAM mode:
Approx. 220 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card |
| |
FAT
HQ 1920/HQ 1440 mode:
Approx. 200 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 100 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 50 min with SBP-16 (16 GB) memory card
SP 1440 Mode:
Approx. 280 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 140 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 70 min with SBP-16 (16 GB) memory card
DVCAM mode
Approx. 260 min with SBP-64/ SBS-64G1A (64 GB) memory card
Approx. 130 min with SBP-32/ SBS-32G1A (32 GB) memory card
Approx. 65 min with SBP-16 (16 GB) memory card |
|
Lens
|
| Lens Mount |
10x (optical),
servo/manual
f = 5.4 - 54 mm (equivalent to 40-400 mm on 35 mm
lens) |
| Focus |
M37 mm, pitch
0.75mm
BNC (x1) (switchable to Video out) 1.0 Vp-p,
75Ω" |
|
Camera
Section
|
| Built-in Optical Filters |
1/32 sec to 1/2,000
sec |
| Shutter Speed (time) |
2, 3, 4, 5, 6, 7, 8,
16, 32, and 64-frame accumulation
720p: Frame rate selectable from 1 fps to 60 fps |
| Sensitivity (2000 lx, 89.9%
reflectance) |
0.40 lx (typical)
(1920 x 1080/59.94i mode, F1.8, +18 dB gain, with 64-frame
accumulation, Gamma off, 100% video level)
0.08 lx (typical) (1920 x 1080/59.94i mode, F1.8, +18 dB gain, with
64-frame accumulation, Gamma on, 50% video level) |
| Minimum Illumination |
Preset (3200K),
Memory A, Memory B/ATW"
-3, 0, 3, 6, 9, 12, 18 dB, AGC |
| Registration |
3.5-inch type color
LCD monitor: 852 (H) x 3 (RGB) x 480 (V), 16:9 |
|
Input/Output
|
| Genlock Input |
BNC (x1) (switchable to TC in) SMPTE 12M-2-2008
standard 1.0Vp-p, 10kΩ" |
| SDI Input |
XLR-type 3-pin (female) (x2), line/mic/mic +48 V
selectable
Line: +4dBu
Mic: -30dBu--70dBu"
BNC (x1), HD/SD selectable
SMPTE 292M/259M standards"
A/V multi connector -10dBu (Reference Level),
47kΩ" |
| Video Output |
BNC (x1) (switchable
to TC in)
SMPTE 12M-2-2008 standard
1.0Vp-p, 10kΩ" |
| Audio Output |
Stereo mini jack (x1)
-18dBu 16Ω" |
| Timecode Output |
BNC (x1) (switchable
to TC in)
SMPTE 12M-2-2008 standard 1.0Vp-p, 10k |
| Earphone Output |
Stereo mini jack (x1)
-18dBu 16Ω |
| DC Input |
DC jack |
| USB |
USB device, mini-B (x1) |
| Composite Output |
AV multi connector, NTSC or PAL |
|
Monitoring
|
|
Viewfinder
|
0.24-inch type color
LCD: 392 (H) x 224 (V), 16:9 |
|
Other Equipment
|
|
Built-in LCD Monitor
|
3.5-inch type color
LCD monitor: 852 (H) x 3 (RGB) x 480 (V), 16:9 |
|
Built-in
Microphone
|
Omni-directional
stereo electret condenser microphone |
|
Supplied Accessories**
|
· Lens hood x1
· Lens cap x1
· Infrared Remote
Commander x1
· USB cable x1
· AV connecting cable
x1
·
BP-U30 battery pack x1
· BC-U1 battery charger
x1
·
Shoulder strap x1
· Lithium battery (CR2032
for backup) x1
· Lithium battery (CR2025 for
the IR Remote Commander) x1
· CD-ROM: Operating
instructions in PDF x1
· Operating instructions
x1
|
|
|
