Sony XDCA-55, XDCA-53, XDCU-50
XDCA-55 & XDCA-53 Attached Images
XDCA-55 + PMW-350+ DXF-C50W
Sony

XDCA-53 + PMW-EX3 + VCT-SP2BP (Camcorder Support)
Sony

System Configuration

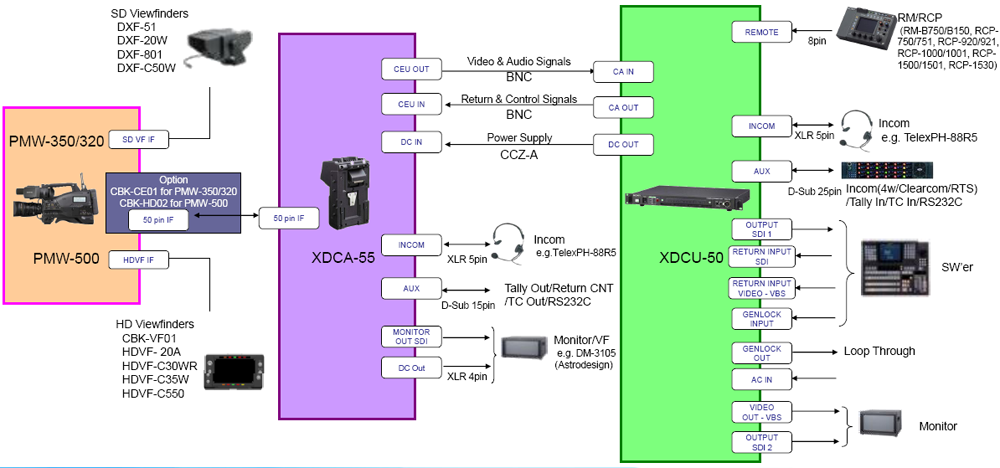

System Chart (PMW-350/320/500)
Click for big picture
Sony

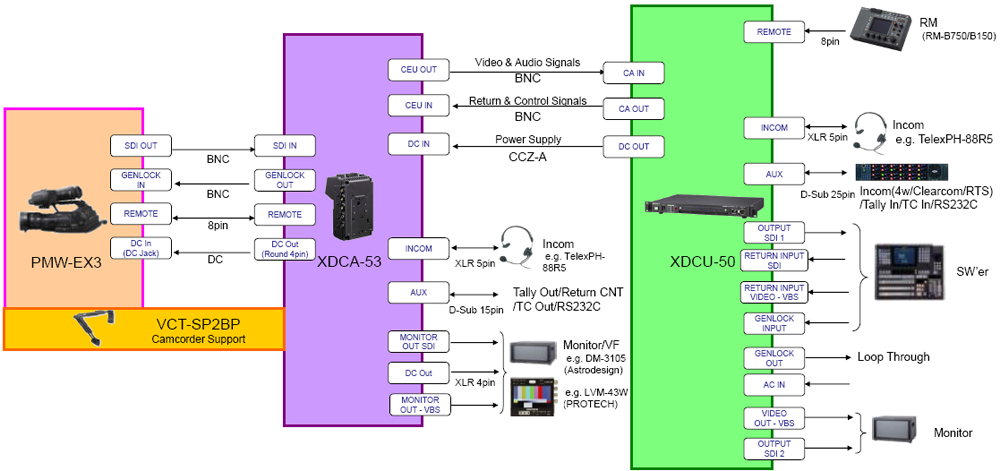

System Chart (PMW-EX3)
Click for big picture

Sony
Packaged Items


Supplied Items (Bundled Items)


XDCA-55


– Operational Manual (CD-ROM : 7 Languages, Paper : English, Japanese )
– Cable Clamp Belt (x1)
– Bracket for PMW-320/350/500


XDCA-53


– Operational Manual (CD-ROM : 7 Languages, Paper : English, Japanese )
– Parts to attach EX3 and XDCA-53 to VCT-SP2BP (x3) -> Details explained from the next pages.
– Connection Cable Set between XDCA-53 and EX3
RM Cable (approx.30cm)
DC Jack Exchange Cable (approx. 25cm)
BNC (x2, approx.35cm)
– Cable Clamp Belt (x1)


XDCU-50


– Operational Manual (CD-ROM : 7 Languages, Paper : English, Japanese )
– (Front Cover)
– Rack Angle Kit
– Number Plate (for XDCU-50)


Supplied Items (Parts to attach EX3 and XDCA-53 to VCT-SP2BP)


Parts Configurations
(A) : Plate to fix EX3 on VCT-SP2BP (4-197-753-xx)
(B) : CA(XDCA-53) bracket ASSY(A-1786-229-A)
(C) : Screw base for EX3 (4-197-752-xx)



Sony Sony Sony
(A) (B) (C)


Supplied Items (How to attach EX3 and XDCA-53 to VCT-SP2BP Part1)

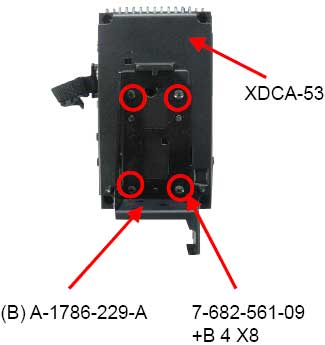

1 : Attach (A) 4-197-753-xx on VCT-SP2BP 3 : Stick EX3 and VCT-SP2BP together 5 : Attach (B) A-1786-229-A CA bracket ASSY on the XDCA-53 with 7-682-561-09 +B 4 X8 (4 pcs )
Sony Sony Sony


Supplied Items (How to attach EX3 and XDCA-53 to VCT-SP2BP Part2)

2 : Insert (C) 4-197-752-xx into the screw hole of PMW-EX3 4 : Fasten the screw on the VCT-SP2BP 6 : Attach XDCA-53 with (B)A-0517-690-A on the rear end of VCTSP2BP with 7-682-548-09 +B 3X8 (2 pcs )
Sony Sony Sony




Non-Supplied Items for the System Configuration

Connection Cables to be prepared at customer side

CCZ-A Cable
– CCZ-A5 / CCZ-A10 / CCZ-A25 / CCZ-A50 / CCZ-A100
BNC Cables
AC Power Cable for XDCU-50
D-Sub Cables for AUX

Applicable Remote Controllers


RM-B750/B150,RCP-750/751/920/921, RCP-1000/1001/1500/1501/1530

Other 3rd Party's Items


Monitor:
Incom Headset:
Focus Control / Zoom Control
