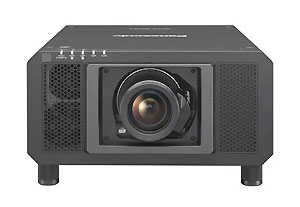

Panasonic PT-RZ12KU 3-Chip DLP Laser Projector
Panasonic PT-RZ12KU 3-Chip DLP™ Large
Venue Laser Projector is a powerful and versatile solution designed for
demanding professional applications. Equipped with a 3-Chip DLP™ system,
this projector delivers exceptional color accuracy, brightness, and
reliability. The SOLID SHINE Laser technology ensures consistent performance
over extended periods, making it a reliable choice for large venues, events,
and installations.
With a brightness of 12,000 lumens, the PT-RZ12KU
excels in producing bright and vibrant images, even in well-lit
environments. Its high resolution and dynamic contrast ratio contribute to
sharp and detailed visuals, enhancing the overall viewing experience. The
projector's robust construction and efficient cooling system contribute to
its durability and suitability for long-term use in challenging conditions.
Featuring a range of advanced features and connectivity options, the
PT-RZ12KU provides flexibility and ease of use for various professional
settings. Whether used in auditoriums, lecture halls, or other large venues,
this projector is designed to meet the demands of high-performance
applications, ensuring a captivating visual experience for audiences.
| General Specifications |
| Power Supply |
100–240 V AC, 50/60 Hz |
| Power Consumption |
1,200 W (1,280 VA) (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal);
Average power consumption: 800 W (Normal Mode), 680 W (Eco Mode), 620 W (Long Life 1 Mode), 590 W (Long Life 2 Mode), 550 W (Long Life 3 Mode) |
| DLP Chip | Panel Size |
24.4 mm (0.96˝) diagonal (16:10 aspect ratio) |
| DLP Chip | Display Method |
DLP chip x 3, DLP projection system |
| DLP chip | Number of Pixels |
2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels |
| Refresh rate |
120 Hz |
| Lens |
Optional powered zoom and fixed-focus lenses |
| Light Source |
Laser diode (Class 1), Light source life:
20,000 hours (Normal Mode) / 24,000 hours (Eco Mode) |
| Screen size [diagonal] |
1.78–25.4 m (70–1,000˝), 1.78–15.24 m (70–600˝)
with the ET-D75LE8, 3.05-15.24 m (120–600˝)
with the ET-D75LE90, 16:10 aspect ratio |
| Brightness |
12,000 lm |
| Contrast |
20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution |
1920 x 1200 pixels |
| Supported RGB signal |
XGA–WUXGA |
| Supported video signal |
NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i |
Optical axis shift
(from center of screen)| Vertical |
±55 % (±44 % with the ET-D75LE6, +73 – +78 % with the ET-D75LE90) (powered) |
Optical axis shift
(from center of screen)| Horizontal |
±20 % (±15 % with the ET-D75LE6, ±6 % with the ET-D75LE90) (powered) |
| Keystone Correction Range |
Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90) |
Keystone Correction Range with optional
ET-UK20 Upgrade Kit |
Vertical: ±45° (±40° with ET-D75LE10/ET-D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE50/ET-D75LE6, 0° with ET-D75LE90) |
| Installation |
Ceiling/floor, front /rear, free 360-degree installation |
| Cabinet Materials |
Molded plastic |
| Dimensions (W x H x D) |
578 x 270 x 725 mm (22 3/4˝ x 10 5/8˝ x 28 17/32˝) (optional lens, legs and lens cover not included), 578 x 323.5 x 740 mm (22 3/4˝ x 12 23/32˝ x 29 1/8˝)
(Including legs at the shortest position and protruding parts) |
| Weight |
Approx. 44.0 kg (97 lbs) (optional lens not included) |
| Operation noise |
43 dB |
| Operating Environment |
Operating temperature: 0–50 °C (32–122 °F)11, operating humidity: 10-–80 % (no condensation) |
| Applicable Software |
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit) |
|
