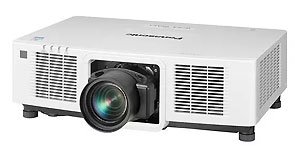

Panasonic PT-MZ16K 3LCD SOLID SHINE Laser Projector

Panasonic PT-MZ16K 3LCD SOLID SHINE Laser Projector

Pure Color, High Brightness, and Long-Life Operation

At up to 16,000 lm*1, color erupts in WUXGA. Radiant pictures are achieved with new 15.4 mm (1˝) LCD panels, Multi-Laser Drive Engine, 4K/60p signal input*2, and refined cooling system.

Unbeatable Reliability in the Real-World Conditions

To quickly fix problems while maintaining image display, the projectors feature Panasonic’s new Multi-Laser Drive Engine with failover circuity, a secondary backup signal input, and Information Monitor to show error information.

Compact, Flexible, and Ready for a Stress-free Install

Easy-to-handle compact body weighs under 22.3 kg*3 (49.2 lbs.), runs at just 32 dB*4, and suits seven optional zoom lenses for flexible installation. Setup is expedited with Geo Pro software*5.

1. Brightness for PT-MZ16KL only. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

2. 4K signal input is converted to the projector's resolution (1920 x 1200). Applicable terminals: DIGITAL LINK terminal/HDMI terminal.

3. With standard ET-EMS600 lens included.

4. Quiet Mode for PT-MZ16KL.

5. For more information about activation of optional upgrade kits, please visit PASS for more information.

Projector type	LCD projectors
LCD panel
Panel size	25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
Display method	Transparent LCD panel (x 3, R/G/B)
Drive method	Active matrix method
Pixels	2,304,000 (1920 x 1200) pixels x 3
Light source	Laser diodes
Light output	16,000 lm
Time until light output declines to 50 %	20,000 hours (NORMAL)
Resolution	1920 x 1200 pixels
Contrast ratio	3,000,000:1 (Full On/Full Off)
	With [Dynamic Contrast] set to [3].
Screen size (diagonal)	2.03–12.7 m (80–500 in), 2.54–10.16 m (100–400 in) with ET-EMU100, 16:10 aspect ratio
Center-to-corner zone ratio	85%
Lens	Optional powered zoom lenses
Lens shift
Vertical (from center of screen)	±60 % (±40 % with ET-EMW200, ±50 % with ET-EMW300, +50 %, -20 % with ET-EMU100) (powered)
Horizontal (from center of screen)	±20 % (±19 % with ET-EMW200) (powered)
Keystone correction range	Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500, ±5° with ET-EMU100), Horizontal: ±15° (±8° with ET-EMW200/ET-EMW300, ±0° with ET-EMU100)
Keystone correction range with optional ET-UK20 Upgrade Kit	Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500, ±5° with ET-EMU100), Horizontal: ±40° (±8° with ET-EMW200/ET-EMW300, ±15° with ET-EMW400/ET-EMW500, ±0° with ET-EMU100)
	When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals
SDI IN	BNC x 1: 3G/HD-SDI input
HDMI IN	HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p*3 signal input)
DVI-D IN	DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
RGB IN	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
SERIAL/MULTI PROJECTOR SYNC IN	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL/MULTI PROJECTOR SYNC OUT	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN	D-sub 9-pin (female) × 1 for external control (parallel)
REMOTE 2 IN	M3 x 1 for wired remote control
REMOTE 2 OUT	M3 x 1 for link control (for wired remote control)
DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.2, Deep Color, 4K/60p signal input*3)
LAN	RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
DC OUT	USB Connector (Type A) x 1 (Output 5 V/2 A)
Power supply	AC 100–240 V, 50/60 Hz
Power consumption	1,050 W
Cabinet materials	Molded plastic
Filter	Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise	38 dB (NORMAL) / 32 dB (Quiet)
Dimensions (W x H x D)	650 x 211*4 x 440 mm (25 19/32˝ x 8 5/16˝*4 x 17 21/64˝ ) (Without lens)
Weight	Approx. 22.3 kg (49.2 lbs)
Operating environment	Operating temperature: 0–45 °C (32–113 °F)*6; Operating humidity: 10–80 % (no condensation)
Applicable software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™
