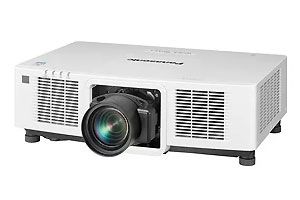

Panasonic PT-MZ13K 13000 lumens LCD Solid Shine laser projector

Panasonic PT-MZ13K 3LCD SOLID SHINE Laser Projector

At Brightest 3LCD SOLID SHINETM Laser Projector able to accept 4K/60p input signal

Using Panasonic’s 3LCD SOLID SHINETM technology, the MZ16 range delivers long-lasting brightness. The conventional mercury-based lamp and colour wheel are replaced by LCD and laser diodes to create the images. Separate colours are combined in the viewer’s mind to create a full image. These projectors can accept 4K/60p input from DIGITAL LINK and HDMI which is converted to 1920 x 1200 resolution for a long-lasting, clear viewing experience.

Quietest projector in its category

The MZ16 is the world’s first laser LCD projector to benefit from Panasonic’s unique liquid cooling technology, which makes it the quietest and most powerful Panasonic projector of its type on the market. It generates only 38dB of noise during normal operation, making it ideal for lecture theatres and seminar rooms which require less noise distraction from AV equipment

Compatible with Panasonic Geo Manager Pro software

The MZ16 projector range is compatible with Panasonic’s free Geometry Manager Pro software, which massively cuts set up time for projectors and significantly reduces installation work. You can also export and import the settings of adjustment data between units, significantly reducing set up time in situations where multiple projectors are being used. Optional upgrade kits can be purchased to enable geometric adjustment for 3D mapping (ET-CUK20) and for auto-screen adjustment (ET-UK10), enabling you to set up multiple projectors simultaneously, to save time and expense.

Redundant laser engine and signal input for improved reliability

The projector’s triple drive engine enables continuous operation. If a laser bank fails unexpectedly, the MZ16 will continue projecting with two-thirds brightness. You can also switch from main input to secondary signal input in the case of a cable emergency. If a signal input fails, the projector will automatically switch to any selected input sources (HDMI, DVI-D, SDI, RGB or DIGITAL LINK) to enable projection to continue uninterrupted.

Feature	Specification
Projector type	LCD projectors
Light Source	Laser diodes
Light output	13,000 lm
Time until light output declines to 50 %	20,000 hours (NORMAL)
Resolution	1920 x 1200 pixels
Contrast Ratio	3,000,000:1 (Full On/Full Off) * With [Dynamic Contrast] set to [3]
Screen size [diagonal]	2.03–12.7 m (80–500 in), 16:10 aspect ratio
Center-to-corner zone ratio	85 %
Lens	Optional powered zoom lenses
Lens shift | Vertical (from center of screen)	±60 % (±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)
Lens shift | Horizontal (from center of the screen)	±20 % (±19 % with ET-EMW200) (powered)
Keystone Correction Range	Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500), Horizontal: ±15° (±8° with ET-EMW200/ET-EMW300)
Keystone correction range with optional ET-UK20 Upgrade Kit	Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500), Horizontal: ±40° (±8° with ET-EMW200/ET-EMW300, ±15° with ET-EMW400/ET-EMW500)When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals | SDI In	BNC x 1: 3G/HD-SDI input
Terminals | HDMI In	HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*3)
Terminals | DVI-D In	DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
Terminal | RGB In	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | Serial/Multi Projector Sync In	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | Serial/Multi Projector Sync Out	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals | REMOTE 1 IN	D-sub 9-pin (female) × 1 for external control (parallel)
Terminals | Remote 2 In	M3 x 1 for wired remote control
Terminals | Remote 2 Out	M3 x 1 for link control (for wired remote control)
Terminals | LAN	RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink [Class 2], Art-Net)
Terminals | DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], Art-Net, HDCP 2.2, Deep Color, 4K/60p signal input)
Terminals | DC Out	USB Connector (Type A) x 1 (Output 5 V/2 A)
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	800 W
Cabinet Materials	Molded plastic
Filter	Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise	35 dB (NORMAL) / 30 dB (Quiet)
Dimensions (W x H x D)	650 x 211*4 x 440 mm (25 19/32˝ x 8 5/16˝*4 x 17 21/64˝ ) (Without lens)
Weight	Approx. 22.3 kg (49.2 lbs)
Operating Environment	Operating temperature: 0–45 °C (32–113 °F); Operating humidity: 10–80 % (no condensation)
Applicable Software	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™
Note	1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is the average of all products when shipped. 2 Around this time, the light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcastcontents, NORMAL Mode, Dynamic Contrast [2], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3of particulate matter. The estimated time until light output declines to 50 % varies depending on the environment. 3 4K signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI. 4. With legs at the shortest position. 5 Average value. It May differ depending on the actual unit. 6 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 35 °C (95 °F) or higher, the light output may be reduced to protect the projector.
Light output	13,000 lm
LCD Panel | Panel Size	25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
LCD Panel | Number of pixels	2,304,000 ( Pixels 1920 x 1200) pixels x 3
