DPA LMK-SC4060 Microphone

DPA LMK-SC4060

Lavalier Microphone Kit

Home > DPA Pro Audio > d:screet Miniature > LMK-SC4060

 DPA LMK-SC4060 Lavalier Microphone Kit with 4060

DPA LMK-SC4060



  LMK4060-W   Lavalier Microphone Kit, White Buy Sell Sales DPA LMK4060-W
  LMK4060-B   Lavalier Microphone Kit, Black Buy Sell Sales DPA LMK4060-B

The LMK-SC4060 Lavalier Microphone Kit is perfect for broadcasters, TV studios, news anchors and other public speakers.

Offering great detail and resolution, the d:screet SC4060 Omni Mic is very natural sounding. The SC4060 has a very low noise floor, impressive sensitivity and can handle high SPLs.

Minimum visibility
A robust and unobtrusive solution, the tiny d:screet™ SC4060 Omnidirectional Miniature Microphone is placed in the smallest holder on the market where it is protected from rough handling. More about the minature mic holder from DPA.

The kit is available in black and white.

Microphone placement
The miniature condenser mic is omnidirectional and picks up the sound perfectly, no matter which direction the microphone is placed in.

The holder is designed to minimize clothing noise, and is prepared for both left and right mounting on lapels, shirts, and neckties.

Two different protection grids are included in the kit. By changing these grids you can acoustically modify the microphone's response according to placement.

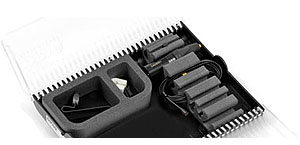

• SC4060 omnidirectional microphone with 3 meter cable
• DAD6001-BC adapter, MicroDot to 3-pin XLR (P48) with belt clip
• DMM0017 Miniature mic holder
• DUA6001 Grid, soft boost
• DUA6002 Grid, high boost

The LMK-SC4061 kit is still available with the original d:screet™ 4061 Omnidirectional Miniature Microphones without the reinforced cable relief upon request.
 Directional characteristics:  Omnidirectional
 Principle of operation:  Pressure
 Cartridge type:  Pre-polarized condenser element with vertical diaphragm
 Frequency range, ± 2 dB:  Soft boost grid: 20 Hz - 20 kHz ±2 dB, 3 dB soft boost at 8 - 20 kHz, High boost grid: 20 Hz - 20 kHz ±2 dB, 10 dB boost at 12 kHz
 Sensitivity, nominal, ±3 dB:  20 mV/Pa; -34 dB re. 1 V/Pa
 Equivalent noise level A-weighted:  Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
 Equiv. noise level ITU-R BS.468-4:  Typ. 35 dB (max. 38 dB)
 S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL):  71 dB(A)
 Total harmonic distortion (THD):  <1% THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sine
 Dynamic range:  Typ. 100 dB
 Max. SPL, peak before clipping:  134 dB
 Output impedance:  30-40 Ohm
 Cable drive capability:  Up to 300 m (984 ft)
 Power supply:  For wireless systems: Min. 5 V – max. 50 V through DPA adapter; with DAD6001: 48 V phantom power ±4 V.
 Connector:  MicroDot
 Microphone Weight:  <7.5 g (0.26 oz) incl. cable and MicroDot connector
 Microphone diameter:  5.4 mm (0.21 in)
 Microphone length:  12.7 mm (0.5 in)
 Cable length:  1.8 m (6 ft)
 Polarity:  Positively increasing sound pressure produces positive going voltage on MicroDot pin
