JVC DT-V9L5U Studio Monitor

JVC DT-V9L5U

Professional 8.2" Broadcast Studio Monitor

Home < Main < LCD Monitor < DT-V9L5U

JVC DT-V9L5U Studio MonitorJVC DT-V9L5U Studio Monitor

 JVC DT-V9L5U 8.2" Broadcast Studio Monitor

The DT-V9L5U is an affordable high quality broadcast monitor designed for demanding field and studio applications.


JVC DT-V9L5U Studio Monitor
Product Code:DTV9L5U
JVC DT-V9L5U Studio Monitor

- 8.2-inch IPS LED LCD panel with 1280 x 800 pixel array
- Mercury-free LED backlight
- Wide 178 x 178 viewing angle
- HD-SDI, HDMI, Analog Component, Composite video inputs
- 16 Ch Audio Level Display
- Area/Center/Aspect marker
- MAKE/TRIGGER, RS-232C and RS-485 remote
- Tally lamp with separate/alternate mode
- LTC, VITC, and D-VITC time code support
- AC/DC 12V power operation
- IMD (In Monitor Display) function based on TSL?s UMD protocol ver. 4.0
- Vectorscope, waveform, histogram, and marker functions
- Built-in mono speaker
- Front panel headphone jack
- Durable metal cabinet
- Desktop stand with tilt function



 General
 Model name  DT-V9L5
 Type Multi format  LCD monitor
 Screen size Type  8.2 wide format
 Aspect ratio  16:10
 Compliant video signal format  See below
 Format  HD SDI: SMPTE292M
 SD SDI: ITU-R BT.656, SMPTE259M
 EMBEDDED AUDIO 16CH: SMPTE299M, SMPTE272M
 Audio output  Internal speaker: 1.0 W
 Operating conditions  Operating temperature: 5C 35C (41F 95F)
 Operating humidity: 20% 80% (non-condensing)
 (Slightly variable depending on ambient conditions for installation.)
 Power requirements  AC 120 V / AC 220 V 240 V, 50 Hz/60 Hz or DC 12 V 17 V
 Rated current  0.5 A (AC 120 V)
 0.25 A (AC 220 V 240 V)
 1.3 A (DC 12 V - 17 V)
 External dimensions

 (excluding protruding parts)

 w/ stand w/o the stand

 Width: 217 mm (8 5/8˝) Width: 217 mm (8 5/8˝)
 Height: 218 mm (8 5/8˝) Height: 176 mm (7˝)
 Depth: 185 mm (7 3/8˝) Depth: 116 mm (4 5/8˝)
 Weight  3.2 kg (7.0 lbs) (with the stand)
 2.3 kg (5.1 lbs) (without the stand)
 Accessories  AC power cord x 1, Power cord holder x 1, Screw x 2 (for power cord holder), Protective filter x 1,

 Screw (for protective filter) x 4

 LCD Panel
 Type  8.2˝ wide, active matrix TFT
 Effective screen size  Width: 176.4 mm (7˝)
 Height: 110.4 mm (4 3/8˝)
 Diagonal: 208.3 mm (8 1/4˝)
 Number of pixels displayed  1280 x 800
 Number of colors displayed  16.70 million
 Viewing angle (TYP.)  80 (Horizontally), 80 (Vertically)
 Brightness (TYP.)  360 cd/m 2
 Contrast ratio (TYP.)  800:1
 Input/Output Terminals
 VIDEO  Input/output of composite signal: 1 line, BNC connector x 2, 1 V (p-p), 75 Ω
 * The input (IN) and output (OUT) terminals are bridge-connected (auto termination).
 HDMI  HDMI signal input (compatible with HDCP): HDMI connector x 1
 COMPO.
 (Y, Pb/B-Y, Pr/R-Y)
 Analog Component signal input: 1 Line, BNC connector x3
 Y: 1 V(p-p), 75 Ω(with sync)
 PB/B-Y, PR/R-Y: 0.7 V (p-p), 75 Ω
 E. AUDIO HD/SD SDI (IN 1)
 E. AUDIO HD/SD SDI (IN 2)
 Digital signal input (compatible with EMBEDDED AUDIO signals):
 auto detection, 2 line, BNC connector x 2
 E. AUDIO HD/SD SDI
 (SWITCHED OUT)
 Digital signal output (compatible with EMBEDDED AUDIO signals):
 1 line switched out, BNC connector x 1
 AUDIO (IN)  Analog audio signal input: 1 line, RCA connector x 1, 500 mV (rms), high impedance
 AUDIO (MONITOR OUT)  Analog audio signal output: 2 line, RCA connector x 2, 500 mV (rms)
 REMOTE (MAKE/TRIGGER)  RJ-45, Make contact or momentary pulse to corresponding terminal
 REMOTE (RS-232C)  D-SUB9, Serial communication

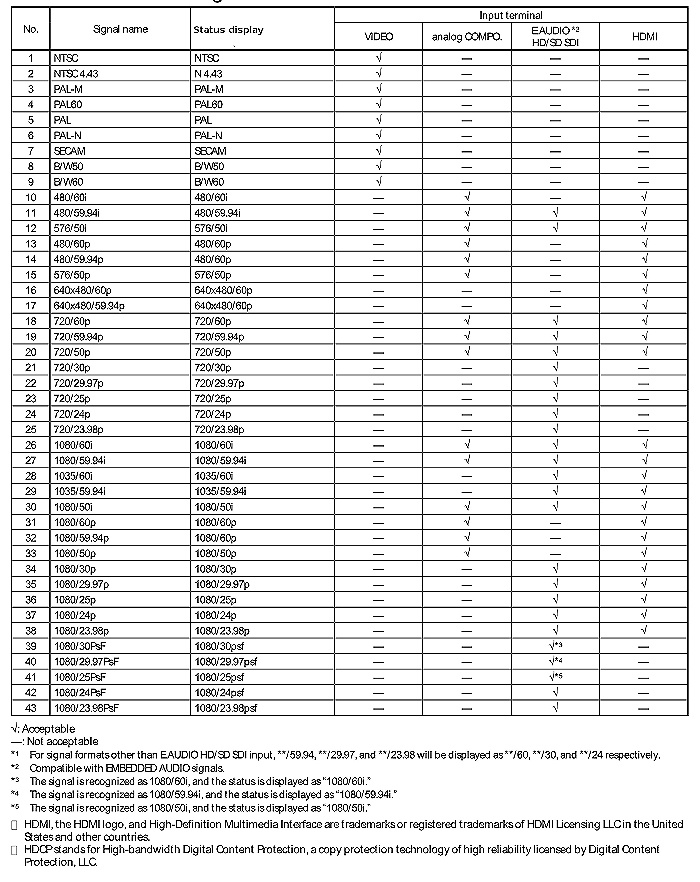

 DT-V9L5 Available Signals

JVC DT-V9L5U Studio Monitor

  DT-X91C DT-X91H DT-X91F DT-F9L5U DT-V9L5U
 Screen size 8.9-inch 8.9-inch 8.9-inch 8.2-inch 8.2-inch
 Backlight CCFL CCFL CCFL LED LED
 Resolution 1280x800 1280x800 1280x800 1280x800 1280x800
 Power input XLR-4P XLR-4P XLR-4P XLR-4P XLR-4P
 AC Adapter Included Included Included Optional ADPV16 Included
 Optional Battery IDX SSL-JVC50 IDX SSL-JVC50 IDX SSL-JVC50 AB-DIONIC
 HDMI Input 1 (w/loop thru) 1 (w/loop thru) 1 (w/loop thru) 1 1
 Composite Video BNC (w/loop thru) BNC (w/loop thru) BNC (no loop thru) BNC (w/loop thru) BNC (w/loop thru)
 Component Video (Y,Pb,Pr) Yes Yes
 Analog Audio Input RCA (L/R) RCA (L/R) RCA (x2) RCA (x2)
 Headphone jack Yes Yes Yes Yes Yes
 Audio speaker Yes
 HD-SDI Input (3G/HD/SD) 2 (3G) 2 (3G w/loop thru) 2 2
 HD-SDI Output 1 (loop thru) 1 1 (switched out) 1 (switched out)
 HDMI → HDSDI Conversion Yes
 Dual tally lamp  Yes (3 color) Yes (3 color) Yes (3 color) Yes Yes
 Underscan/overscan Yes Yes Yes Yes Yes
 DSLR Scale zoom-in Yes Yes Yes
 Picture flip Yes Yes Yes
 Video title (customer editable) Yes Yes Yes
 Waveform monitor Yes Yes Yes
 Vectorscope Yes Yes Yes
 RGB Histogram Yes
 Peaking focus assist Yes Yes
 False color / blue only/ zebra Yes Yes
 Audio meter SDI 16-ch HDMI 2-ch SDI 16-ch SDI 16-ch
 SDI time code display Yes Yes Yes
 Definable function keys 2 3 3 0 0
 Remote control MAKE trigger
RS-232C
MAKE trigger
RS-232C
 Included accessories 1/4-20 swivel mount, hood 1/4-20 swivel mount, hood 1/4-20 swivel mount, hood AB Gold Mount Tripod hardware AC Adapter
