 JVC DT-X21H ProHD 21.5-Inch 3GSDI & HDMI LCD Monitor

JVC DT-X21H LCD Monitor
Product Code:DTX21H
Buy sell sale JVC DT-X21H LCD Monitor

The ProHD DT-X21H is a 21.5-inch 3G/HD/SD-SDI & HDMI studio LCD monitor, with a full HD resolution 1920 x 1080 panel. It integrates a wide range of professional functions including peaking focus assist, blue only, zebra, rotate and flip, 2-ch embedded audio meter display, and SDI time code display. The DT-X21H accepts two 3G/HD/SD-SDI, one HDMI and one composite video, and has a 3G/HD/SD-SDI loop through output and an HDMI loop through output.

The monitor is powered via a 4-pin XLR 11-17V DC connector or Gold-mount battery.


- Full HD 1920×1080, H178°/V178° viewing angle
- 1000:1 Contrast
- 3G/HD/SD-SDI, HDMI, CVBS multi formats input and loop output
- 2-ch SDI embedded audio meter / HDMI audio meter display
- Focus assist / SDI Timecode / Blue only / Zebra

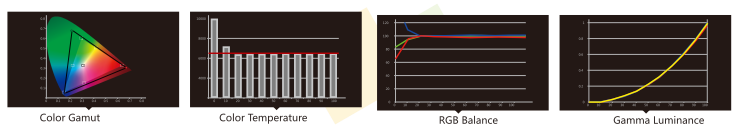

Color Reproduction
The DT-X21H utilizes a high quality LCD panel and offers accurate color reproduction. The color calibration has been optimized in firmware, and users can adjust color temperature by RGB Gain and Bias.
JVC DT-X21H LCD Monitor

LCD Performance
Size 21.5 inches
Display area 477×268mm
Resolution 1920×1080
Aspect ratio 16:9 (4:3 adjustable)
Brightness 250cd/m2
Contrast 1000:1
Color 16.77 million colors
Viewing angle Horizontal: 178°Vertical: 178°
Input and Output
Input BNC ×2 3G/HD/SD-SDI input
BNC ×1 Composite input
HDMI ×1 HDMI input
3.5mm ×1 Analog audio input
Output BNC ×1 3G/HD/SD-SDI loop output
HDMI ×1 HDMI loop output
3.5mm ×1 SDI, HDMI,Analog audio output
Video Format
SDI SMPTE-425M 1080p (60 / 59.94 / 50)
SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M 720p (60 / 59.94 / 50)
SMPTE-125M 480i (59.94)
ITU-R BT.656 576i (50)
HDMI 480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
CVBS NTSC PAL
General
Working voltage DC / battery 11V-17V
Power consumption 40W
Working temperature 0°C~+40°C
Working humidity 10%~90%
Storage temperature -15°C~+60°C
Dimensions 525×381×47mm
Storage humidity 10%~90%
Net weight (main body) 6.69kg
