The GM-552D is a high contrast full HD professional HD monitor designed for 24/7 continuous operation. Ideal for signage, security, and broadcast television, it features a wide range of connections including HD-SDI/SD-SDI, HDMI, Analog and RGB.



JVC GM-552DU Monitor
Product Code: GM-552DU
JVC GM-552DU Monitor




Professional Industrial Grade 16:9 High Definition LCD/LED Monitor
The GM-552D is a 55-inch class (54.6-in) Full HD (1920x1080 resolution) 16:9 monitor. Its ultra-high contrast display, durable design and excellent connectivity make it ideal for signage, information display, security and broadcast applications. Image settings useful for security applications are also included. The display may be be used in landscape or portrait modes, and the logo is removable. A 3G/HD/SD-SDI interface is provided, making it suitable for use in broadcasting facilities and studios*. Color temperature, brightness/contrast and backlight can all be individually adjusted. Common pre-sets are already integrated.
* Due to the panel size, we cannot recommend the use of this product in OB vans or other high vibration installations.


Created for 24/7 Continuous Operation
The GM-552D is designed for 24 hours a day, 7 days a week constant use for a variety of applications. It includes customer selectable screen saving modes and LED backlighting which save power, increase image performance, and add to a long screen lifetime of more than 50,000 hours.


Wide Connectability
The GM-552D features a range of professional connections, including HD-SDI/SD-SDI and 3G-SDI interfaces, with loop out, HDMI™, DVI, RGB (with loop out), S-Video (with loop out), and composite video.


Other Features
- FHD non-glare panel
- LED backlighting (mercury-free)
- Multi language OSD: English/German/French/Italian/Spanish
- Multi Display: 2x1/2x2/3x3/4x4/5x5
- Picture modes: STUDIO, CCTV1, CCTV2, USER
- Useful picture functions: PIP/PBP/Portrait mode/Screen saver/ Image refresh
- ID setting for RCU: 01-99 allows use of a single IR remote for control of a group of displays, such as in video wall applications.
- RS232C input/output terminals for creating a daisy chain
- All-Metal Cabinet and Durable Design
- Supplied with removable VWSA stand and handles
- Input terminals arranged in a single row for easy connection
- DC output terminal (+12V/Max. 350mA)





Display
 Type  LCD DISPLAY MONITOR
 Screen size  54.6 (lnch)
 LCD panel  TFT active matrix
 Back lighting  LED
 Effective screen size  1209.6mm(H) x 680.4mm(V)
 Resolution  1920 x 10S0
 Pixel pitch  0.21mm(H) x 0.63mm(W)
 Panel brightness (TYP)  450 cd/m2
 Contrast ratio [TYP)  4000:1
 Aspect ratio  16:9
 Viewing angle (TYP)  178 (Horizontally), 178 (Vertically)
 Display color  1073.7 million
 Response lime (G to G)  6.5 msec
 General
 Weight  31.4kg/ 32.3kg (including pair 0f the stands)
 Extemal dimensions  1272.6mm(W)x 745.5mm(H) x 360.0mm(D) (with stand unit)
 Power requirements  AC 100V-240V, 50Hz-60Hz
 Rated input current  1.5A
 DC output  DC+12V output Max.350 mA
 Audio output  Intenal speaker:1.5W+l.5W

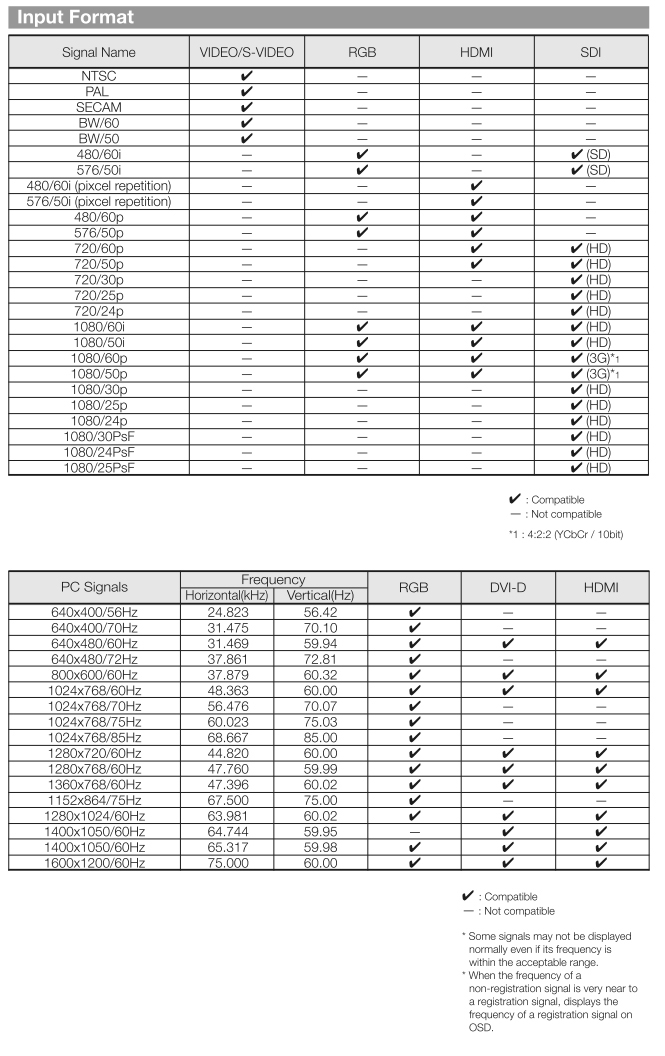

 Input terminals
 VIDEO IN  BNC x1
 S-VIDEO INPUT  Mini DIN4-pin x1
 RGB (Analog) IN  D-Sub 15-pin x1
 DVI INPUT  DVI-D (single link) x1
 HDMI INPUT  HDMI type-A (Screw hole/ Gefen)
 Audio IN (CVBS/S-VIDEO)  RCA x2 (L/R)
 Audio IN (HDMI,DVI-D,VGA)  Stereo mini jack xl
 RS-232C IN  D-Sub 9-pin x1
 HD-SDI (3G) IN  BNC x1 (3G) SMPD
 Output terminals
 VIDEO OUT  BNC x1 (passive loop through)
 RGB (Analog) OUT  D-Sub 15-pin x1
 Audio OUT (MONITOR OUT)  RCA x2 (L/R)
 RS-232C OUT  D-Sub 9-pin x1
 HD-SDI (3G) OUT  BNC x1 (3G)
 Provided accessories  Remote control (RM-C3700) x1
 Batteries (AAA) x2
 Power cord 1.S m x2 (Europe model)
 1.8m x1 (US model)
 Power cord clamp x 1
 Stand unit x2 (1 pair)
