BBS Lighting Pipeline 2` 2 Bank Phosphor LED

7% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall / Seletar Airport Passenger Terminal / Marina Bay Cruise Centre Singapore/ International Passenger Terminal at Harbourfront Centre GST Refund Centre before departure with goods within 30 Days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme's conditions and eligibility criteria can claim for the GST refund. Please visit: https://www.iras.gov.sg/IRASHome/GST/Consumers/Tourist-Refund-Scheme/ for GST Guide for Visitors on Tourist Refund Scheme.

BBS Lighting Pipeline 2` 2 Bank Remote Phosphor LED Lights Compact and Lightweight

BBS Lighting Pipeline 2` 2 Bank Phosphor LED

Product Code: PIPELINE 2` 2 BANK

3200K
4300K
5600K

Overview
Features

BB&S’ new Pipeline 2’ 2-Banks remote phosphor LED lights are so compact and lightweight with such powerful and controllable output that they are being grabbed up for use by broadcast studios, remote production, and cine work alike—since deliveries began this season.

Small broadcast studio space saver
When studio space is small, with low ceilings that often don’t come with a large power drop, there’s a lighting challenge. They require small form-factor lights that provide high light output, low power draw, with high TLCI 98 accurate color quality.

BB&S rides to the rescue with the Pipeline 2' 2-Bank remote phosphor fixtures, available in 3200°K, 4300°K and 5600°K versions.

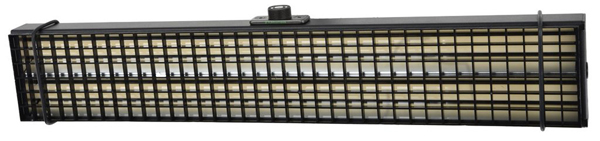

The compactly-designed 2’ 2-Bank fixture weighs 3 pounds and is 24”L x 4” high x 1.5” deep. It comes with a removable honeycomb grid and Diffuser. In studio it can be mounted flush against a wall or ceiling, or hung with multiple optional hardware accessories. In the field it travels lightly as a single unit, in a small case.

Better Color over time
Where traditional LED fixtures may offer a partial solution for the studio, they are limited in providing highly accurate color rendering. And while their phosphor layer is applied directly onto the heat generating LEDs (that degrade over time), BB&S uses remote phosphor technology, which separates the LEDs from the color generating phosphor coating, enabling more vivid color generation, TLCI as high as 98, and less color degradation over the long term.

2’ 2-Banks Rugged, High TLCI and Infinitely Dimmable
BB&S’ Pipeline fixtures, are ruggedly made in a 1-inch cylindrical form that emits light around 180 degrees. They provide upwards of 98 TLCI color accuracy, and are infinitely dimmable with no color shift or flicker. With an aluminum back channel, Pipeline fixtures are practically indestructible. Plus they are smoothly dimmable throughout the range.

Low Power Draw, High Light Output
Each 2’ 2-Bank fixture draws a paltry 40W at the 100% end of its dimming range, outputting a maximum of 4000 lumens. This allows up to a dozen of the 2-Banks to be plugged into the same 15W wall outlet. For field production assignments, commonly available professional 14.4V camera battery packs can also be utilized, with the optional driver dimmer pack, to eliminate the need for AC power outlets.

Control Options
The 2’ 2-Banks are part of BB&S’ Raw series of lights, which means they do not come with their own driver dimmers. A short cable with a 3-pin XLR connector on the 2’ 2-Bank allows a single optional controller or BB&S’ convenient 48V 4-way Controller with DMX to control up to four of the banks. This 48V solution provides smooth dimming all the way to zero. And there is no flicker at any framerate. Optional extension cables 8’, 16’ and 24’ can be used, with no power loss.

(Alternatively, users can supply their own LED driver/dimmers with optional DMX packages.)

From Small Broadcast Studios to Run and Gun
With its small footprint, low power draw, high light output at 98 TLCI or better, and full dimming, the BB&S 2’ 2-Bank remote phosphor lighting instruments are made to order for small studios and remote broadcast and ENG.

Optional Accessories
