4016 Wide Cardioid
Microphone, 130 V
|
| |
Product
Code:4016
|
Model:4016
Other Microphones - Wide
Cardioid

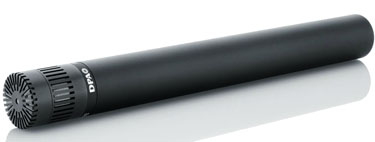

The 4015-TL wide cardioid
microphone is an upgraded version of the original DPA 4015. The
wide cardioid polar pattern (also known as hemisphere) is the
perfect fill-in between an omni and a more directional
microphone.
|
|
| |
|
|
| |
|
| |
|
4016 Wide Cardioid
Microphone, 130 V
-
clear and detailed
sound
-
excellent for grand
piano, guitar, marimba, percussion set-ups or as spot mic in a
symphony orchestra
-
handles extreme sound
pressure levels
The 4016 wide cardioid
microphone is the high voltage (130 V) counterpart to the 4015-TL.
The two microphones are acoustically identical, but differ in their
sound level handling. Due to the higher voltage supplied for the
preamplifier via the DPA HMA5000, the 4016 can handle 168 dB SPL
peak before clipping occurs!
It is designed with a linear on-axis frequency response from 40 Hz
(±2 dB) to 20 kHz (+3/-2 dB) at 60 cm, with a soft high
frequency lift from 10 to 15 kHz of max. 3 dB.
The off-axis characteristics of the 4016 wide cardioid microphone
are totally linear, a unique quality when it comes to authentic
sound reproduction. Any leakage that occurs from off-axis sound
sources is still a faithful reproduction of these sounds, just
softly attenuated.
Accessories: The 4016 comes with windscreen and holder.
|
|
General
Specifications |
| Directional
characteristics: |
Wide Cardioid |
| Principle of
operation: |
Pressure
gradient |
| Cartridge type: |
19 mm (0.75 in) pre-polarized
condenser |
| Frequency
range,
± 2 dB: |
On-axis: 40 Hz to 20 kHz +3/-2
dB in 60 cm distance with a max. 3 dB soft boost at 10 – 15
kHz |
| Sensitivity, nominal, ±2
dB: |
12 mV/Pa; -38 dB re 1 V/Pa |
| Equivalent
noise level A-weighted: |
Typ. 19 dB(A) re. 20 µPa
(max. 20 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 25 dB (correct with the attenuator in 0 dB
or -20 dB setting) |
| Connector: |
4-pin modified XLR-M (High
Voltage) |
| Total harmonic distortion
(THD): |
<0.5% up to 110 dB SPL peak, <1% up to 116
dB SPL peak |
| Dynamic
range: |
Typ. 97 dB |
| Output impedance: |
Matches HMA5000 input |
| Max. SPL,
peak before clipping: |
With HMA5000: 168 dB SPL peak;
with PCC4000: 155 dB peak |
| Cable drive
capability: |
From microphone to HMA5000: Up to 20 m (66 ft).
From HMA5000: Up to 300 m (984 ft) |
| Weight: |
165 g (5.8
oz) |
| Microphone Length: |
175 mm (6.9 in) |
| Capsule
diameter: |
19 mm (0.75) |
| Power supply: |
130 V via HMA5000 |
| Operating temperature
range: |
-40 to +55° C (-40 to
131° F) |
|
| |
|
|
|
|
|
