4011-TL
Cardioid Microphone P48
|
| |
Product
Code:4011TL
|
Model:4011-TL
Other Microphones -
Cardioid

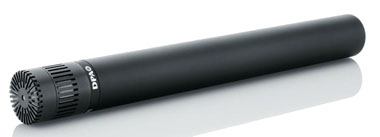

The 4011-TL cardioid
microphone is an upgraded version of the classic DPA 4011 renowned
in recording studios all over the world as an exceptional
mic.
|
|
| |
|
|
| |
|
| |
|
4011-TL Cardioid Microphone
P48
The 4011-TL cardioid
microphone is an upgraded version of the classic DPA 4011 renowned
in recording studios all over the world as an exceptional mic.
State-of-the-art components have been carefully selected to provide
optimal neutrality, accuracy and extremely low distortion. The
first order cardioid pick-up pattern gives superb separation
between sound sources while spot-miking on every kind of live
music.
The mic is equally suitable for close-up work on acoustic guitar,
grand piano, overheads, percussion, wind instruments and vocals. It
can handle incredibly high sound levels and even includes a 20 dB
pad switch to attenuate the output of the microphone.
A flat on axis frequency response and excellent phase response
deliver a totally faithful reproduction of the original sound. The
off-axis response is similarly smooth so that any leakage is an
accurate reflection of the original, though attenuated according to
the true first-order cardioid pick-up.
The feeling of being there will always be more intense with the
4011-TL than with any other cardioid.
Holder and windscreen are included.
|
|
General
Specifications |
| Directional
characteristics: |
Cardioid |
| Principle of
operation: |
Pressure
gradient |
| Cartridge type: |
19 mm (0.75 in) pre-polarised
condenser |
| Frequency
range,
± 2 dB: |
40 Hz – 20
kHz |
| Sensitivity, nominal, ±2
dB: |
10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent noise level
A-weighted: |
Typ. 19 dB(A) re. 20 µPa
(max. 20 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 25 dB (correct with the attenuator in 0 dB
or -20 dB setting) |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
75 dB(A) |
| Total harmonic distortion
(THD): |
< 0.5% up to 110 dB SPL peak, <1% up to
116 dB SPL peak |
| Dynamic
range: |
Typ. 97 dB |
| Attenuators, filters etc.: |
0 dB, -20 dB |
| Output balance
principle: |
Active Signal
balanced |
| Max. SPL, peak before
clipping: |
158 dB |
| Output
impedance: |
< 200 ohm |
| Cable drive
capability: |
Up to 100 m (328 ft) |
| Power
supply: |
48 V Phantom
power |
| Connector: |
3-pin XLR-M (Standard P48) |
| Weight: |
165 g (5.82
oz) |
| Current
consumption: |
2.60 mA |
| Capsule
diameter: |
19 mm (0.75) |
| Length: |
175 mm (6.89 in) |
| Operating
temperature range: |
-40 to +55°C (-40 to
131°F) |
|
| |
|
|
|
|
|
