SMK4061 Stereo Mic Kit
w. 4061
The SMK4061 Stereo
Microphone Kit is a cost-effective and flexible stereo recording
solution aimed at project studios and for discreet mic setup on
stage.
The SMK4061 combines two DPA 4061s omnidirectional miniature
microphones, Lo-Sens, with a variety of mounting accessories. These
include the BLM6000 Boundary Layer Mount, which can be used in
conjunction with a 4061 (or any of DPA’s miniature mics) to
place the mic on a reflective boundary such as a floor, wall,
ceiling, piano lid etc, enabling them to capture the ambient sound
of the area. The sound captured from this “pressure
zone” has higher sensitivity, clarity and intelligibility
compared to the sound captured from the "free air" and serves as a
kind of acoustical zoom.
Also included in the kit is among others the DMM0007 soft rubber
holder. This allows all kinds of instruments, from acoustic guitar
through grand piano to drums, to be mounted in the best-sounding
position, using special non-marking adhesive discs
Also available as SMK4060 with a DPA4060 Miniature Omnidirectional
Microphone, Hi-Sens.
TEC award 2007: The SMK4061 is among the nominees chosen by MIX
Magazine's Nominating Panel for 'Outstanding technical achievement
- Microphone Technology / Recording '.

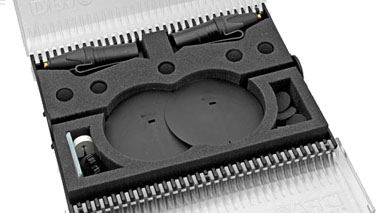

What is in the box
The DPA SMK4061 Stereo Microphone Kit contains:
2 x 4061
Omnidirectional Mic, Lo-Sens, Black, 3 meter cable
2 x
BLM6000-B Boundary Layer Mount, Black
2 x DAD6001-BC MicroDot to 3-pin XLR (P48) w. Belt
Clip
1 x
DMM0007 Universal Surface Mount, 5 pcs.
2 x
DMM0011-B Magnet Mount, Black
1 x DUA0560 Windscreen, Black, 5 pcs.
2 x
MHS6001 Microphone Holder for Strings
|
|
General
Specifications |
| Directional
characteristics: |
Omnidirectional |
| Principle of
operation: |
Pressure |
| Cartridge type: |
Pre-polarized condenser element
with vertical diaphragm |
| Frequency
range, ± 2 dB: |
20 Hz - 20 kHz ±2 dB, Soft
boost grid: 3 dB soft boost at 8 - 20 kHz, High boost grid: 10 dB
boost at 12 kHz |
| Sensitivity, nominal, ±3
dB at 1 kHz:: |
6 mV/Pa; -44.5 dB re. 1 V/Pa |
| Equivalent
noise level A-weighted: |
Typ. 26 dB(A) re. 20 µPa
(max. 28 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 38 dB (max. 40 dB) |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
Typ. 68 dB(A) |
| Total harmonic distortion
(THD): |
<1% THD up to 123 dB SPL
peak |
| Dynamic
range: |
Typ. 97 dB |
| Max. SPL, peak before
clipping: |
144 dB |
| Output
impedance: |
30-40 Ohm |
| Cable drive
capability: |
Up to 300 m (984
ft) |
| Sensitivity
selection tolerance (at 1 kHz): |
± 1.5 dB |
| Power supply: |
For wireless systems: Min. 5 V – max. 50 V
through DPA adapter; with DAD6001: 48 V phantom power ±4
V. |
| Color: |
Black |
| Cable Color: |
Black |
| Weight: |
7.5 g (0.26 oz) incl. cable and
MicroDot connector |
| Connector: |
MicroDot |
| Cable
length: |
3 m (9.8 ft) |
| Microphone length: |
12.7 mm (0.5 in) |
|
| |
|
|
|
