3511 Stereo
Kit w. 4011-TL
|
| |
Product
Code:3511Stereo
|
Model:3511
Other Microphones -
Microphone Kits

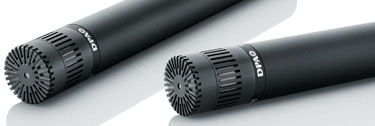

The 3511 is a complete stereo kit
for a broad range of recording applications using two 4011-TL
Cardioid Microphones, carefully matched within ±1 dB on
frequency response, sensitivity, and self-noise.
|
|
| |
|
|
| |
|
| |
|
3511 Stereo Kit w.
4011-TL
-
often used for piano
recordings of jazz or pop
-
handles very high sound
pressure levels
-
stereo boom and
accessories included
The 3511 is a complete
stereo kit for a broad range of recording applications using two
4011-TL Cardioid Microphones, carefully matched within ±1 dB
on frequency response, sensitivity, and self-noise.
These cardioids are exceptionally linear in their frequency
response - also off axis, giving you the natural experience.
Several standard set-ups such as ORTF and XY are possible.
The 4011-TL mics handle very high SPL and will
therefore allow close placement as well as more distant.
Often used for piano recordings of jazz or pop with a placement
closer to the hammers or as overheads for drums.
The kit includes microphones, a carrying case, two windscreens, two
very effective shock mounts, a precision-crafted stereo boom for
secure mounting of microphone pairs for A-B stereo recordings, and
a spacer to allow XY or ORTF stereo set-ups on the boom. Please
refer to Related products for full description of
accessories.
|
|
General
Specifications |
| Directional
characteristics: |
Cardioid |
| Principle of
operation: |
Pressure
gradient |
| Cartridge type: |
19 mm (0.75 in) pre-polarized
condenser |
| Frequency
range,
± 2 dB: |
40 Hz – 20
kHz |
| Sensitivity, nominal+/- 2 dB
at 250 Hz: |
10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent
noise level A-weighted: |
Typ. 19 dB(A) re. 20 µPa
(max. 20 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 25 dB |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
Typ. 25 dB |
| Total harmonic distortion
(THD): |
<0.5 % up to 110 dB SPL
peak |
| Dynamic
range: |
Typ. 97 dB |
| Max. SPL, peak before
clipping: |
158 dB |
| Output
impedance: |
< 200 ohm |
| Cable drive
capability: |
Up to 100 m (328 ft) |
| Switchable
attenuator: |
0 dB, -20 dB |
| Current consumption: |
2.60 mA |
| Power
supply: |
48 V Phantom
power |
| Connector: |
3-pin XLR-M (Standard P48) |
| Weight: |
165 g (5.82
oz) |
| Phase deviation for
kit: |
< 10° |
| Length: |
175 mm (6.89
in) |
| Operating temperature
range: |
-40 to +55°C (-40 to
131°F) |
| Matching tolerance
(frequency response and sensitivity): |
±1 dB (40 Hz – 20
kHz) |
|
| |
|
|
|
|
|
