3506 Stereo Kit w.
4006-TL
-
high sensitivity, low
noise-floor and extremely linear frequency
-
carefully matched
microphones
-
stereo boom and
accessories included
The DPA 3506 is a
complete 4006-TL Stereo Kit with two carefully factory-matched
phantom powered (P48) condenser microphones.
The 3506 also includes a Stereo Boom and the complete range of DPA
Acoustic Modification Accessories, all in a sturdy carrying case
with a foam insert.

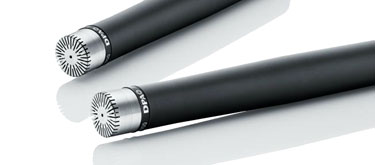

The specially selected microphones DPA 4006-TL are
matched within ±0,5 dB on both frequency range, sensitivity,
and self noise. The maximum phase response difference from 50 Hz to
20 kHz is 5°.
The high sensitivity, the low noise-floor and the extremely linear
frequency response from 20 Hz to 20 kHz (±2 dB) of the
microphone pair makes the 3506 the perfect choice for all
professional A-B Stereo recordings.
Included in this kit: microphones, carrying case, stereo boom with
holders, nose cones, grids, windscreens, and acoustic pressure
equalizers.
|
|
General
Specifications |
| Directional
characteristics: |
Omnidirectional |
| Principle of
operation: |
Pressure |
| Cartridge type: |
Pre-polarized condenser |
| Frequency
range,
± 2 dB: |
15 Hz - 20
kHz |
| Sensitivity, nominal+/- 2 dB
at 250 Hz: |
40 mV/Pa; -27 dB re. 1 V/Pa |
| Equivalent
noise level A-weighted: |
Typ. 15 dB(A) re. 20 µPa
(max. 20 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 27 dB (max. 29 dB) |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
79 dB |
| Total harmonic distortion
(THD): |
<0.5% up to 129 dB SPL
peak |
| Dynamic
range: |
Typ. 120 dB |
| Max. SPL, peak before
clipping: |
143 dB SPL peak (f> 200
Hz) |
| Output
impedance: |
<75 ohm |
| Cable drive
capability: |
Up to 300 m (984 ft) |
| Power
supply: |
48 V Phantom
power |
| Connector: |
3-pin XLR-M (Standard P48) |
| Weight: |
150 g (5.29
oz) |
| Phase deviation for
kit: |
<5° |
| Capsule
diameter: |
16 mm (0.63
in) |
| Length: |
165 mm (6.5 in) |
| Operating
temperature range: |
-40 to +55°C (-40 to
131°F) |
| Matching tolerance (frequency response and
sensitivity): |
±0.5 dB (10 Hz - 20 kHz) |
| Current
consumption: |
2.60 mA |
|
| |
|
|
|
