AWS-G500

Features AWS-G500

AWSG500 is pre-installed with the following

BKAW-550 PC RGB Video Interface Module x 1

BKAW-570 SD Video Interface Module x 2

AWS G500 Anycast Station
Discontinued

• The Anycast Station TM is an all-in-one content creation tool designed for large projection applications such as church productions, product promotions, event and live staging, music clip creation, conferences, seminars, and distance learning
• It comprises a high-quality video switcher, an audio mixer, a large LCD display, and a streaming encoder and server - all packed into an attache case size chassis weighing only about 15 lb. (7 kg)

• The video switcher provides 4:2:2 8-bit processing, 6 primary inputs plus one still picture source, 1 ME with 1 keyer (selectable between Linear Key/Luminance Key/Chrominance Key) and 1 DSK with 1 fixed station logo

• The audio mixer provides 48 kHz/24-bit processing, 6 stereo channel input mixing, 6 channel faders and 1 master fader
• High-resolution (1280 x 1024 pixel) internal processing for seamless switching between video and PC sources
• Versatile input/output (Input: Composite, S-Video, DV, and RGB/ Output: Composite, S-Video, RGB)
• VISCA control functions for compatible Sony Pan/TIlt/Zoom cameras
• A large LCD screen for PGM and PVW monitoring, plus 7 windows for input source and one internal still picture source monitoring
• Built-in streaming encoder and streaming server function (optional feature)
• Easy operation with one integrated control panel and the multi-window LCD

• Multi-camera recording for convenient nonlinear editing.

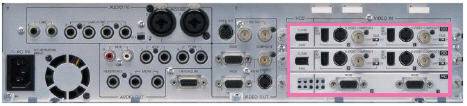

The Rear Panel Connectors of AWS-G500
Pre-installed modules:
BKAW-550 PC Video Interface Module x1
BKAW-570 SD Video Interface Module x2

Primary inputs 1 to 4:
Composite, S-Video, DV
Primary inputs 5 to 6:
RGB (XGA, SXGA, WXGA)

AWS-G500
