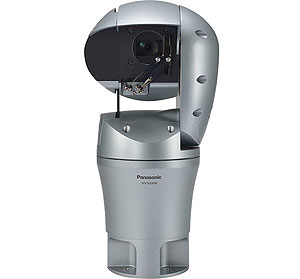

Panasonic WV-SUD638 Anti-Severe Weather PTZ Network Camera
Product Code: WV-SUD638
Features
• Full HD (1080p) 60 fps, x30 zoom lens
• Built-in wiper and Auto defroster
• Wind load durability 60 m/s (135 mph) (operation), 80 m/s (180 mph) (non-destructive)
• Video SAS (Stability Augment System) for high-class image stabilization
• “Sphere vision” provides 360° 3D viewing (Pan : 360° endless, tilt : 90° to -90°)
• Temperature -50 ºC to +60 ºC (-58 °F to +140 °F)
• IP67, IP66, IK10 certified
• Optional IR LED light (up to 150 m/500 feet, zoom interlocking)
• Anti-salt air corrosion protection ideal for seaside operations
• Smart coding mode for additional compression
The AeroPTZ is an environmentally rugged camera designed to meet extreme weather conditions.
Using the latest aerodynamic technology and salt-air corrosion resistant
glass fiber body, the AeroPTZ can withstand the beating from tropical storms, arctic blizzards, extreme hot and cold temperatures, and gale-force winds.
|
| Image sensor |
1/3 MOS |
| Supported Video Codec |
H.264 / JPEG |
| Max. Resolution |
Full HD (1,080p) |
| Max. FPS H.265/H.264 |
60 |
| Super Dynamic / WDR / BLC |
Enhanced Super Dynamic |
| Day/Night |
Day / Night (ICR) |
| ABF (Auto Back Focus) / Focus Assist |
- |
| IR LED |
Yes (Option) |
| Min. Illumination Color (lx) |
0.06 |
| Min. Illumination B/W (lx) |
0.02 / 0 (w/IR-LED) |
| Lens |
f=4.3-129mm, F1.6 |
| Angular field of view |
H: 2.3-64 deg. V: 1.3-38 deg. |
| Pan / Pan Range |
360° Endless |
| Tilt / Tilt Range |
Upright: -45 - +90 deg. Forward tilt: -90 - +90 deg. Hanging: -90 - +30 deg. |
| Optical Zoom |
30x |
| with Extra Zoom |
45x |
| Audio |
2-Way (No Built-in MIC) |
| External I/O |
3/2 |
| Vandal Resistant |
IEC62262, IK10 |
| Water and Dust Resistance |
IP66, IP67, NEMA 4X |
| ClearSight Coating / Rain Wash Coating |
- |
| Smart Coding |
Yes |
| Temperature (degree, Celsius) |
MAX: 60
MIN: -50 |
| Temperature (degree, Fahrenheit) |
MAX: 140
MIN: -58 |
| Power Source |
100-240V AC, PoE Injector |
| Note |
Gray & Brown model : Temperature up to +55 °C. |
|
|
