Multi-format
output/Cross-converter function - BR-HD50
A sophisticated cross-converter
function enables output not only of 720p signals, but also 1080i,
480/576p and 480/576i signals. Plus, thanks to switchable HDV and
DV recording mode functionality along with DVCAM playback,
you’ll have no problems adding this recorder/player to your
existing editing system.
HD 60 Hz/50 Hz compatibility -
BR-HD50
Switch between HD 60 Hz or 50 Hz as required. This makes it easy to
work with internationally sourced material and transfer it to a
non-linear system for editing. You can also record to Standard DV
or Mini DV tape in either HD 60 Hz or 50 Hz. *Cannot be used as an HD 60 Hz/50 Hz converter. The
BR-HD50 can record and play back signals in both HD 60 Hz and 50 Hz
formats.
Recording system
- BR-HD50
The BR-HD50 can record signals in 720/24p/25p/30p, 480/60p or
576/50p HDV and 480/60i, 576/50i and 480/24p and 576/25p
DV.
Standard
DV/Mini DV compatible mechanism -
BR-HD50
Proven on Professional DV VCRs, this
mechanism provides not only improved running stability, but also
accommodates both Standard DV and Mini DV format cassettes without
any adapter.
DVCAM playback
capability (SD) - BR-HD50
DVCAM recordings can be played back
directly on the BR-HD50. This makes it easy to use DVCAM recordings
as source material for editing.
Auto error
correction system - BR-HD50
JVC has developed an auto error
correction system that operates on a frame-by-frame basis to ensure
accurate error compensation under all conditions. After optimally
calibrating the waveform with a pre-filter circuit, the VCO
(voltage control oscillator) setup value is changed so that the
reading of the clock phase is shifted to the position where the
error rate is lowest. The result is accurate, consistent
suppression of block noise and reliable, professional-standard
performance at all times.
Sweeper
heads - BR-HD50
During recording and playback, to
reduce the block noise which is caused by dust adhering to the
heads, our HDV/DV camcorder and recorders incorporate an advanced
drum assembly with specially designed “sweeper” heads.
These dummy heads sweep off any magnetic material dropped by the
tape or any dust that may have entered from outside the
unit.
HDMI
OUT
The BR-HD50 is equipped with an
all-in-one HDMI output for direct connection to the latest
high-definition projector and LCD displays.
RS-422A
interface
For compatibility with the widest range of editing systems, the
BR-HD50 is equipped with an industry-standard RS-422A interface,
allowing easy integration with high-grade NLE
systems.
IEEE 1394
interface
For lossless dubbing and recording of both HD and SD programs,
uncompressed HD (MPEG-2) or SD (DV) digital signals can be input or
output to or from external devices such as a non-linear editing
system. A front panel switch allows you to switch easily between SD
and HD.

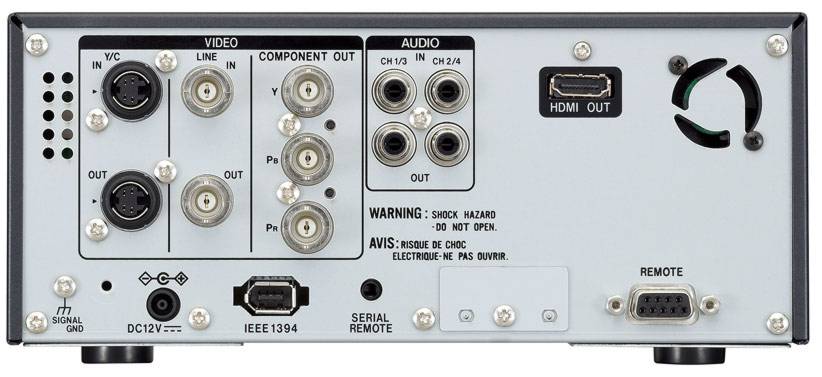

Y/C input/output and
composite input/output
In addition to DV input/output, the BR-HD50 is equipped with analog
component (BNC) connectors, Y/C input/output connectors (SD mode)
and composite input/output (BNC) connectors (SD
mode).

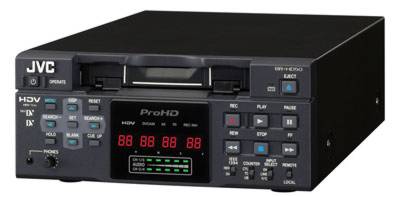

Large full counter
A big 8-digit LED display on the front panel displays time code,
user bits and VTR status
Audio indicator
This indicator lights whenever audio signals are input. Also, it
provides a convenient way to check for the presence of the audio
signals during tape playback.
High-speed time code search/blank
search
The built-in time code generator provides preset (rec run) and
regene time codes. In combination with the DV 20x search function
(100x max. in the FF or REW mode) or HD 8.5x forward search
function (6.5x in reverse), this provides super-fast access to any
target point on the tape with visible pictures.
High-speed time code search/blank
search
The built-in time code generator provides preset (rec run) and
regene time codes. In combination with the DV 20x search function
(100x max. in the FF or REW mode) or HD 8.5x forward search
function (6.5x in reverse), this provides super-fast access to any
target point on the tape with visible pictures.
Continuous recording
When a camcorder is connected to the BR-HD50 via the IEEE 1394
connector, the BR-HD50 will start recording 5 minutes before the
tape in the camcorder ends. This enables continuous shooting for
extended periods with no breaks in the recording.
On-screen menu
Systematic, easy-to-understand menu screens simplify setting and
operation procedures. Menu setting can be done using either the
buttons on the front panel
|
