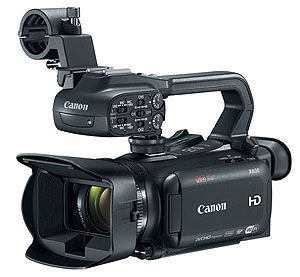

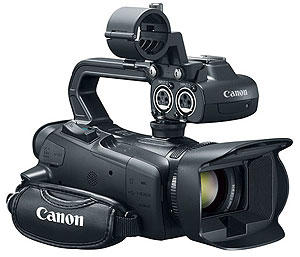

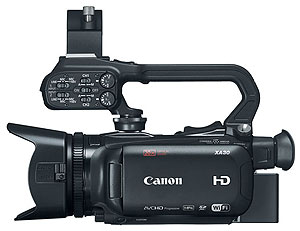

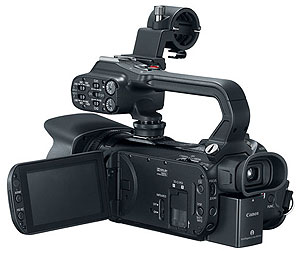

Canon XA30 is an ideal and
perfect choice from movie
and television production to
event recordings as it is
capable to provide clear and
powerful performance. XA30
camcorder is combined with
remarkable clarity in images,
constant operatability and
portability in any kind of
applications. XA30 is designed
with Genuine Canon 20x High
Definition Optical Zoom lens, a
newly developed HD CMOS Pro
Image Sensor with improved
low-light performance. It also
features latest Wide DR Gamma
and Highlight Priority modes
which helps to produce extensive
range of colors and tones in
image capture. XA30 can capture
slow and fast motion footage of
upto 1200x the original speed.
XA30 is well-made and suitable
for everything from movie
productions to company
presentations or weddings, it
delivers high quality and clear
videos.
|

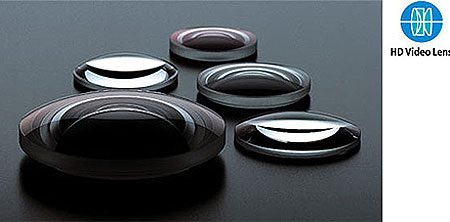

Genuine Canon 20x High
Definition Optical Zoom Lens
The XA30 Professional
Camcorder features a Genuine
Canon 20x HD Zoom Lens that
provides a highly versatile zoom
range with 35mm equivalent of
26.8–576mm, and a minimum object
distance of just 23.6 inches
(60cm) to help capture powerful
recordings near and far. The
impressive image quality is
enhanced by an 8-blade Circular
Aperture design, which helps to
avoid the ''starburst'' effect
of point light sources in
non-circular aperture designs.
Out-of-focus areas are smooth,
natural and appealing. An
endless-type focus and zoom
control includes
user-programmable direction and
sensitivity modes. Zoom speed
can be set to either a variable
or constant (with 16 levels)
speed setting, with Fast,
Normal, or Slow zoom speed
levels.

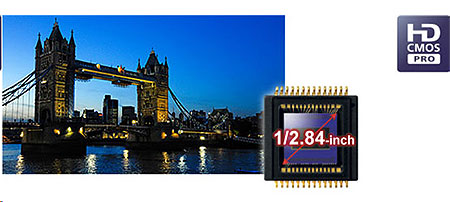

New, Advanced HD
CMOS Pro Image Sensor with
Improved Low-light Performance
For incredibly sharp and
detailed high-definition video
recording, the XA30 Professional
Camcorder features a
reengineered, 1/2.84-inch, 2.91
Megapixel HD CMOS Pro Image
Sensor that captures
approximately 2136x1362 pixels.
Thanks to the sensor's enhanced
sensitivity, the XA30 helps
provide vivid, accurate
recording through an improved
signal-to-noise ratio.
Full HD 1920x1080
Recording Capabilities
Multiple recording modes,
resolutions and frame rates make
the XA30 Professional Camcorder
creatively flexible and
adaptable to virtually any
production environment. It can
record in Full HD resolution in
both AVCHD and MP4 recording
codecs, at multiple bit rates,
and even simultaneously.

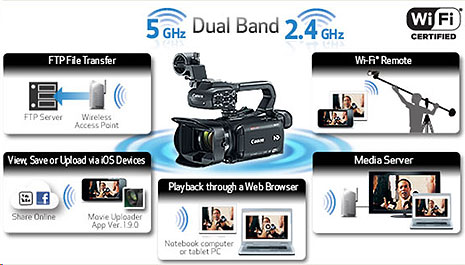

Built-in Wi-Fi®
Technology with FTP Transfer
Capability The XA30
Professional Camcorder features
built-in dual-band (5 GHz/2.4
GHz) Wi-Fi® technology, enabling
FTP file transfer to Cloud-based
servers for convenient back ups.
The dual bands help ensure that
data can be sent even in areas
with increased signal
interference. It is also
possible to connect to
compatible networks, wireless
hotspots and compatible iOS®
mobile devices using the free
Canon Movie Uploader app*, or
play back video on the
camcorder's memory cards to
Wi-Fi® enabled TVs and
computers. Wi-Fi® technology
also allows remote control of
key camcorder controls, such as
recording start/stop and zoom
(in three different speeds),
exposure functions (aperture,
shutter speed, gain, exposure
compensation and more), white
balance and focus settings via a
compatible tablet or smartphone.
The ability to control the
camera remotely, such as when
using a camera crane, helps
improve mobility in various
shooting environments.

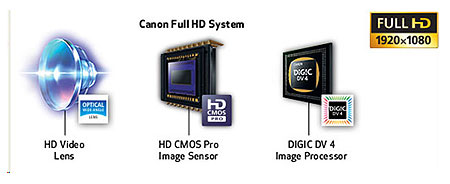

Superb Image
Reproduction The
XA30 Professional Camcorder
represents Canon's Full HD
System, delivering truly
excellent image quality and
reproduction for most any
application. With its 20x
Optical Zoom HD Video lens, its
new HD CMOS Pro Image Sensor and
the powerful DIGIC DV 4 Image
Processor working together to
capture and process the images
at hand, the XA30 is positioned
to deliver HD video that is
nothing short of stunning.
|
Camera Specifications |
Monitor
|
3.5-inch
widescreen OLED touch
panel colour, approx.
1.23million dots |
Electronic Viewfinder
(EVF)
|
0.24-inch,
approx. 1.56million dots |
Image Sensor |
1/2.84-inch HD CMOS Pro
sensor, approx. 3.09
megapixels (total
pixels), approx. 2.91
megapixels (number of
effective pixels), RGB
primary colour filter |
Microphone
|
Stereo Condenser
Microphone |
Lens
|
20x optical zoom |
Digital Zoom
|
400x (Movie mode only) |
Lens Configuration |
12 elements in 10
groups, 2 Aspherical
lenses used |
Filter Diameter |
58mm P0.75 |
Image Stabilizer |
Intelligent IS |
AF System
|
High-speed AF (Instant
AF), Medium AF, Face
Priority AF, Face-Only
AF, Touch Focus, Manual
focus Ring |
Video Recording
Specifications |
Video Recording
Standards
|
AVCHD (AC-3/H.264
standard): HD Recording
only 1920 x 1080 / 1440
x 1080 recording
supported MP4
(AAC/H.264 standard): HD
Recording only 1920 x
1080 / 1280 x 720 / 640
x 360 recording
supported |
Effective Pixels |
2136 x 1362 |
Audio Compression
|
AVCHD: Dolby Digital 2ch
(AC-3 2ch) MP4:
MPEG-2 AAC-LC (2ch) |
Shooting Modes
|
Smart Auto, P, Tv, Av,
M, Cinema, Portrait,
Sports, Night, Low
light, Snow, Beach,
Sunset, Spotlight,
Fireworks, Infrared |
Shutter Speed Range |
Tv mode: 1/6 - 1/2000
P mode: 1/12.5 - 1/500
Low light mode: 1/2 -
1/500 |
Minimum Illumination
|
Approx. 0.1lx (low light
mode) |
Cinema Style |
Cinema-look filters |
Image Effects |
Brightness, Contrast,
Sharpness, Colour Depth |
Relay Recording |
Supported |
Dual Recording
|
Supported |
Recording Check
|
Supported |
Easy Operations
Features |
Zoom |
Zoom Lever |
Navigation |
Touch
based OLED panel |
Extended Control
|
Remote
Control |
Battery |
Rechargeable
Intelligent lithium
battery BP-820 / 828
|
Still Image
Recording
Specifications |
Still Image Recording
|
SD / SDHC / SDXC memory
card |
Still Image Compression |
DCF, Exif Ver. 2.3
supported Compression
method: JPEG |
Recording Pixels |
In movie Rec Pause and
Photo Mode: 1920 x 1080
/ 1280x 720 / 640 x 360 |
Shooting Modes |
Smart Auto, M, P, Tv,
Av, Portrait, Sports,
Snow, Beach, Sunset,
Night, Low light,
Spotlight, fireworks,
Infrared |
Inputs / Output
Terminals
|
Video Out |
Mini HDMI, AV Cable |
Analog Output |
Yes |
Microphone Terminal
|
Yes |
USB Terminal
|
Yes |
Tally Lamp |
Supported |
Infrared Mode
|
Supported, with white or
green light recording |
HDMI-Out
|
Supported |
Audio-In |
XLR (x2) |
General |
Power Supply (Rated) |
7.4 V DC (battery pack),
8.4 V DC (DC in) |
Operating Temperature |
0 - 40°C 85% (relative
humidity) -5 - 45°C
60% (relative humidity) |
Dimensions |
Approx. 109 x 84 x 182mm
(4.3 x 3.3 x 7.2in.) |
Weight (Main Unit) |
Approx. 765g (1.7lb) |
|
|
