Image Sensor |
Sensor
|
1.0 Type CMOS |
System
|

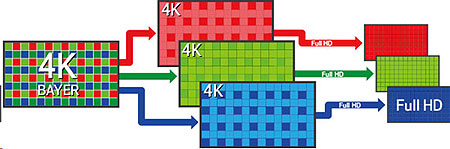

Bayer pattern filter |
Total pixels per sensor
|
13.36MP (4224 x 3164) |
Effective pixels per
sensor
|
Video Mode: approx.
8.29MP (3840 x 2160)
Stills mode: approx.
12MP (4000 x 3000) |
Minimum illumination |
AUTO MODE: PAL 50.00i:
Approx. 5.32lux (at
1/50sec. shutter speed)
25.00P: Approx. 2.68lux
(at 1/25sec. shutter
speed) |
Manual Mode PAL 50.00i /
25.00P: Approx. 0.05lux
(shutter speed 1/2sec.) |
Horizontal Resolution
|
1700 lines or more (4K
Recording), 900 lines or
more (Full HD recording) |

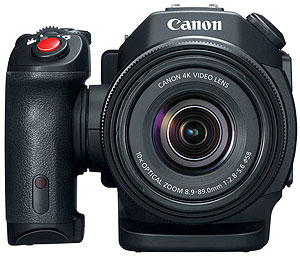

Lens |
Zoom ratio
|
10x optical |
Focal length
|
Video Mode: 8.9 - 89mm
(27.3 - 273mm 35mm
equivalent) Stills
Mode: 4:3 - 24.1 - 241mm
/ 3:2 - 25 - 250mm /
16:9 - 27.3 - 273mm
(approx.) |
Minimum focus distance
|
50cm across entire zoom
range approx. 8cm at
wide macro setting |
ND filter
|
Yes, single density
built-in. 1/8 (3-step)
equivalent |
Zoom control |
Manual. 35mm conversion
markers provided |
Focus control
|
AF, Face detection and
tracking, Push AF, AiAF
(Photo Mode) Manual
focus ring Touch
Focus Function. |
Iris control
|
Auto, manual via control
wheel |
Aperture range
|
f/2.8 - f/5.6 (W-T) |
Filter diameter
|
58mm |

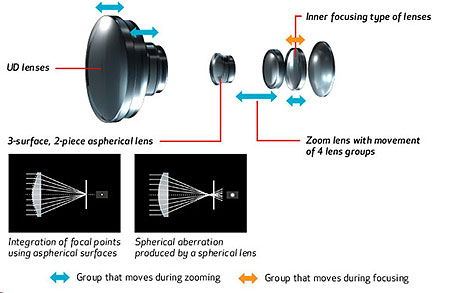

Lens elements / groups |
12 Groups of 14 elements |
Aperture blades |
8 blade diaphragm.
Mechanical shutter built
in. |
Image stabilization
system
|
Optical (lens shift) +
electronic
stabilisation. Movie
Mode IS options: Dynamic
IS1, Standard IS,
Powered IS |
Digital zoom
|
No Digital Zoom. 2 x
Digital Teleconverter
via assignable button |
Image Processor
|
Type
|
DIGIC DV 5 |
Sampling accuracy
|
YCC 4:2:2 (4K or Full
HD, XF-AVC/MXF) |
Bit depth
|
8-bit |
Recording
|
Video storage
|
media 4K: CFast 2.0™
card Full HD / Photo:
SD card (Class 10
recommended for 50Mbps) |
Capacity |
Depends on card used |
Recording time |
Depends on card
capacity. 4K: CFast
2.0TM 64GB approx.
25mins. @ 305Mbps.
Full HD 64GB SD card
approx. 170mins. @
50Mbps |
Recording file format
|
Material eXchange Format
(MXF) |
Recording format
|
Video Format: XF-AVC.
Compression Format:
MPEG-4 AVC / H.264 |
Recording frame rate
|
(PAL model) CFast 2.0™
Card: 4K (3840 x 2160)
Recording; 25.00P /
24.00P (305Mbps or
205Mbps) Full HD
Recording (1920 x 1080)
50Mbps: 50.00P; 35Mbps
at 50.00i / 25.00P /
24.00P HDMI Out: 4K
(3840 x 2160) Recording;
25.00P / 24.00P (305Mbps
or 205Mbps) Full HD
Recording (1920 x 1080)
50Mbps: 50.00P; 35Mbps
at 50.00i / 25.00P /
24.00P 1280 x 720: 50
/ 35 Mbps; 100P |
Slow / Fast motion
|
Yes: 1/4x - 1200x
speed2. Frame rate
25.00P |
Interval Record
|
Yes, Photo Mode only |
Frame Record |
No. |
Pre Record (cache
record)
|
Yes, in Full HD mode to
SD card only. 5 Second
pre-record time |
Scan Reverse
|
No |
HD->SD conversion
|
No |
Internal Data Transfer |
No |
Photo storage media
|
SD card |
Still Quality |
8.29 - 12MP depending on
format |
System |
Monitor Panel |
Monitoring Panel Type
|
Capacitive touch screen
LCD |
Size |
3 inch / 7.66cm |
Dots |
approx. 1,030,000 |
Image quality
adjustments
|
Brightness, Backlight |

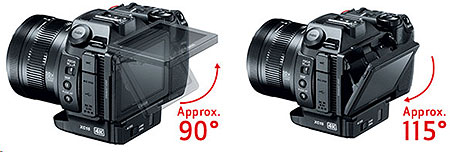

Adjustable
|
Yes. 2-axis parallel
hinge mechanism |
Waveform Monitor
|
Yes |
View Assist Function |
Yes, when High
Brightness Priority
selected in CP menu |
Focus Assist
|
Magnification. Area
selectable via touch
screen |
Peaking |
Yes, Red, blue or yellow
selectable |
Zebra
|
Yes. 70% or 100%,
selectable |
Markers |
Yes. Horizontal or grid
markers white or grey |
EVF
|
Size
|
No EVF. Optical loupe
viewfinder attachment
for LCD screen supplied |
Inputs / Outputs
|
Audio in |
Built-in stereo
microphone, 3.5mm stereo
mini jack external
microphone, 2 x XLR
via Microphone Adapter
MA-400 |
Audio Connection |
Canon 13-pin connector
for Microphone Adapter
MA-400 |
Headphone output
|
3.5mm Stereo mini jack |
Video monitor output |
No |
HDMI
|
Yes. Output only |
HDMI Video Output
(Playback Mode)
|
PAL 4K movie
playback: 3840 x 2160 /
25.00P; 1920 x 1080 /
50.00P / 50.00i; 720 x
576 / 50.00P HD mo
.vie playback: 1920 x
1080 / 50.00P / 50.00i;
720 x 576 / 50.00P |
USB |
Yes mini-B, Hi-speed,
Output only |
HD/SD-SDI output |
No |
Time code
|
Yes, via HDMI |
Genlock
|
No |
Component out |
No |
AV terminal
|
No |
DC input
|
Yes |
Remote Control Terminal
|
No |
Colour Bars |
Yes. PAL Model: EBU /
SMPTE. Can be output via
HDMI |
General |
Battery Type
|
LP-E6N (7.2v, 1865mAh)
supplied |
Power Consumption |
Approx. Max. Recording:
6.0W3 / Playback: 4.1W |
Continuous Recording
Time |
Approx.: 110mins.
(maximum) / 75mins.
(typical) |
Dimensions |
Approx. 128 x 102 x
122mm (body only)
Approx. 132 x 221 x
238mm (with viewfinder
unit, MA400 and lens
hood) |
Weight (camera only)
|
Approx. 955g Body Only,
approx 1590g fully
equipped |
Weight (fully equipped)
|
Approx. 1040g (with lens
hood, battery, CFast
2.0™ card and SD card) |
Operating Temperature
range
|
Approx. 0 to 40°C, 85%
(relative humidity)
Approx. -5 to 45°C, 60%
(relative humidity) |
Supplied Accessories |
Lens hood, (Loupe)
Viewfinder Unit,
Microphone Adapter
MA-400 , Battery Pack
LP-E6N, High Speed HDMI
Cable (HTC100/S),
Compact Power unit
CA-945, Unit Cable UN5,
AC Cable, Interface
Cable (IFC-300PCU/S),
Shoulder Strap |
