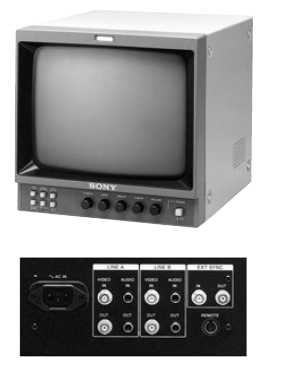

PVM-96E

PVM-96E *(Discontinued Model)

Feature of PVM-96E

• 9-inch

• Black and white video monitor

• CCIR/EIAautomatic selection

• High resolution of 900 TV lines*Composite input

• Accepts external sync

• Color temperature D65

• Built-in H/V delay, underscan, notch filter and tally functions

• Aspect ratio 4:3 and 16:9switchable

• Built-in speaker *Mountable into a 19-inch EIA standard rack with a second PVM-96E (or the optional mounting panel) and the optional rack mounting bracket

* 8 5/8 inches viewable area, measured diagonally.

Supplied Accessories:

• AC Power Cord (1)

• AC Plug Holders (1)

• Remote Connector 8-pin (1)

• Operatioon Manual (1)

Product code PVM96E

Offer USD 330/pc



Specifications
General
System: CCIR 625 lines/50 fields, EIA 525 lines/60 fields (automatically selected)

Power requirements: 120 V, 50/60 Hz

Power consumption: Max. 28 W

Operating temperature: 0 to 35 °C (32 to 95 °F)

Dimensions: 217 (W) x 218 (H) x 250 (D) mm (8 5/8 x 8 5/8 x 9 7/8 inches)

Mass: 5.5 kg (12 lb 2 oz)

Picture tube: 23.0 cm (9 inches), 21.7 cm (8 5/8 inches) viewable area measured diagonally, 90° deflection

Color temperature: D65

Resolution: 900 TV lines

Frequency response: -3 dB at 10 MHz

Normal scan: 8% overscan

Underscan: 3% underscan

Linearity: Horizontal: less than 8%

Vertical: less than 7%

Inputs/outputs

Video: Loop-through BNC, 1.0 Vp-p, sync

negative, 75 Ω termination

Audio: Loop-through phono, -5 dB, high impedance, monaural

External sync: Loop-through BNC, 1.0 to 4.0 Vp-p negative, 75 Ω termination

Audio power output: 0.5 W
