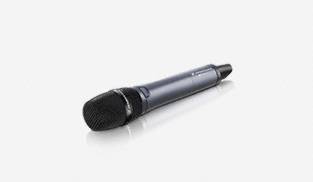

 Sennheiser SKM 300-845 G3


Product Code: SKM300-845G3

Sennheiser Frequency Range

Band C 734 - 776 MHZ   Buy Sell Sales SKM 300-845 G3
Band D 780 - 822 MHZ   Buy Sell Sales SKM 300-845 G3
Band A 516 - 558 MHZ   Buy Sell Sales SKM 300-845 G3
Band G 566 - 608 MHZ   Buy Sell Sales SKM 300-845 G3
Band B 626 - 668 MHZ   Buy Sell Sales SKM 300-845 G3
Band E 823 - 865 MHZ   Buy Sell Sales SKM 300-845 G3

Optional STEREO 3.5mm SCREW LOCK- LOCKING JACK PLUG

Fits all Sennheiser evolution wireless (ew) series (G1, G2, G3) belt packs 100, 300, 500 series.
Use almost any brand of lapel, clip-on, headset microphones on Sennheiser’s evolution wireless (ew) series with this replacement jack.

Price Less than USD 10.00
General Description
The microphone capsule of this hand-held transmitter/microphone combination is based on Sennheiser's successful evolution 800 series. Power and presence meet control as the super-cardioid capsule rejects feedback while providing a rich and detailed reproduction of the voice. A programmable mute button silences the microphone when needed or can also be set to act as a push-to-talk mode.

Features
  • Sturdy metal housing
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization via infrared interface from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Battery indicatation in 4 steps, also shown on receiver display
  • Programmable Mute button
  • Easy-exchangeable microphone modules from evolution series
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement
Delivery Includes
  • 1 SKM 300-845 G3 handheld transmitter (dynamic, super-cardioid)
  • 1 MZQ 1 microphone clip
  • 2 batteries
  • Operating instructions

Technical Data

RF frequency range 516 ..... 865 MHz
Transmission/receiving frequencies 1680
Presets max. 24
Switching bandwidth 42 MHz
Peak deviation +/- 48 kHz
Compander HDX
Frequency response (microphone) 80.....18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
RF output power 10/30 mW
Operating time (transmitter) >8 h
Dimensions (Transmitter) d= 50 mm, l= 265 mm
Weight (Transmitter) 450 g
Transducer; Microphone type dynamic
AF sensitivity 1,6 mV/Pa
Sound pressure level (SPL) 154 dB(SPL) max.
Pick-up pattern super-cardioid
