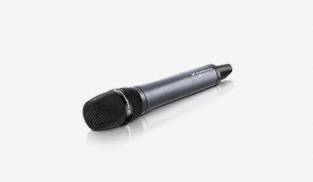

 Sennheiser SKM 100-845 G3


Product Code: SKM100-845G3

Sennheiser Frequency Range

Band C 734 - 776 MHZ
Band D 780 - 822 MHZ
Band A 516 - 558 MHZ
Band G 566 - 608 MHZ
Band B 626 - 668 MHZ
Band E 823 - 865 MHZ
General Description
The SKM100-845 G3 raises the bar with itís integral sync function. The transmitter automatically adjusts to a corresponding G3 receiver with a simple push of the receiverís sync button. The capsule is based on the evolution 800 series, providing rich sound while minimizing the risk of feedback. The directivity of the mic reproduces the voice clearly while rejecting ambient background noise; this makes it a great choice where feedback may be an issue. Perhaps you want a different pick-up pattern or sound characteristic? The newly developed G3 microphone heads can be changed out in seconds without tools.

Features
  • Sturdy metal housing
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization via infrared interface from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Battery indicatation in 4 steps, also shown on receiver display
  • Easy-exchangeable microphone modules from evolution series
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Wide range of accessories adapts the system to any requirement
Delivery Includes
  • 1 SKM 100-845 G3 handheld transmitter (dynamic, super-cardioid)
  • 1 MZQ 1 microphone clip
  • 2 batteries
  • Operating instructions

Technical Data

RF frequency range 516 ..... 865 MHz
Transmission/receiving frequencies 1680
Presets 12
Switching bandwidth 42 MHz
Peak deviation +/- 48 kHz
Compander HDX
Frequency response (microphone) 80.....18000 Hz
Signal-to-noise ratio > 110 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
RF output power 30 mW
Operating time (transmitter) >8 h
Dimensions (Transmitter) d= 50 mm, l= 265 mm
Weight (Transmitter) 450 g
Transducer; Microphone type dynamic
AF sensitivity 1,6 mV/Pa
Sound pressure level (SPL) 154 dB(SPL) max.
Pick-up pattern super-cardioid
