7” HD/SD SDI LCD Monitor

Introducing high performance, cost effective professional 7" LCD Monitor with HD/SD-SDI, HDMI & 2 Video Composite Inputs, high resolution for HD & SD , simple operation, light weight, durable and reliable, DC power operated, ideal solution for On-Camera monitoring application.

Advanced Engineering Features
Real Cost –Effective HD/SD SDI LCD Monitor
High resolution LCD panel with LED back light to achieves 250cd/m2 brightness & 500:1 contrast ratio

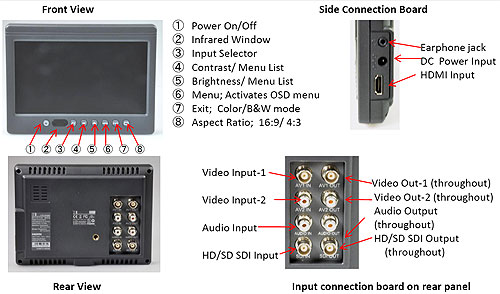

Multi-TV Standard; 1080i/p, 720p, 576i/p, 480i/p and multi-inputs; BNC, RCA and HDMI
Audio input and built-in speaker for audio monitoring
Ultra Wide-width voltage support; DC input voltage range from 5.8V to 16.8V
Light weight(422g)and Compact size(W175mmxH130mmxD32mm)

Standard Accessory
Mount Bracket
Remote Control
PVC Sunshade

Specifications
LCD Panel; 7" Diagonal with LED back light
Pixels: 800x3(RGB) x480
Brightness: 250cd/m²
Contrast: 500:1
Viewing Angle: 140°U/D/L/R (CR>10)
Color Depth; 24-bit(16,777,216 Colors)
Dot Pitch; 0.0642(W) x 0.1790(H)mm
Input Signal; HD/SD SDI, HDMI, 2 x Video Composites
TV Standard; 1080i/p, 720p, 572i/p or 480i/p
Power Input; 5.8V –16.8V DC
Power Consumption: 0.5Amp.(Max)@12VDC
Built-in Speaker: 1W
Dimensions(LWD): 175×130×23mm
Weight: 422g

Optional Accessory
DV Battery Mount Adaptor,
Articulating Arm
Clamp unit for Arm

Optional Items:
		No Image
SONY F970 type DV Battery Mount Adapter (DBAS) Less than USD 35	Panasonic D54 type DV Battery Mount Adapter (DBAP) Less than USD 33	Stand type Li-ion Battery (SLM-5) Less than USD 75

SMA700 Mount Adapter Less than USD 40	4.2" Articulating Arm (SAA4) Less than USD 95	8.3" Articulating Arm (SAA8) Less than USD 105
	No Image
Clamp unit for Articulating Arm (SCMP) Less than USD 40	Internal Li-ion Battery for SLM-700 (SBP-1) Less than USD 65	5V/12V Li-ion battery Box (SBP-45) Less than USD 80

HDMI-HDMI cable, 20cm Length (CHH-20) Less than USD 25	CMH-50 mini-HDMI to HDMI cable, 50cm Length Less than USD 25
