TMG-500 : 5” HDMI LCD Monitor

Introducing high performance, cost effective professional 5" LCD Monitor with HDMI, Video Composite & Component Inputs, high resolution for HD & SD , simple operation, light weight, durable and reliable, DC power operated, ideal solution for DSLR or Compact Video Camera monitoring application.

Advanced Engineering Features
Small, Compact & Cost Effective LCD Monitor
High Brightness (400cd/㎡) /Contrast (600:1) to proof outdoor operation.
Multi-TV Standard; 1080i/p, 720p, 576i/p, 480i/p and multi-inputs; BNC, RCA and HDMI
Audio input and built-in speaker for audio monitoring
Ultra Wide-width voltage support; DC input voltage range from 6V to 24V
Light weight(386g)and Compact size(W151mmxH116mmxD39.5mm, D98.1mm with Sunshade)

Standard Accessory
DV Battery Mount Plate
Sunshade
AC Adaptor

HDMI LCD Monitor

Specifications
Panel Size; 5" TFT LCD (16:9)
Pixels: 800 x480Brightness: 400cd/㎡
Contrast: 600:1
Viewing Angle: 150°/130°(H/V)

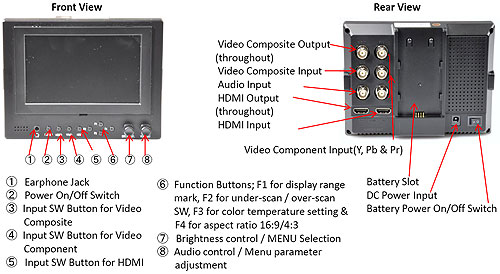

Input Signal; HDMI, Video Component & Video Composites
TV Standard; 1080i/p, 720p, 572i/p or 480i/p
Power Input; 6V –24V DC
Power Consumption: 5.4W
Built-in Speaker: 250mW
Dimensions(LWD): 151×116×98.1mm(with Sunshade)
Weight: 316g/386g(with Sunshade)

Optional Accessory
Articulating Arm
Clamp unit for Arm

Optional Items:
		No Image
SONY F970 type DV Battery Mount Adapter (DBAS) Less than USD 35	Panasonic D54 type DV Battery Mount Adapter (DBAP) Less than USD 33	Stand type Li-ion Battery (SLM-5) Less than USD 75

SMA700 Mount Adapter Less than USD 40	4.2" Articulating Arm (SAA4) Less than USD 95	8.3" Articulating Arm (SAA8) Less than USD 105
	No Image
Clamp unit for Articulating Arm (SCMP) Less than USD 40	Internal Li-ion Battery for SLM-700 (SBP-1) Less than USD 65	5V/12V Li-ion battery Box (SBP-45) Less than USD 80

HDMI-HDMI cable, 20cm Length (CHH-20) Less than USD 25	CMH-50 mini-HDMI to HDMI cable, 50cm Length Less than USD 25

TMG-500 5” HDMI LCD Monitor

TMG-500
5” HDMI LCD Monitor
