DPA RWK4017B Rycote Windshield Kit for 4017B
|
|
Product Code: RWK4017B
 |
DPA Microphones has joined forces with Rycote�
to develop a Windshield Kit Solution for DPA 4017B Shotgun. The strong
suspension and windshield solution has been designed specifically to take the
DPA 4017B shotgun mic's compact size and lightweight into consideration. Special
soft lyres are selected to optimize vibration isolation.
This kit together with the DPA 4017B provides everything an outside broadcaster,
journalist or location film maker could need for clear, directional sound,
regardless of the weather and environmental conditions.

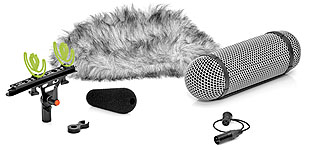

Included in the box:
� Rycote� Suspension with the Rycote� Windshield
� DPA XLR cable
� Rycote� fur windjammer
� Rycote� XLR holder
� Rycote� brush |
| Directional pattern: |
Supercardioid,
lobe-shaped |
| Principle of operation: |
Pressure gradient, with
interference tube |
| Cartridge Type: |
Pre-polarized
condenser |
| Frequency range: |
20 Hz to 20
kHz |
| Frequency range, ± 2
dB: |
70 Hz to
18 kHz with typ. 3 dB
soft boost at 15 kHz |
| Sensitivity, nominal, ± 2 dB at 1
kHz: |
19 mV/Pa; -34.4 dB
re. 1 V/Pa |
| Equivalent noise level,
A-weighted: |
Typ. 14 dB(A) re. 20
µPa (max. 15 dB(A)) |
| Equivalent noise level, ITU-R
BS.468-4: |
Typ. 25 dB (max. 26
dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1
Pa (94 dB SPL): |
Typ. 80
dB(A) |
| Total Harmonic Distortion (THD) at 1
kHz: |
< 1 % up to 133 dB
SPL peak |
| Filters: |
High boost: +4 dB at 8
kHz. Low cut: First order filter, below 120 Hz |
| Dynamic range: |
Typ.
119dB |
| Max. SPL, peak before
clipping: |
152
dB |
| Output impedance: |
<150
ohm |
| Cable drive capability: |
100 m (328
ft) |
| Output balance principle: |
Signal
balanced |
| Common Mode Rejection Ratio
(CMRR): |
> 40
dB |
| Power supply (for full
specifications): |
48 V Phantom power
(± 4 V) |
| Current consumption: |
4.5
mA |
| Color: |
Matte
black |
| Weight: |
68 g (2.4
oz) |
| Diameter: |
19 mm (0.75
in) |
| Capsule diameter: |
19 mm (0.75
in) |
| Output voltage, RMS: |
> 1.8
V |
| Microphone Length: |
212 mm (8.3
in) |
| Polarity: |
+V at Pin 2 for
positive sound pressure |
| Connector: |
XLR-3M. Pin 1: shield,
Pin 2: signal + phase, Pin 3: - phase |
|
Relative Humidity
(RH): |
Up to
90% |
| Temperature range: |
-40 °C to 45
°C (-40 °F to 113 °F) |
|
|
|
|
|
