DPA d:dicate� 3521 Compact Stereo
Kit w. cardioid mics
|
|
Product Code:
3521
 |
� Complete stereo kit: two 4021 compact
cardioid mics + accessories
� Perfect for any PA/Live job
� The microphones are carefully matched within 1 dB
The 3521 is a complete stereo kit with two 4021 Compact Cardioid Microphones
carefully matched within �1 dB on frequency response, sensitivity and
self-noise.
Complete with a wide range of accessories, this kit is designed especially for
low profile mounting directly inside a piano.
With the XY/ORTF holder, the kit is also exceptional as a compact stereo pair
for applications such as overhead for drums, horn or string sections, choirs,
main or additional spot pair for small or big acoustic ensembles.

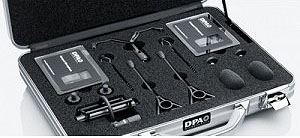

The complete kit is supplied in a sturdy carrying case and includes the
combination XY/ORTF holder, a shock mount, two gooseneck mounts and two magnet
bases for mounting on metal surfaces and windscreens. |
|
Directional
characteristics: |
Cardioid |
|
Principle of
operation: |
Pressure
gradient |
|
Cartridge type: |
Pre-polarized condenser |
|
Frequency
range,
± 2 dB: |
40 Hz – 20
kHz |
|
Sensitivity, nominal+/- 2 dB
at 250 Hz: |
8 mV/Pa; -42 dB re. 1 V/Pa |
|
Equivalent
noise level A-weighted: |
Typ. 20 dB(A) re. 20
µPa |
|
Equiv. noise level ITU-R
BS.468-4: |
Typ. 25 dB(max. 28 dB) |
|
S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
74 dB(A) |
|
Total harmonic distortion
(THD): |
<0.5 % up to 110 dB SPL peak, <1% up tp
116 dB SPL peak |
|
Dynamic
range: |
Typ. 97 dB |
|
Max. SPL, peak before
clipping: |
145 dB |
|
Output
impedance: |
<300 ohm |
|
Cable drive
capability: |
Up to 100 m (328 ft) after XLR
connector |
|
Power
supply: |
Phantom P48 |
|
Connector: |
3-pin XLR-M (Standard P48) |
|
Weight: |
27.5 g (0.97 oz) (without
cable) |
|
Phase deviation for
kit: |
< 10° |
|
Length: |
31 mm (1.22
in) |
|
Operating temperature
range: |
-40 to +55°C (-40 to
131°F) |
|
Matching tolerance
(frequency response and sensitivity): |
±1 dB (40 Hz – 20
kHz) |
|
Current consumption: |
2.6 mA |
|
Cable
length: |
3 m (9.8 ft) |
|
|
|
|
|
