Sony PMW-F5 CineAlta 4K Camcorder

Home > Sony > XDCAM > PMW-F5

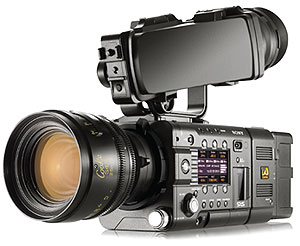

  • Sony PMW-F5 Cine Alta 4K Camcorder
    Product Code: PMWF5

    Discontinued
    review butoon
    facebook sharegoogle share


  • Features
    - Super 35mm equivalent 4K single-chip CMOS sensor
    - 16-bit RAW 2K/4K recording options with bolt-on AXS-R5 recorder.
    - Choice of HD/2K internal recording formats
    - Next generation high-speed SxS PRO+ memory cards
    - Simultaneous RAW and onboard camera SxS recording
    - Real world workflows
    - Vast exposure latitude to 14 f-stops
    - Intuitive one-touch interface




New memory: new firmware
Sony's recording media product line continues to expand with new releases in the SxS and XQD media product categories.

Available from Spring 2017 are SxS Pro+ models SBP-64E, SBP-128E and SBP-256E. Available now are SxS-1 models SBS-64G1C and SBS-128G1C, plus XQD Memory cards QD-G64E, QD-G128E, QD-G256E, QD-M64, QD-M128.

The following cameras and recorders need updated firmware to support the new media. If a product is not listed, there is no need for a firmware update.
https://pro.sony-asia.com/pro/lang/en/sg/article/broadcast-products-camcorder-recording-media-new-memory-new-firmware


Click Here to Downlaod Latest Firmware V7.01
Modifications from V6.02 of F5 :
- Quick Menu has been added for easy changing and checking current status with quick response.
- When the recording format is set to XAVC 4K or XAVC QFHD and the system frequency is set to 50P/59.94P, the MPEG2 HD Proxy recording function is newly available.
- Extended range of zebra pattern.
- Improved image quality when User Gamma is used.
- Response of the status screen has been improved.

Bug Fix :
- When the remote controller was connected via the remote connector and Scene File was recalled from the controller, Gain setting was not applied. This has been fixed.
Note: Please store scene file in dB mode. If you store scene file in ISO mode, gain setting is not applied from the controller.
- In AXS and SxS simultaneous recording mode, sometimes SxS recording kept despite of AXS recording stopped when connection level is not stable between F55/F5 and R5. This has been fixed.

Please note the following :
iOS setting for Wi-Fi Remote :

While using Wi-Fi Remote by iOS devices and Safari, please turn off Private browse function.
Note: Please carefully examine the "Version Up Guide for PMW-F55 and F5" file.



PMW-F5: OVERVIEW
Sony 4K sensor for gorgeous, super-sampled HD and 2K
The Sony PMW-F5 CineAlta camera shoots spectacular images with its 8.9 megapixels (effective) Sony 4K image sensor. You get superior, super-sampled pictures with noticeably higher contrast, rich colour reproduction and greater clarity. The camera offers robust built-in recording modes, all with vibrant 4:2:2 colour. Irresistible options include the amazing precision of 16-bit linear RAW 2K/4K recording and high speed shooting at up to 120 fps without cropping.

Multiple recording formats includes HD/2K on SxS memory and 16-bit RAW 2K/4K on AXSM media
Sony PMW-F5 Multiple recording formats include MPEG-2 HD422, MPEG4 SStP*, XAVC 2K*/HD and 16-bit RAW 2K/4K**. You can have simultaneous recording on internal high-speed SxS PRO+ memory cards and RAW 2K/4K recording on sleek AXSM memory cards using the optional bolt-on AXS-R5 recorder, designed specifically to attach seamlessly to the F55 and F5 cameras. There is also high speed shooting up to120 fps XAVC 2K/HD* internally and 120 fps RAW 2K onto the AXS-R5.

*Expected as a future upgrade.
** Recording onto the optional AXS-R5 recorder.

Lightweight modular design to maximize versatility in 2D and 3D
The Sony PMW-F5 is exceptionally small, light and modular, letting you build up the right configuration for each job - or each shot. As well as the choice of formats and internal and external recording options, you can attached a variety of viewfinders, including the revolutionary optional DVF-EL100 OLED viewfinder, PL-mount, FZ-mount and still lenses, including second-generation Sony PL-mount lenses, and extra long-life Olivine - Lithium Iron Phosphate - batteries. The chassis is only slightly wider than a typical PL-mount prime lens, perfect for 3D rigs. An optional shoulder rig provides for hand-held and shoulder-mounted shooting.



FEATURES
Super 35mm equivalent 4K single-chip CMOS sensor
Sony PMW-F5  4K image sensor enables a single camera to provide gorgeous, super-sampled HD and 2K while preparing you for the 4K future. With 11.6 megapixels (total) and 8.9 megapixels (effective), the Sony 4K CMOS sensor captures a true 4K 4096 x 2160 DCI-standard cinema image.

16-bit RAW 2K/4K recording options with bolt-on AXS-R5 recorder
Sony PMW-F5 Capture RAW at your choice of resolutions: the camera's native 4K or beautiful, derived 2K. RAW recording preserves the greatest latitude for colour correction and other post processes. Sony's 16-bit recording captures more tonal values than the human eye can differentiate. Sony RAW retains 16 times as many Red, Green and Blue gradations as 12-bit RAW and 64 times as many tones per channel as 10-bit recording. Sony's 16-bit linear RAW is also the ideal point of entry into the 16-bit linear Academy Color Encoding System (ACES) workflow.

AXS-R5 records onto ASXM memory cards
The Sony PMW-F5  bolt-on AXS-R5 recorder records onto high-capacity AXSM memory cards, which are compatible with an affordable optional USB 3.0 reader, the AXS-CR1. Once on a PC, the RAW files can be screened using Sony's free RAW Viewer software. AXSM memory provides a super fast, affordable format for sensational quality recordings.

Choice of HD/2K internal recording formats
The Sony PMW-F5 CineAlta camera allows you a choice of internal recording formats in addition to 16-bit RAW 2K/4K recording output onto the AXS-R5. The camera incorporates high-speed SxS PRO+ memory card recording that allows the choice of: 8-bit MPEG-2 HD422, 50Mbps; 10-bit XAVC 2K*/HD 100Mbps; and SR Codec 10-bit MPEG4 SStP 220, 440 and 880Mbps*. All formats can be recorded at a range of interlace and progressive frame rates (see camera specifications for precise details).

*Expected as a future upgrade.

High speed shooting up to 120 fps 2K internally and 120 fps 2K RAW with optional AXS-R5 recorder
The Sony PMW-F5 features high-data-rate on-board XAVC HD recordings up to 60 fps with a free planned upgrade to XAVC 2K/HD recording at 120 fps. It also offers 120 fps 2K RAW with the optional AXS-R5 outboard recorder and a planned upgrade, achieving the high frame rates, while retaining exceptional, 16-bit image quality.

Next generation high-speed SxS PRO+ memory cards
The Sony PMW-F5 records internally onto SxS memory. High-speed shooting and the highest quality recording options require next-generation SxS recording media - Sony's 64 GB* SxS PRO+ memory card - which can be read by the next-generation USB card reader, the SBAC-US20.

* 1 GB equals one billion bytes, a portion of which is used for data management functions.

Simultaneous RAW and onboard camera SxS recording
Sony PMW-F5  provides a coordinated "off-line, on-line" workflow with simultaneous recording to internal SxS cards and the optional AXS-R5 RAW recorder. For seamless conforming in post, you get matching time code, start frame, stop frame, file names and other metadata. The camera supports the following RAW + Onboard combinations: RAW 4K/2K + XAVC 2K*/HD and RAW 4K/2K + MPEG-2 HD422.

* Expected as a future upgrade.

Real world workflows
Sony PMW-F5 understands a fundamental truth: working cameras require practical workflows. That's why the Sony PMW-F5 is part of a larger production platform that includes affordable media cards, affordable card readers, free RAW Viewer software and compatibility with popular NLEs and finishing tools.

Vast exposure latitude to 14 f-stops
The Sony PMW-F5 ability to render tones from deepest shadows to brightest highlights is a crucial test of any digital camera. The Sony PMW-F5 excels, with an impressive 14 stops of exposure latitude, extraordinary low-light sensitivity and extremely low noise in the blacks.

Choice of viewfinders includes amazing OLED technology
A digital interface on the Sony PMW-F5 allows for a variety of optional viewfinders, including the DVF-EL100.This 0.7-inch* viewfinder has the incredible clarity of 1280 x 720 High Definition, plus superb OLED brightness, contrast and response. The DVF-L350 3.5-inch* LCD viewfinder has higher resolution (960 x 540) than previous Sony viewfinders, plus ten times the contrast. And the eyepiece flips up for direct monitoring. The DVF-L700 compact 7-inch* LCD view finder enables high resolution when shooting in 2K and 4K, not to mention pixel-for-pixel 1920 x 1080 representation of your HD images.
*Viewable area, measured diagonally.

Optional shoulder rig
The optional Sony shoulder rig provides comfortable handheld operation, hour after hour. The rig is sturdy, lightweight and features industry-standard rosettes on both sides for quick and easy attachment of third-party hand grips and other accessories.

Small lightweight design for added versatility in 3D
The small size of the Sony PMW-F5 is particularly welcome in stereoscopic 3D shooting. The chassis is only slightly wider than a typical PL mount prime lens, perfect for both mirror rigs and side-by-side configurations.

Incredible flexibility with the choice of PL-mount, FZ-mount and still lenses
The Sony PMW-F5 is designed to accommodate PL-mount, FZ-mount and still lenses. With the PL-mount adaptor, you can take advantage of acclaimed cine optics from Angénieux, Canon, Carl Zeiss, Cooke, FUJIFILM, Leica and more. Slip off the supplied PL-mount adaptor to reveal the native FZ mount with 18 mm flange focal distance. It's perfect for accepting commercially available adaptors for still lenses, including Canon EF, Canon FD, Nikon DX, Nikon G, Leica M and even 2/3-inch broadcast B4 lenses. There's also Sony's game-changing FZ-mount auto focus servo zoom: the SCL-Z18X140.

A new generation of Sony PL-mount lenses
The Sony PMW-F5 works with Sony's second generation, cost-effective PL mount prime lenses. Thanks to refined glass, all are certified for 4K capture, while minimizing geometric distortion, vignetting and breathing. A 9-blade iris delivers beautiful bokehs. The focus rings rotate 240°. The series includes focal lengths of 20, 25, 35, 50, 85 and 135 mm. For easy lens changes, all have the same T2.0 aperture, the same external diameter, matte box diameter, and gear locations for follow focus and aperture. All are the same size except for the 135 mm.

Intuitive one-touch interface
Carefully designed with significant input from cinematographers, the Sony PMW-F5 provides an incredibly rich range of controls. And the interface is nicely intuitive. Instead of diving through menus, you get direct, one-touch access to key shooting parameters including frame rate, shutter speed, colour temperature, ISO sensitivity and gamma. Assignable buttons mean that favorite adjustments are always at your fingertips.

Wide choice of connections
The Sony PMW-F5 camera offers numerous connections to suit your workflow, including four HD-SDI jacks, HDMI, USB, DC in connection, a removable XLR audio module and a removable time code/genlock module. The XLR inputs accept balanced analogue signals, provide 48-Volt phantom power and will accept four channels of AES/EBU digital audio with an expected firmware upgrade.

Long-life Olivine battery and quick charger
The Sony PMW-F5 takes advantage of Sony's innovative BP-FL75 battery pack, which uses Olivine - Lithium Iron Phosphate - instead of conventional Lithium Ion cathodes. The result is a substantial increase in charge-discharge cycles, compared to previous Sony batteries. The Olivine battery works with Sony's BC-L90 quick charger. The camera is also compatible with Sony's BP-GL95A, GL65A, L80S and L60S batteries, which use the BC-L70 and L160 chargers.



SPECIFICATIONS

General

Mass Approx. 2.2 kg (without lens, handle, audio box and accessories)
Approx. 4 lb 14 oz (without lens, handle, audio box and accessories)
Dimensions (W x H x D) * 151 x 189 x 210 mm (without protrusions)
7 1/8 x 7 7/8 x 12 1/4 inches (without protrusions)
Power Requirements DC 12 V (11 V to 17.0 V)
Power Consumption Approx. 25 W (while recording XAVC 4K 60p, EVF Off, LCD monitor Off, 4K SDI On)
Operating Temperature 0°C to 40°C
32
°F to 104°F
Storage Temperature -20°C to +60°C
-4
°F to +140°F
Battery Operating Time Approx. 150 min with (BP-FL75), Approx. 210 min with (BP-GL95A)
Recording Format (Video) MPEG-2 Long GOP/HD 422 mode: CBR, 50 Mbps max/MPEG-2 422P@HL
Recording Format (Audio) Linear PCM (2 ch, 24-bit, 48-kHz)
Recording Frame Rate XAVC 4K: 4096 x 2160, 23.98p/25p/29.97p/50p/59.94p
XAVC QFHD: 3840 x 2160, 23.98p/25p/29.97p/50p/59.94p
XAVC 2K: 2048 x 1920, 23.98p/24p/25p/29.97p/50p/59.94p
XAVC HD: 1920x1080, 23.98p/25p/29.97p/50p/59.94p
MPEG4 SStP: 1920 x 1080, 23.98p/24p/25p/29.97p
MPEG2 HD: 1920x1080, 50i/59.94i/23.98p/25p/29.97p
MPEG2 HD: 1280 x 720, 50p/59.94p

Camera Section

Imaging Device (Type) Super 35mm equivalent Single-chip CMOS with Frame Image Scan technology
Imaging Device (Pixel Count) 11.6M (total), 8.9M (effective)
Built-in Filters Clear, 0.9 (1/8ND), 1.8 (1/64ND)
Sensitivity (2000 lx, 89.9% Reflectance) Video Gamma: T11@24p (3200K light source)
ISO Sensitivity S-Log2 Gamma: ISO 1250 (D55 Light source)
Lens Mount PL mount (with supplied lens mount adapter)
Flange Focal Length FZ mount (without supplied lens mount adapter)
Latitude 14-stop
S/N Ratio 57dB (Video Gamma, 24p, Noise Suppression OFF)
Shutter Speed 1/24s to 1/6,000s
Shutter Angle 4.2°to 360°(electrical shutter)
Slow Shutter (SLS) 2, 3, 4, 5, 6, 7, and 8-frame accumulation
Slow & Quick Motion Function XAVC 4K/QFHD: 1-60p (NTSC)
XAVC 4K/QFHD: 1-50p (PAL)
XAVC HD/2K: 1-180p (NTSC), 23.98p/29.97p w/ Option
XAVC HD/2K: 1-150p (PAL), 25p w/ Option
XAVC HD: 1-60p (NTSC)
XAVC HD: 1-50p (PAL)
White Balance Preset (3200K, 4300K, 5500K), Memory, ATW
Gain  -3, 0, 3, 6, 9, 12, 18 dB, AGC
Gamma Curve Standard (x6) HG1, HG2, HG3, HG4, HG7 and HG8; S-Log2 Gamma

Input/Output

Audio Input CH-1/CH-2: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48V/AES/EBU selectable
Video Input HD-Y or HD Sync (tri-level) V1.0
Analog Composit (VUP)
Audio Output Phono jack (CH-1, CH-2)
DC Output 4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter
HD-SDI Output HD mode: SDI 1/2 Line Output, SDI 3/4 Monitor Output (character on/off)
4K mode: SDI 1/2/3/4 Line Output (character on/off), HD-SDI/3G-SDI switchable
Timecode Input/Output TC IN/OUT (x1) switchable
USB USB device, Mini-B (x1)
USB host, type-A (x1)
Headphone Output Stereo mini jack (x1)
Speaker Output Monaural
Shutter BNC (x1)
Wi-Fi USB host, type-A (x1)

Media

Type ExpressCard/34 slot (x2)
SD card slot (x1)
SUPPLIED ACCESSORIES
- Lens mount adapter x1
-
Battery adapter x1
-
Audio input connector x1
-
Screws for the audio input connector x4
-
Tape measure hook x1
-
USB wireless LAN module IFU-WLM3(#4) x1
-
Operating Instructions (CD-ROM) x1


Recording Time in XDCAM

File systems Mode Setting SXS-1 SxS PRO SxS PRO +
SBS-64G1A SBS-32G1A SBP-64A SBP-64B SBP-128B
FAT
(MP4/AVI)
HQ - 35Mbps 200 min 100 min 200 min 200 min 400 min
SP - 25Mbps 280 min 140 min 280 min 280 min 560 min
DVCAM - 25MBbps 260 min 130 min 260 min 260 min 520 min
UDF
(MXF)
HD422- 50Mbps 120 min 60 min 120 min  120 min 240 min
HD422 HQ-35Mbps 180 min 90 min 180 min 180 min 360 min
IMX - 50Mbps 120 min 60 min 120 min 120 min 240 min
DVCAM - 25Mbps 220 min 110 min 220 min 220 min 440 min

Expandore-Panasonic

Optional Accessories

Recommended Microphone

Panasonic AG-AF101
Sennheiser ME66+K6

ME 66 Short gun Microphone Head + K6 Powering Module for Batter/Phantom Powering

ME 66 Short gun Microphone Head


Optional Accessories
For Sony PMW-F5 and PMW-F55
SCL-PK3/M SCL-PK3/F SCL-PK6/M SCL-PK6/F SCL-P11X15
Sony SCL-PK3/M Sony SCL-PK3/F Sony SCL-PK6/M Sony SCL-PK6/F Sony SCL-P11X15
CineAlta 4K PL mount lens pack x3 (metric)
Pack of 20mm, 25mm and 135mm lenses with metric calibrations
CineAlta 4K PL mount lens pack x3 (feet)
Pack of 20mm, 25mm and 135mm lenses with calibrations in feet and inches
CineAlta 4K PL mount lens pack x6 (metric)
Pack of 20mm, 25mm, 35mm, 50mm, 85mm and 135mm lenses with metric calibrations
CineAlta 4K PL mount lens pack x6 (feet)
Pack of 20mm, 25mm, 35mm, 50mm, 85mm and 135mm lenses with calibrations in feet and inches
Wide angle zoom lens for PMW-F series
Buy Sell Sales Sony SCL-PK3/M Buy Sell Sales Sony SCL-PK3/F Buy Sell Sales Sony SCL-PK6/M Buy Sell Sales Sony SCL-PK6/F Buy Sell Sales Sony SCL-P11X15
CBK-DCB01 BC-L90 BP-FL75 DVF-EL100 DVF-L350
Sony CBK-DCB01 Sony BC-L90 Sony BP-FL75 Sony DVF-EL100 Sony DVF-L350
Remote control unit for PMW-F55, PMW-F5, PMW-F3, PMW-320, PMW-350, PMW-500, PMW-EX3* High speed battery charger for BP-FL75 and V-Mount batteries Olivine long-lasting battery for F-series cameras. Perfect integration with PMW-F55 and PMW-F5 cameras OLED 0.7-inch colour HD digital viewfinder for CineAlta cameras LCD 3.5-inch colour HD digital viewfinder for CineAlta cameras
Buy Sell Sales Sony CBK-DCB01 Buy Sell Sales Sony BC-L90 Buy Sell Sales Sony BP-FL75 Buy Sell Sales Sony DVF-EL100 Buy Sell Sales Sony DVF-L350
DVF-L700 AXS-R5 AXSA512S24 AXSA1TS24 AXS-512S24
Sony DVF-L700 Sony AXS-R5 CineAlta 4K PL mount lens CineAlta 4K PL mount lens Sony AXS-512S24
LCD 7-inch colour full HD digital viewfinder  for CineAlta cameras 2K/4K external 16bit RAW recorder for PMW-F5 and PMW-F55 using AXS memory card. A-Series 512GB AXS Memory card for
AXS-R5 RAW recording system.
*Includes adapter for use with
AXS-R5 and AXS-CR1
A-Series, 1TB capacity, AXS Memory card for use with AXS-R5 RAW recording system.
*Includes adapter for use with
AXS-R5 and AXS-CR1
AXS Memory card, 512 GB capacity and 2.4 Gbps guaranteed write speed
Buy Sell Sales Sony DVF-L700 Buy Sell Sales Sony AXS-R5 Buy Sell Sales Sony AXSA512S24 Buy Sell Sales Sony AXSA1TS24 Buy Sell Sales Sony AXS-512S24
AXS-CR1
Sony AXS-CR1
Compact card reader for AXS media
Buy Sell Sales Sony AXS-CR1
