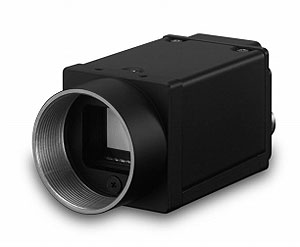

Sony XCG-CG510C Color Digital Video Camera Module

Product Code: XCGCG510C

Sony XCG-CG510C Camera Module
review button

Features
• High frame rate
• IEEE1588 compliant
• Area Gain
• Image Flip
• Shading Correction
• Defect correction
• 3 x 3 filter
• Temperature Readout
• Trigger Range Limit
• Special Trigger modes (Bulk trigger/Sequential trigger)
• GigE Version 2.0/1.2

The XCG-CG510 and XCG-CG510C are the latest digital cameras from Sony to incorporate Global Shutter CMOS sensor technology. The cameras provide Image processing capabilities that satisfy the requirements of high reliability, high speed and high sensitivity in applications such as machine vision.

Camera
Image Type Color
Image Size 5.1 Mega
Image sensor 2/3-type Global Shutter CMOS Sensor
No. of effective pixels (H x V) 2464 x 2056
Standard output pixels (H x V) 2448 x 2048
Color filter RGB color mosaic filter
Frame rate 23 fps (8 bit)
Minimum Illumination 10lx
(Iris: F1.4, Gain: +18dB, Shutter: 1/23s)
Sensitivity F8 (2000 lx, Gain: 0 dB, Shutter: 1/23s)
SNR More thatn 50 dB (Lens close, Gain:0 dB, 8 bits)
Gain Auto, Manual: 0 dB to 18 dB
Shutter speed Auto, Maual: 60 to 1/100,000 s
White balance Manual, One push, Auto
Camera Features
Readout modes Normal, Partial scan
Readout features LUT (Binarization, Gamma (arbitary setting), Test pattern
Synchronization Hardware trigger, Software trigger, PTP (IEEE1588)
Trigger modes OFF (Free run), ON (Trigger edge detection, Trigger width detection), Special trigger (Bulk/Sequential)
User Set/ Memory channel 16 channels
User memory  64 bytes x 16ch
Partial Scan 16 to 2464 (W)
16 to 2056 (H)
GPO EXPOSURE / Strobe / Sensor readout / Trigger through / Pulse generation signal / USer definition 1, 2, 3 (Selectable)
Other features  Area gain, Shading correction, Defect correction, Temperature readout, LUT, 3 x 3 filter
Interface
Video data output digital Raw 8, 10, 12 bit (default setting Raw 8 bits)
RGB, YUV422, YUV444
Digital Interface Gigabit Ethernet (1000BASE-T/100BASE-TX)
Camera specification GigE Vision Version2.0, 1.2
Output data clock -
Digital I/O ISO IN (x1),  TTL IN/OUT (x2, selectable)
General
Lens mount C-mount
Flange focal length 17.526 mm
Power requirements DC +12V(10.5V to 15.0V), IEEE802.3af (37v to 57v)
Power consumption DC +12V 3.0 W (max)
IEEE802.3af 3.7 W (max)
Operating temperature -5C to +45C
Dimensions 29 x 29 x 42 mm (excluding protrusions)
Weight Approx 65g
Supplied Accessories Lens mount cap (1), Operating Instructions (1)
