Sony FCB-EV9520L Color Block Camera (LVDS Output)

Sony FCB-EV9520L Color Block Camera with LVDS Output

Product Code: FCBEV9520L

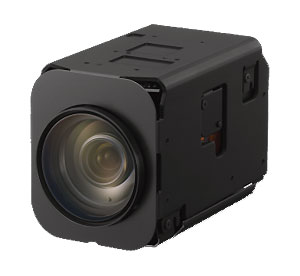

Sony FCB-EV9520L

review button

• Imager: 1/2.8'' 2 MP Starvis 2
• Output: 1080 60p
• WDR: 130 dB
• Optical zoom : 3x0
• H FOV:: 63,7°
• Super image Stabilizer
• Size: 50 x 60 x 89,7 mm

High sensitivity

STARVIS TM 2's image sensor improves visibility under night vision.
Introducing a new cell structure and circuit technology allows for highly efficient use of light, nearly twice as much as the image sensor of previous models (FCB-EV7520 series)* .
This allows you to capture the subject more clearly at night or in a dark room.

*Camera block sensitivity differs from image sensor sensitivity because it is affected by optical systems such as lenses and image sensing processor characteristics.
Please refer to the minimum subject illuminance below for the sensitivity of the camera block.

Minimum subject illuminance (when high sensitivity mode is ON, 1/30 seconds, 50%)
ICR-OFF: 0.009 lx
ICR-ON: 0.00008 lx

*Minimum subject illuminance varies depending on lighting conditions such as light source.

Super image stabilizer

Achieving smooth video even in harsh vibration environments
The shake suppression has been significantly improved compared to the conventional stabilizer function, allowing you to shoot high-definition videos with less blur even in harsh environments with large vibrations.
Equipped with two modes: “Super” and “Super+ (plus)” *.

*Available for full HD or HD output


Easy to replace with the previous 1/2.8-inch model
The same housing size as the previous model (FCB-EV7520 series) makes it easy to replace*. Additionally, the pin assignments for LVDS output are the same, significantly reducing design man-hours.

*The lens position will shift down by about 2mm.

Sensor: 1/2.8'' CMOS

Resolution: FHD (1920x1080)

Video format:1080p

Optical zoom (lens): 30 x

Width: 50

Height: 60

Depth: 89.7

Video output: LVDS

WDR: Yes

FOV: 63.7 °
