| Clear-Com IKB-12P: Overview |
The IKB-12P is a single-channel digital partyline intercom station that has 12 call buttons, a loud alert buzzer, and a rotary
knob for controlling volume and menu navigation. Using a HelixNet HMS-4X main station and the browser-based software configuration tool, up to 64 IKB-12P
intercom stations can be individually controlled and configured using an Ethernet connection. Each call button can be assigned a profile to determine
that button's functionality. If more call buttons are required, an additional 28 can be added via a custom expansion panel for a total of 40 call buttons. An
IKB-12P can be wall-mounted or placed in a dedicated desktop unit.
Operation
Each IKB-12P station is programmed by the browser-based CCM configuration tool
embedded in a HelixNet HMS-4X main station that has been installed with v2.1 software. The HMS-4X with v2.1 connects up to 64 IKB-12P intercom stations using
an HLI-ET2 Ethernet module and Power-over-Ethernet (PoE) switch. When the IKB-12P is connected via the PoE switch, it will display the profile assigned to
the intercom station. Using the IKB-12P's profile setting, the user can assign the functionality of each callbutton on the front panel.
Key Features & Benefits:
- Clear, intelligible digital audio
- Up to 64 Intercom Stations per system
- Configure up to 40 call buttons per station
- Plug-and-go installation with hardware discovery
- Audible and visual call signaling
- Web-browser configuration editor
- IP-65 rating**
|
| Clear-Com IKB-12P - Specifications |
| Connectors |
| Handset: |
4-pin male XLR |
| Ethernet/PoE: |
RJ-45 |
| Microphone Pre-Amplifier |
| Handset Mic Impedance: |
200 Ohms, Dynamic |
| Mic Limiter Range: |
>35dB |
| Mic Gain: |
60dB, Dynamic |
| Frequency Response: |
400Hz – 8kHz, + 3dB (contoured for intelligibility) |
| Distortion: |
<0.5% THD @ 1kHz |
| Noise: |
< -55dBu, Dynamic |
| Earphone Amplifier |
| Load Impedance: |
>32 Ohms Output |
| Level: |
+1 dBu before clipping |
| Sidetone: |
-6dB (selectable) |
| Specified for a route from a 4-wire input @0dBu in: |
| Max Gain: |
12dB Noise: <-65dBu (@ max gain) |
| Headphone Limiter: |
-0dBu, Selectable |
| Power |
| Power Requirements: |
5W DC |
| Voltage Range: |
30 – 60V |
| Ethernet |
| Fast Ethernet Standard: |
100 BaseT only, Auto MDIX |
| Environmental |
| Humidity: |
0 – 95%, relative |
| Temperature: |
-14°F to +131°F (-10°C to +55°C) |
| Dimensions: |
8 in. W x 10 in. H x 3.6 in. D (203mm x 254mm x 93mm) |
| Weight: |
27.9 oz (0.79 KG) |
|
|
-

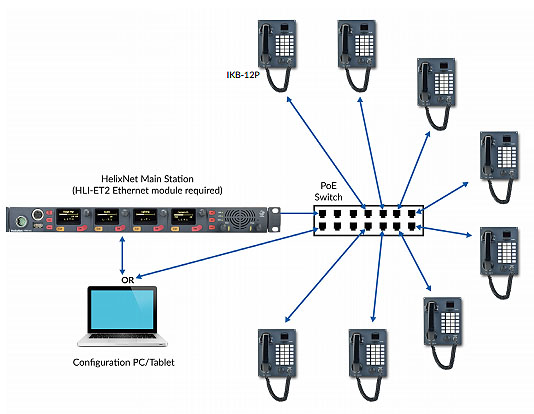

Industrial intercom Station Network
 |
|
|
|
