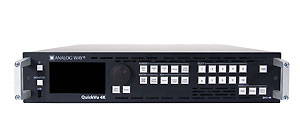

Analog Way QuickVu 4K 4K60 Multi-layer Video Mixer & Presentation Switcher

Analog Way QuickVu 4K 4K60 video mixer and seamless presentation switcher, with ten inputs, one PGM output, one AUX output and one dedicated Multiviewer

Versatile 4K Connectivity

The QuickVu 4K is a powerful 4K60 mixer and seamless presentation switcher equipped with ten inputs, including eight 4K60 inputs and two 1080p inputs with user-selectable HDMI and 3G-SDI connectors. The QuickVu 4K offers one 4K60 Program output and one AUX output, both with mirrored HDMI and SDI connectors. In addition, the QuickVu 4K has a dedicated multiviewer to monitor your Program and Preview screens as well as all your inputs.

Quality without Compromise

Based on the extremely robust and reliable Midra™ 4K platform as well as on the 5th generation scaling engine inherited from the LivePremier™ series, the QuickVu 4K features ultra-low latency 4K60 10-bit 4:4:4 image processing, uncompromising video quality, true seamless switching, HDR support and HDCP 2.2 compatibility, which makes it an ideal solution for your medium-sized live events and fixed installations.

Smart Functionalities

The QuickVu 4K offer dozens of powerful functionalities tha will help you to produce elegant AV presentations: custom output formats, livestreaming of any Input or Output, AOI, Luma/Chroma keying, HFR up to 144Hz… It also allows to deembed or embed digital audio on all the inputs and outputs. An audio option is available to add Dante™ 32x32 audio networking support to the QuickVu 4K.

Powerful and Flexible Control Options

The QuickVu 4K has been designed to be entirely operated from the easyto-use front panel. You can also use the on-board intuitive HTML5-based user interface, the Web RCS, designed to allow for the ease of setup and to ensure flawless control of your presentations. The QuickVu 4K also features Ethernet control via a standard TCP/IP socket connection supported by all major third-party control systems as well as SNMP management. The QuickVu 4K can also be controlled by the free Crestron driver as well as by AW VideoCompositor, a unique drag and drop customizable Crestron user interface. Additionally, the QuickVu 4K can be operated by a comprehensive range of remote control panel options such as the powerful event controller RC400T or the compact Control Box2 and Shot Box3 . The QuickVu 4K is also compatible with various control software or controller such as Universe, Companion or SKAARHOJ Air Fly Pro.

• 1x Power supply cord
• 1x Remote Control Software (Web RCS)
• 1x Rackmount kit
• 1x Ethernet cross-cable
• 1x User Manual (pdf)
• 1x Quick Start Guide including safety instructions
