Sony PMW-F55 CineAlta 4K Camcorder
| Home > Sony > XDCAM > PMW-F55
Product Code: PMWF55
Click Here to Downlaod Latest Firmware V7.01
Modifications from V6.02 of F55 :
- Quick Menu has been added for easy changing and checking current status with quick response.
- When the recording format is set to XAVC 4K or XAVC QFHD and the system frequency is set to 50P/59.94P, the MPEG2 HD Proxy recording function is newly available.
- ITU-R BT.2020 color space in Custom mode (PMW-F55 only).
- Extended range of zebra pattern.
- Improved image quality when User Gamma is used.
- Response of the status screen has been improved.
Bug Fix :
- When the remote controller was connected via the remote connector and Scene File was recalled from the controller, Gain setting was not applied. This has been fixed.
Note: Please store scene file in dB mode. If you store scene file in ISO mode, gain setting is not applied from the controller.
- In AXS and SxS simultaneous recording mode, sometimes SxS recording kept despite of AXS recording stopped when connection level is not stable between F55/F5 and R5. This has been fixed.
Please note the following :
iOS setting for Wi-Fi Remote :
While using Wi-Fi Remote by iOS devices and Safari, please turn off Private browse function.
Note: Please carefully examine the "Version Up Guide for PMW-F55 and F5" file.
Sony USB SXS card
|PMW F55: Overview
Sony 4K sensor for gorgeous, super-sampled HD, 2K and 4K
The PMW-F55 CineAlta camera shoots spectacular images with its 8.9 megapixels (effective) Sony 4K image sensor. You get superb dynamic range, the widest colour gamut, and pristine image quality, whether you shoot in HD, 2K or 4K.
Multiple recording formats includes HD/2K/4K on SxS memory and 16-bit RAW 2K/4K on AXSM™ media
Multiple recording formats include MPEG-2 HD422, MPEG4 SStP*, XAVC 2K*/HD, XAVC QFHD*/4K and 16-bit RAW 2K/4K**. You can have simultaneous recording on internal high-speed SxS PRO+ memory cards
and RAW 2K/4K recording on sleek AXSM™ memory cards using the optional bolt-on AXS-R5 recorder, designed specifically to attach seamlessly to the F55 and F5 cameras. There is also high speed
shooting up to 240 fps RAW 2K and 60 fps in RAW 4K recording onto the AXS-R5.
*Expected as a future upgrade.
** Recording onto the optional AXS-R5 recorder.

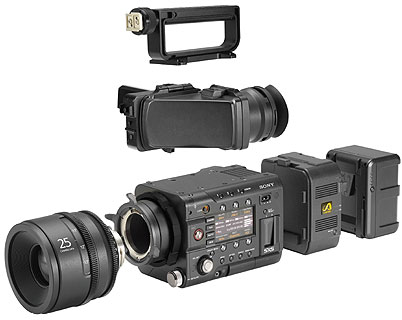

Lightweight modular design to maximise versatility in 2D and 3D
The F55 is exceptionally small, light and modular, letting you build up the right configuration for each job - or each shot. As well as the choice of formats and internal and external recording
options, you can attach a variety of viewfinders, including the revolutionary optional DVF-EL100 OLED viewfinder, PL-mount, FZ-mount and still lenses, including second-generation Sony
PL-mount lenses, and extra long-life Olivine - Lithium Iron Phosphate - batteries. The chassis is only slightly wider than a typical PL-mount prime lens, perfect for 3D rigs. An optional
shoulder rig provides for hand-held and shoulder-mounted shooting.
Shoot spectacular HD, 2K or 4K
Does a 4K camera make sense in an HD world? Perfect sense. With 8.9 megapixels
(effective), Sony's new 4K image sensor enables a single camera to provide gorgeous, super-sampled HD and 2K while preparing you for the 4K future.
■ Shoot, Record, Master and Distribute in stunning 4K. You're ready for the more than 13,000 movie theaters with Sony Digital Cinema 4K projectors.
■ Shoot, Record and Master in 4K. Distribute in 2K/HD. Derive your delivery format while preserving the original as a future-proof archive. Your master is
ready for future 4K release.
■ Shoot in 4K. Record, Master and Distribute in 2K/HD. Sony's 4K sensor gives you a gorgeous, super-sampled HD picture with visibly superior texture, color
reproduction, detail and high-frequency contrast that ordinary HD cameras cannot touch.
4K/2K RAW recording option
The ultimate capture system would record every nuance of light and shadow from the image sensor, preserving every detail from every pixel for full exploitation in post-production. If you want the
maximum flexibility that RAW delivers, Sony's optional AXS-R5 recorder is a remarkable new choice.
■ 4K or derived 2K RAW. Capture RAW at your choice of resolutions: the camera's native 4K or beautiful, derived 2K. RAW recording preserves the greatest
latitude for color correction and other post processes.
■ Incredible 16-bit precision. By design, Sony's 16-bit recording captures more
tonal values than the human eye can differentiate. Sony RAW retains 16 times as many Red, Green and Blue gradations as 12-bit RAW and 64 times as many tones per channel as 10-bit recording. Sony 16-bit
linear RAW is also the ideal point of entry into the 16-bit linear Academy Color Encoding System (ACES) workflow.
Sony's USB 3.0 card reader, the AXS-CR1
The camera is highly modular, a major advantage
whenever size and weight are primary concerns
|■ Comprehensive production platform. More than an individual product, the AXS-R5 is the
starting point for an efficient workflow. The AXS-R5 records onto sleek, optional AXSM™ memory cards, which are compatible with an affordable optional USB 3.0 reader, the AXS-CR1. Once on a PC,
the RAW files can be screened using Sony's free RAW Viewer software.
■ Simultaneous RAW + Onboard SxS recording. Instead of requiring you to patch together a science project, Sony provides a coordinated "off-line, on-line" workflow
with simultaneous recording to internal SxS cards and the optional AXS-R5 RAW recorder. For seamless conforming in post, you get matching time code, start frame, stop frame, file names and other
metadata. The camera supports the following RAW + Onboard combinations:
- 4K/2K RAW + XAVC 2K*/HD
- 4K/2K RAW + MPEG-2 HD422
- 2K RAW + XAVC 2K*
* Expected as future upgrade
The future is built in
The Sony F55 is uniquely designed to make economic sense today, with the features you'll need to continue generating value for
years to come. Instead of locking you into a single recording system, the camera opens the door to unprecedented versatility. Consider the enormous flexibility of internal recording codecs and
the choice of HD, 2K*, QFHD* and 4K resolutions. The camera's 16-bit Linear RAW 4K output enables Sony's optional AXS-R5 recorder to register every nuance of color, contrast and detail from the 4K
image sensor-and even record a derived 2K RAW signal. Finally, Sony's planned firmware upgrades are scheduled to bring you even more frame rates, more operating features and more recording
options in the months and years to come.
Revolutionary electronic global shutter
The traditional CMOS image sensor uses a "rolling" shutter that can result in images with unwanted distortions like motion skew and flash banding. That can be annoying, especially when shooting
visual effects or 3D. Anything but typical, the F55 sensor incorporates electronic global shutter. Rolling shutter distortions aren't minimized, they're completely eliminated.
Vast exposure latitude
Cinematographers paint their images with light and shadow. So the
ability to render tones from deepest shadows to brightest highlights is a crucial test of any digital camera. The F55 excels, with an impressive 14 stops of exposure latitude, extraordinary
low-light sensitivity and extremely low noise in the blacks. The result? Graceful rendering of scene contrast, even in searing sunlight.
Ultra wide color gamut
Sony believes that your camera should not limit your color palette. That's why the F55 incorporates the same advanced color filter array technology as used in Sony's flagship F65, which is equipped
with the industry's only 8K sensor.* You get a color gamut that's not only wider than other digital cameras. It's even wider than motion picture print film.
Viewfinders as revolutionary as the camera
It's ironic that with focus so critical, most operators are stuck with viewfinders and on-camera monitors that offer middling
contrast and resolution. Sony changes all that with the F55. A new digital interface has given rise to a brilliant new series of viewfinders.
■ Amazing OLED:optional DVF-EL100. Don't let the small size fool you. This 0.7-inch* viewfinder has the incredible clarity of 1280 x
720 High Definition. And resolution is just the beginning. Thanks to OLED technology, you get superb brightness, contrast and response.
■ Higher resolution, higher contrast: optional DVF-L350. Take a major step forward in operating with the incredible image of this
3.5-inch* LCD viewfinder. Compared to previous Sony viewfinders, this one has higher resolution (960 x 540) plus ten times the contrast. And the eyepiece flips up for direct monitoring.
■ Full HD:optional DVF-L700. This compact 7-inch* LCD viewfinder enables high resolution when
shooting in 2K and 4K, not to mention pixel-for-pixel 1920 x 1080 representation of your HD images
Optional shoulder rig
Sony consulted closely with cinematographers on the ergonomics of handheld and shoulder-mounted shooting. One result was the optional
Sony shoulder rig, which provides comfortable handheld operation hour after hour. The rig is sturdy, lightweight and features industry-standard rosettes on both sides for quick and easy
attachment of third-party hand grips and other accessories.
Modularity and versatility
The F55 is exceptionally small, light and modular, letting you build up the right configuration for each job-or each shot. For example, you can add the optional AXS-R5 RAW recorder whenever you
need it. Or go with internal 4K recording whenever size and weight are the highest priority. The time code/genlock connections and XLR audio inputs are built into two modules you can add or remove as
needed. Small size is particularly welcome in stereoscopic 3D shooting. The chassis is only slightly wider than a typical PL mount prime lens, perfect for both mirror rigs and side-by-side
Choice of recording formats
When it comes to production, one recording mode emphatically does
not fit all. That's why the F55 gives you not one, but four useful recording formats. All four are recorded internally, onto Sony's established, affordable SxS media.
||Bit at 30 fps
||The de facto standard for television production. The 50 Mbps 4:2:2 codec is robust with superb pictures and compact files. The
workflow is well established with computationally efficient multi-stream processing and widespread third-party support.
||The next generation of H.264/AVC Intra-frame coding, the XAVC format establishes a cost-efficient system for High Frame Rate HD and
4K/60p production. The algorithm supports the high data rates you'll need beyond HD with superb efficiency and beautiful 10-bit pictures. The XAVC format also delivers the superior efficiency of
multi-pass encoding, more refined bit allocation based on human visual characteristics and superior multi-generation performance.**
||220, 440 Mbps
||As established by the HDCAM-SR system, the SR Codec (MPEG4 SStP) is already a de facto standard for Hollywood production, post production and
program exchange. The F55 will soon* incorporate the same codec that resides on SR tape. Recorded natively as a file, the SR Codec is currently supported by a robust workflow.
||4K can be a data challenge, leading to large files and hight storage costs. Sony tames the gusher throught this brilliant implementation of H.264/AVC
Intra-frame encoding. You get a unique combination of exquisite 4K image quality together with reasonably compact files.
* Expected as a future upgrade
** Compared to previous professional AVC Intra-frame only encoding.
High speed shooting at up to 240 fps in 2K
From stunts and explosions to the fall of a single raindrop, high-speed shooting is a powerful storytelling tool.
■ 60 fps out of the box (XAVC HD at launch; XAVC 4K, QFHD and 2K with a planned upgrade)
■ 180 fps with a planned upgrade (XAVC 2K/HD). Unique to this process, there is no line skipping or sensor windowing. So there's no crop factor, no loss in angle of view.
■ 240 fps 2K RAW, with the optional AXS-R5 outboard recorder and a planned upgrade, achieves the highest frame rates most productions will need, while retaining exceptional, 16-bit image
quality. This not only exceeds 12-bit RAW with 16 times as many Red, Green and Blue gradations. By design, it exceeds the capabilities of human vision!
High-speed SxS PRO+ media cards
The F55 is a next-generation camera, featuring high-data-rate
on-board recording of XAVC 4K today and 180 fps XAVC 2K/HD with a free planned upgrade. This requires next-generation SxS recording media-Sony's 64 and 128 GB* SxS PRO+ memory cards-and a next-generation USB card reader, the SBAC-US20.

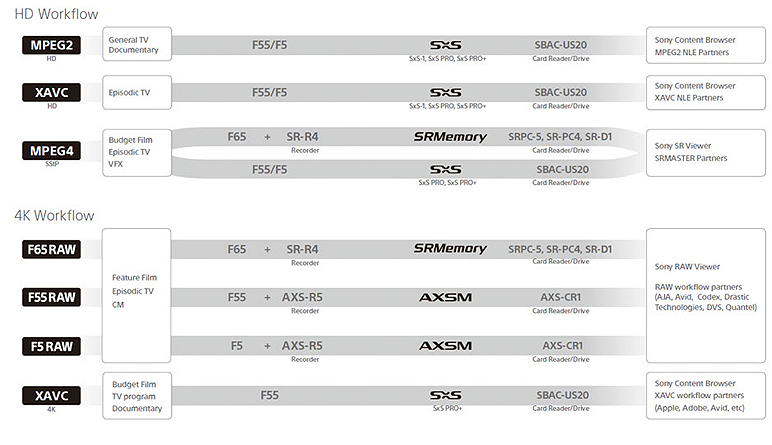

Real world workflows
Sony understands a fundamental truth: working cameras require practical workflows. That's why the F55 is
part of a larger production platform that includes affordable media cards, affordable card readers, free RAW Viewer software and compatibility with popular NLEs and finishing tools.
Incredible flexibility: PL-mount, FZ-mount and still lenses
Some Super 35 digital motion picture cameras are dedicated to PL-mount cine lenses. Other cameras tap the growing trend of shooting with affordable still lenses. The F55 was designed from the ground up to accommodate both.
■ PL-Mount Lenses.Take advantage of acclaimed cine optics from Angénieux®, Canon®, Carl Zeiss®, Cooke®,
FUJIFILM®, Leica® and more.
■ Still Lenses.Slip off the supplied PL-mount adaptor to reveal the native FZ mount with 18 mm flange focal distance. It's perfect
for accepting commercially available adaptors for still lenses, including Canon® EF, Canon FD, Nikon® DX, Nikon G, Leica® M and even 2/3-inch broadcast B4 lenses.
■ FZ-Mount Lenses. There's also Sony's game-changing FZ-mount auto focus servo zoom: the SCL-Z18X140.
Enjoy the convenience of auto focus, auto iris, image stabilization and servo zoom in Super 35 cinematography with Sony's SCL-Z18X140 14x zoom.
Sony ineAlta PL-mount prime lenses: A new generation
With the F55, Sony introduces our second generation of cost-effective PL mount prime lenses, featuring a dramatic improvement in build quality. Thanks to refined glass, all
are certified for 4K capture, while minimizing geometric distortion, vignetting and breathing. A 9-blade iris delivers beautiful bokehs. The focus rings rotate 240°. The series
includes focal lengths of 20, 25, 35, 50, 85 and 135 mm. For easy lens changes, all have the same T2.0 aperture, the same external diameter, matte box diameter, and gear locations for follow focus
and aperture. All are the same size except for the 135 mm.
More than just a pretty interface
Carefully designed with
significant input from cinematographers, the F55 provides an incredibly rich range of controls. And the interface is nicely intuitive. Instead of diving through menus, you get direct,
one-touch access to key shooting parameters including frame rate, shutter speed, color temperature, ISO sensitivity and gamma. Assignable buttons mean that favorite adjustments are always at your fingertips
Real-time 4K output and other vital connections
The camera offers powerful connections,
including real-time 4K output, up to 60p, to a compatible monitor. It's made possible by four 3G-SDI outputs. There's also HDMI®, USB, DC in connection, a removable XLR audio module and a removable
time code/genlock module. The XLR inputs accept balanced analog signals, provide 48-Volt phantom power and will accept four channels of AES/EBU digital audio with an expected firmware upgrade.
Long-life Olivine Battery
The F55 takes advantage of Sony's innovative BP-FL75 battery pack, which uses
Olivine-Lithium Iron Phosphate-instead of conventional Lithium Ion cathodes. The result is a substantial increase in charge-discharge cycles, compared to previous Sony batteries.
The Olivine battery works with Sony's BC-L90 quick charger
||Approx. 2.2 kg (Camera only)
|Dimensions (W x H x D) *
||151 x 189 x 210 mm (without protrusions)
||DC 12 V (11 V to 17.0 V)
||Approx. 25 W (While Recording XAVC 4K 60p, EVF Off, LCD monitor Off, 4K SDI On)
||0°C to 40°C
||-20°C to +60°C
|Battery Operating Time
||Approx. 150 min with (BP-FL75), Approx. 210 min with (BP-GL95A)
|Recording Format (Video)
||MPEG-2 Long GOP/HD 422 mode: CBR, 50 Mbps max/MPEG-2 422P@HL
|Recording Format (Audio)
||Linear PCM (2 ch, 24-bit, 48-kHz)
|Recording Frame Rate (XAVC 4K)
||4096 x 2160, 23.98p/25p/29.97p/50p/59.94p
|Recording Frame Rate (QFHD)
||3840 x 2160, 23.98p/25p/29.97p/50p/59.94p
|Recording Frame Rate (XAVC 2K)
||2048 x 1920, 23.98p/24p/25p/29.97p/50p/59.94p
|Recording Frame Rate (XAVC HD)
|Recording Frame Rate (MPEG4 SStp)
||1920 x 1080, 23.98p/24p/25p/29.97p
|Recording Frame Rate (MPEG2 HD)
||1920x1080, 50i/59.94i/23.98p/25p/29.97p; 1280 x 720, 50p/59.94p
|Imaging Device (Type)
||Super 35mm equivalent Single-chip CMOS with Global Shutter
|Imaging Device (Pixel Count)
||11.6M (total), 8.9M (effective)
||Clear, 0.9 (1/8ND), 1.8 (1/64ND)
|Sensitivity (2000 lx, 89.9% Reflectance)
||Video Gamma: T11@24p (3200K light source)
||S-Log2 Gamma: ISO 1250 (D55 Light source)
||PL mount (with supplied lens mount adapter)
|Flange Focal Length
||FZ mount (without supplied lens mount adapter)
||57dB (Video Gamma, 24p, Noise Suppression OFF)
||1/24s to 1/6,000s
||4.2°to 360°(electrical shutter)
|Slow Shutter (SLS)
||2, 3, 4, 5, 6, 7, and 8-frame accumulation
|Slow & Quick Motion Function (XAVC 4K/QFHD)
||1-60p (NTSC), 1-50p (PAL)
|Slow & Quick Motion Function (XAVC HD/2K)
||1-180p (NTSC), 23.98p/29.97p w/ Option; 1-150p (PAL), 25p w/ Option
|Slow & Quick Motion Function (XAVC HD)
||1-60p (NTSC), 1-50p (PAL)
||Preset (3200K, 4300K, 5500K), Memory, ATW
|| -3, 0, 3, 6, 9, 12, 18 dB, AGC
||Standard (x6) HG1, HG2, HG3, HG4, HG7 and HG8; S-Log2 Gamma
||CH-1/CH-2: XLR-type 3-pin (female) (x2), Line/Mic/Mic +48V/AES/EBU selectable
||AV multi connector, NTSC or PAL
||HD-Y or HD Sync (tri-level) V1.0, Analog Composit (VUP)
||Phono jack (CH-1, CH-2)
|HD-SDI Output (HD mode)
||SDI 1/2/3/4 Line Output (character on/off), HD-SDI/3G-SDI switchable
||4-pin (x1), 11 V to 17 V DC (MAX 2.0A) w/ battery adapter
|HD-SDI Output (4K mode)
||SDI 1/2/3/4 Line Output (character on/off), HD-SDI/3G-SDI switchable
|| TC IN/OUT (x1) switchable
- Lens mount adapter x1
-Audio input connector x1
- Screws for the audio
input connector x4
- Tape measure hook x1
wireless LAN module IFU-WLM3 x1
- Operating Instructions (CD-ROM) x1
